Garmin LiveScope XR System: The Next Evolution in Live Scanning Sonar
The Garmin LiveScope XR system represents a major leap forward in real-time sonar imaging, pushing live-scanning technology beyond nearshore and into true open-water applications. Built on Garmin’s proven LiveScope platform, the XR version is engineered for anglers who need more range, more clarity, and more confidence when targeting fish in deeper, wider environments.
What Makes LiveScope XR Different?
At its core, LiveScope XR is still real-time sonar—but with a dramatically extended reach and refined imaging performance. Where earlier systems were optimized mainly for shallow to mid-depth fishing, XR is designed to maintain clarity at distance without sacrificing close-range detail.
The system delivers:
- Real-time live sonar imaging ahead of, below, and around the boat
- Extended range performance for deeper structure and offshore environments
- High-definition target separation for tracking individual fish movements
- Multiple viewing modes (Forward, Down, and Perspective)
This combination allows anglers to interpret underwater activity almost like “live video,” but through sonar data.
Extended Range Built for Open Water
One of the biggest upgrades in the LiveScope XR system is its range capability.
According to Garmin, the system can reach:
- Up to 500 feet in freshwater
- Up to 350 feet in saltwater
That puts XR in a completely different category compared to standard forward-facing sonar systems, making it suitable for coastal fishing, deep structure scanning, and large open-water environments.
How LiveScope XR Works

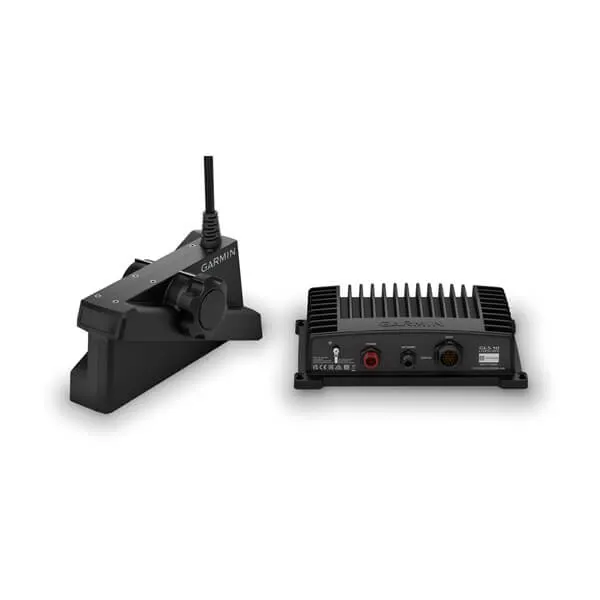

The system uses a dedicated transducer (LVS62) paired with Garmin’s GLS 10 sonar black box processor. Together, they generate a constantly updating sonar image that shows fish movement in real time.
Key technical highlights include:
- Wide beam coverage (approx. 20° x 135°)
- Operating frequency range: 265–550 kHz
- High power output for deeper penetration
- Multi-angle imaging for better spatial awareness
The result is a sonar picture that updates instantly as fish move, react, or interact with bait.
Viewing Modes: Forward, Down, and Perspective
LiveScope XR is flexible enough to adapt to different fishing styles:
Forward Mode
Scan ahead of the boat to locate fish before you reach them—ideal for targeting structure edges and suspended fish.
Down Mode
See directly beneath the boat with high clarity, useful for vertical jigging or precise drops.
Perspective Mode
A unique angled view that provides a wide, shallow-water scan—perfect for flats, grass edges, and scouting.
Each mode is designed to give anglers a different “window” into the water column depending on conditions and strategy.
Image Quality & Target Separation
One of the strongest advantages of the XR system is its clarity at distance. Garmin engineered it to maintain sharp target separation even as range increases, which is often where other systems lose detail.
That means:
- Fish can be tracked individually, not just as blobs
- Lures can be followed in real time
- Structure and bottom transitions remain visible at range
This level of detail is what makes LiveScope XR so effective for both recreational anglers and serious tournament fishermen.
Real-World Impact on Fishing
LiveScope XR doesn’t just improve visibility—it changes decision-making on the water. Anglers can:
- Identify fish behavior instantly
- Adjust lure presentation in real time
- Eliminate unproductive water faster
- Target specific fish instead of relying on guesswork
It doesn’t guarantee bites, but it significantly reduces uncertainty, especially in offshore or low-visibility environments.
Final Thoughts
The Garmin LiveScope XR system is not just an incremental upgrade—it’s a shift toward extended-range, high-definition live sonar that bridges the gap between nearshore and offshore applications.
For anglers who already rely on forward-facing sonar, XR expands what’s possible. For those moving into live sonar for the first time, it sets a very high bar for clarity, range, and usability.
If your fishing style involves covering water, targeting suspended fish, or working offshore structure, LiveScope XR is one of the most capable real-time sonar systems currently available.
