JL Audio
Marine Audio
That Actually
Delivers
If you've spent any time around serious boat audio, you know that most marine speakers are a compromise. They resist the elements well enough, but they sound like you're listening through a wet paper bag. JL Audio has long been the exception to that rule, and the M6 and M7 Series are the clearest proof yet that marine audio doesn't have to mean sacrificing sound quality for survivability.
This is a deep dive into the M6 and M7 lineup — the speakers, the subwoofers, the engineering behind them, and whether they're worth the premium.
The M6 & M7 Lineup
The M6 is JL Audio's flagship marine audio line, built for boaters who want audiophile-grade performance in a fully weatherproof package. The M7 sits above it — a step up in driver size, output capability, and raw engineering ambition for builds where only the best will do.
M6 Series
- 6.5" Coaxial Speaker
- 7.7" Coaxial Speaker
- 8.8" Coaxial Speaker
- 8" Infinite Baffle Subwoofer
- 10" Infinite Baffle Subwoofer
M7 Series
- 12" Infinite Baffle Subwoofer
Every unit in both lineups is engineered to JL Audio's marine grading system, which means they don't just slap a "marine" label on a car audio driver and call it a day.
Build Quality & Weather Resistance
Let's start with what matters most in a marine environment: durability.
The grilles are a stand-out design element. Injection-molded fiberglass composite frames with fully removable, dishwasher-safe stainless grille inserts. They look clean, they're easy to maintain, and unlike cheaper marine grilles, they don't rattle. The M6 subwoofers use a die-cast aluminum chassis — same engineering philosophy JL uses in their legendary W7 series — treated to withstand humidity and spray that would destroy most subwoofer builds within a season.
The M6 Coaxials
| Power Handling | 75W RMS |
| Frequency Response | 55 Hz – 25 kHz |
| Sensitivity | 89.5 dB (1W/1m) |
| Impedance | 4 ohms |
| Power Handling | 100W RMS |
| Frequency Response | 45 Hz – 25 kHz |
| Sensitivity | 91 dB (1W/1m) |
| Impedance | 4 ohms |
| Tweeter | 1" silk dome |
| Power Handling | 125W RMS |
| Frequency Response | 38 Hz – 20 kHz |
| Sensitivity | 90.5 dB (1W/1m) |
| Impedance | 4 ohms |
M6 Subwoofer Performance
Both M6 subwoofers are engineered for infinite baffle installation — no sealed or ported box required. They use the air space behind the mounting surface as their acoustic environment, a clever solution for space-constrained boat builds.
| Power Handling | 200W RMS |
| Free Air Resonance | 54.92 Hz |
| Sensitivity | 86.8 dB (1W/1m) |
| Impedance | 4 ohms |
| Power Handling | 250W RMS |
| Free Air Resonance | 43.76 Hz |
| Sensitivity | 86.1 dB (1W/1m) |
| Impedance | 4 ohms |
The M7-12IB — When the M6 Isn't Enough
The M7 series exists for one reason: some boats and some listeners demand more than even the M6-10IB can deliver. The M7-12IB is JL Audio's answer — a 12" infinite baffle marine subwoofer that brings genuine high-end car audio subwoofer performance to the open water.
The motor structure is built around a long-throw design with a larger magnet assembly, a dual-spider configuration for improved voice coil alignment at high excursion, and a reinforced aluminum basket measurably stiffer and heavier than the M6 series. A monstrous 4-inch voice coil handles sustained high-power output without thermal compression. This isn't incremental improvement — it's a different engineering conversation entirely.

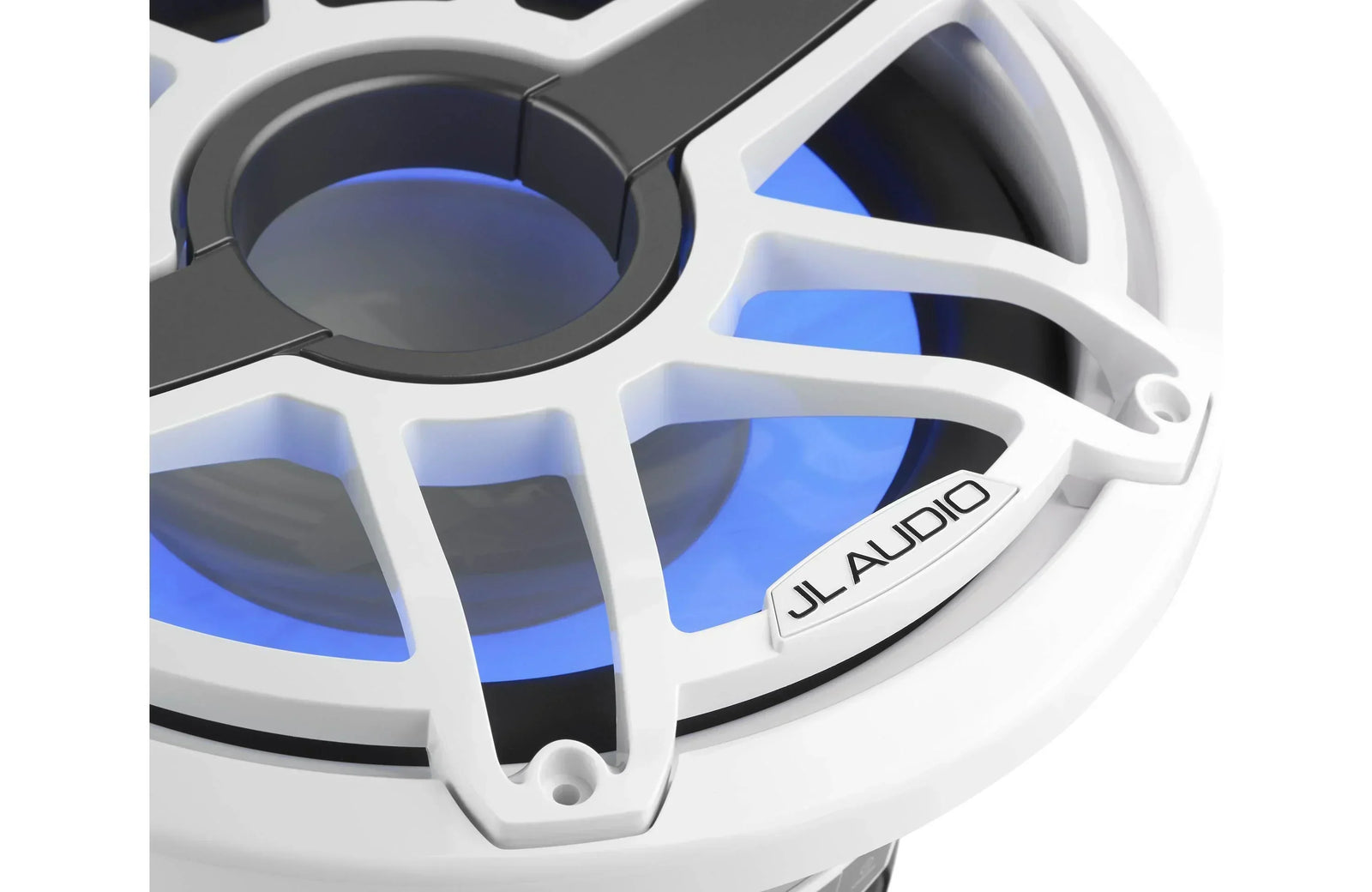

The cone is an injection-molded mica-filled polypropylene unit with a synthetic rubber surround specifically formulated with UV inhibitors — chosen for its combination of rigidity, low mass, and durability in the marine environment. Optional Transflective RGB LED lighting glows through the cone for a visual effect that's genuinely striking at night on the water.
| Power Handling | 600W RMS |
| Frequency Response | 35.34 Hz |
| Sensitivity | 86.7 dB (1W/1m) |
Best applications for the M7-12IB: large pontoons and tritoons, center consoles with a dedicated audio build budget, wakeboard boats where tower speakers are running at high output, and any build where the M6-10IB has already been tried and found wanting.
Installation Considerations
The 8.8" M6-880X has a deeper motor structure than the smaller coaxials — confirm adequate clearance behind the mounting surface before cutting. Especially relevant in tower speaker pods and thin helm panels.
Always use tinned marine-grade copper wire — not CCA (copper-clad aluminum). Salt moisture and aluminum oxidize poorly together. A corroded connection kills signal at frequencies you can't detect until the speaker is already damaged.
For all three subs (M6-8IB, M6-10IB, M7-12IB), use a solid, non-resonant mounting surface — fiberglass preferred, not thin aluminum or hollow wood. Any flex colors the bass and reduces efficiency. This is critical for the M7-12IB: at the output levels it's capable of, a poorly braced panel will flex, buzz, and eventually fail.
The M7-12IB needs a dedicated marine monoblock in the 600W–1,000W range. Don't bridge a 4-channel amp down to one channel. Running it significantly underpowered limits output and causes thermal stress in the voice coil over time.
With 125W RMS handling and 91 dB sensitivity, the 8.8" coaxial scales extremely well. A quality 4-channel marine amp putting 75–125W per channel into a pair of these will genuinely test your boat's structural integrity — in the best possible way.
The Standard for Marine Audio
The JL Audio M6 and M7 Series represent the benchmark for marine audio. The engineering pedigree — the same design philosophy that built the W7 subwoofer and the C7 component system — translates effectively to the marine category. The M6 coaxials, particularly the 8.8" M6-880X, genuinely sound like high-quality car audio speakers that happen to be waterproof.
The M6 subwoofers are excellent for most builds. But the M7-12IB is where the line gets genuinely exceptional. Extension to 30 Hz, 600W RMS handling, a 4" voice coil, and infinite baffle flexibility make it the most capable marine subwoofer JL Audio produces — and one of the most capable in any category.
If you're serious about audio on the water, the M6 is the standard. If you want to go further, the M7-12IB is the answer.
Specs sourced from JL Audio engineering documentation and verified retailer listings. Always confirm current specs at jlaudio.com before purchasing.
