Every transducer pushes the same basic job: send a sound wave down, listen for what bounces back, and hand the cone data to the sonar module. What changes the quality of that data more than frequency or wattage is where the transducer actually sits relative to the hull and the water flowing under it. Turbulence, hull material, and deadrise angle will distort a great transducer's signal just as fast as a cheap one.

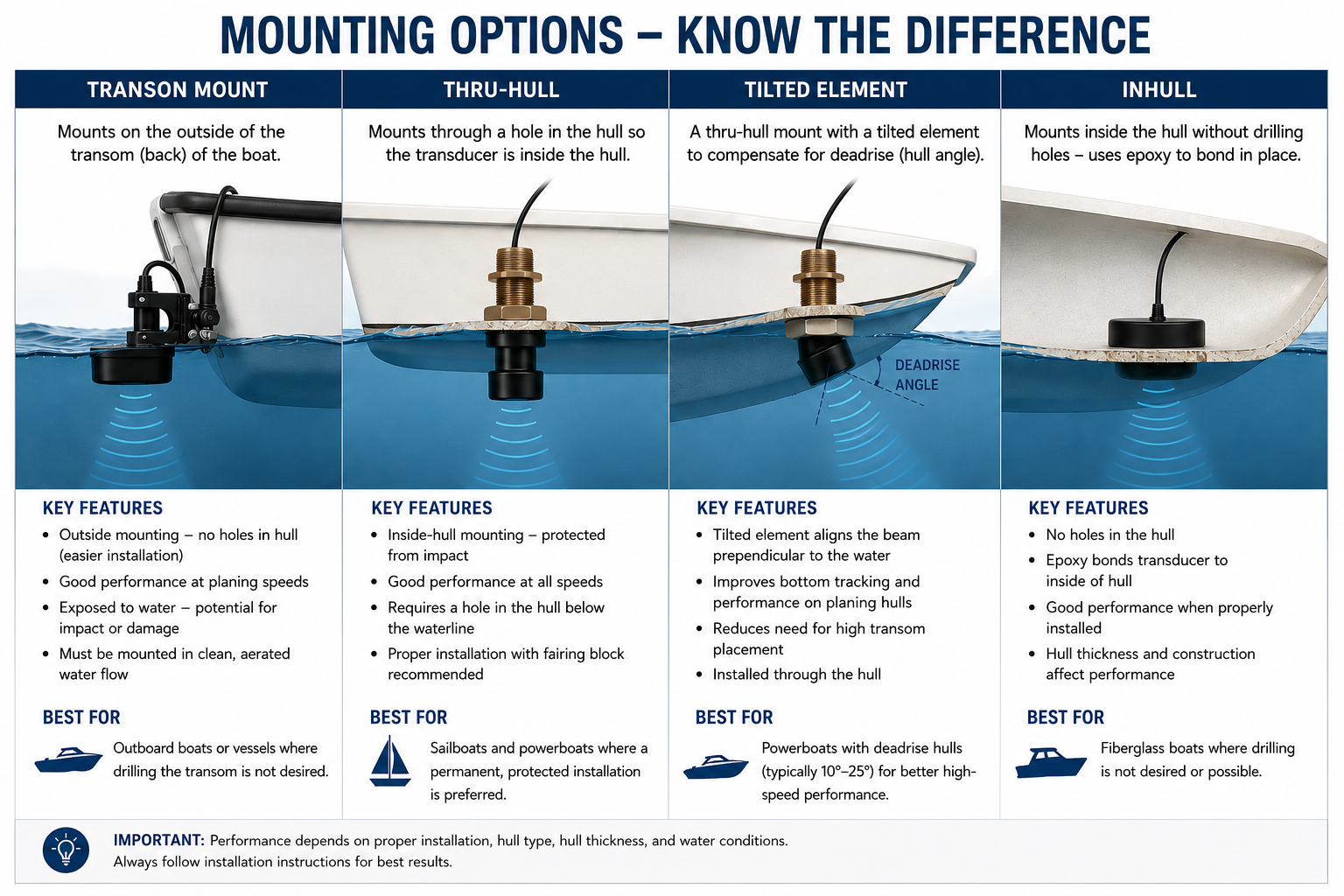

There are four mounting styles in common use on recreational and sport-fishing boats. None of them is universally "best" — each one trades off install complexity against signal quality in a different way, and the right call depends on the hull in front of you.
Transom Mount
The transducer bolts to a bracket on the transom, with the sensing face hanging just below the hull bottom so it stays in clean water once the boat is moving. It's the only one of the four styles that requires no hole in the hull at all — the bracket mounts to the outside of the transom with through-bolts above the waterline.
Pros
- Simplest install — no hull penetration, no haul-out
- Least expensive mounting hardware
- Easy to adjust height and angle after install
- Simple to swap or replace later
Cons
- Sits in prop wash and turbulence at speed
- Prone to cavitation and signal dropout in rough water or hard turns
- Can lose bottom lock running on plane
- Cannot be used on stepped hulls for primary sonar
Thru-Hull
The transducer mounts through a hole drilled in the hull bottom, sitting flush or near-flush with the outer surface so the face is in direct, undisturbed contact with the water. Because it's below the waterline and permanent, installation means hauling the boat. On hulls with any meaningful deadrise, a fairing block is bonded in first so the sensing face still sits level with the water rather than angled with the hull.
Pros
- Cleanest, most consistent signal at speed
- Minimal turbulence interference compared to transom mount
- Reliable bottom and fish marking running offshore
- Works with high-power and CHIRP transducers that need direct water contact
Cons
- Permanent hole below the waterline
- Requires a haul-out for install or service
- Needs a fairing block on any hull with deadrise
- More expensive than a transom mount, install included
Thru-Hull, Tilted Element
Mechanically this is a thru-hull, but the sensing element is mounted inside the housing at a fixed angle — commonly 12° or 20° — so the face stays perpendicular to the water once it's installed flush with an angled hull bottom. The tilt replaces the fairing block: instead of building up a level pad, the element itself is already angled to compensate for the hull's deadrise.
Pros
- No fairing block needed on deep-V hulls
- Cleaner, lower-profile install than a faired thru-hull
- Accurate cone alignment and depth readings on the boat's actual running angle
Cons
- Tilt angle must match the hull's deadrise — wrong angle means skewed readings
- Same haul-out and permanent-hole tradeoffs as a standard thru-hull
In-Hull (Shoot-Thru)
The transducer never touches the water. It's bonded to the inside of the hull with epoxy or couplant, and the sonar signal travels through the fiberglass itself before reaching the water. Because there's no hole anywhere, this is the only style that can be installed with the boat still in the water — and the only one with no penetration risk at all.
Pros
- Zero hull penetration, zero leak risk
- Installable with the boat in the water — no haul-out
- Good option for rental, leased, or already-rigged boats
Cons
- Only works on solid fiberglass — no cored, wood, or metal hulls
- Some signal loss passing through the hull material
- Reduced performance in deep water and at higher CHIRP frequencies
- Generally the weakest signal quality of the four styles
At a Glance
| Mount | Hull penetration | Haul-out needed | Signal quality at speed |
|---|---|---|---|
| Transom mount | None | No | Fair — affected by turbulence |
| Thru-hull | Below waterline | Yes | Excellent |
| Tilted thru-hull | Below waterline | Yes | Excellent, deep-V hulls |
| In-hull | None | No | Good — some signal loss |
How to Decide
- Hull material first. In-hull only works on solid fiberglass. Cored, wood, or metal hulls rule it out immediately.
- Deadrise angle next. Flat or shallow hulls do fine with a standard thru-hull. Deep-V hulls call for a tilted element or a fairing block.
- How fast you actually run. If you're mostly trolling or idling, a transom mount may be all you need. If you're running offshore at cruise speed, thru-hull wins.
- Will the boat get hauled? If a haul-out isn't realistic right now, that takes thru-hull and tilted thru-hull off the table until it is.
- What you're marking. Deep water and high-frequency CHIRP performance favor direct-contact mounts over in-hull.
