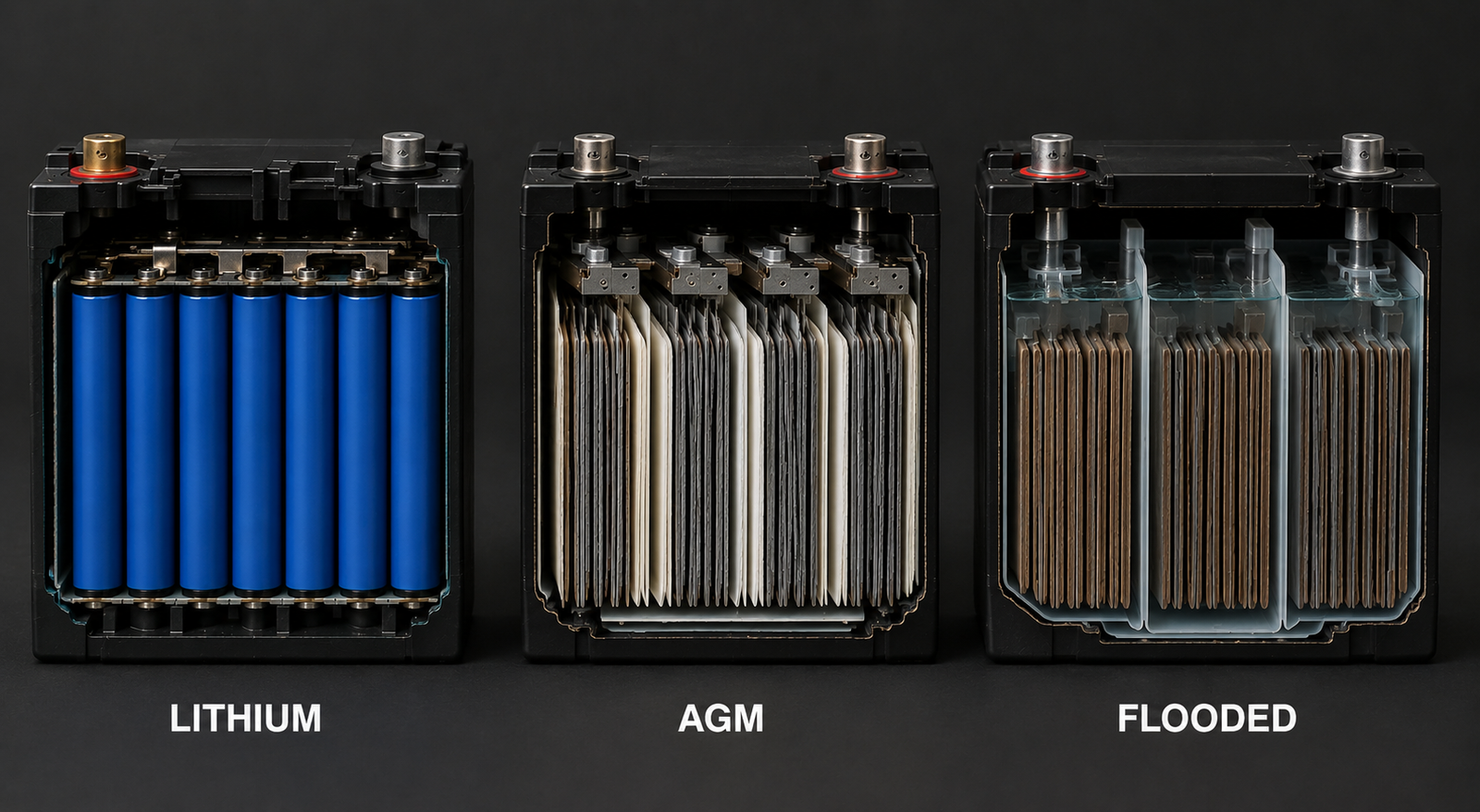

Chemistry and cell architecture
Flooded lead-acid batteries use lead plates suspended in a sulfuric acid electrolyte. During discharge, lead sulfate forms on both plates; charging reverses this reaction. The chemistry is reliable but thermodynamically inefficient — internal resistance rises sharply as the battery depletes, and plates sulfate permanently if left discharged. On a boat, constant vibration, high humidity, and irregular charge cycles from an alternator accelerate degradation.
AGM (Absorbent Glass Mat) batteries address the spill and gas-venting problems by immobilizing the electrolyte in a fiberglass mat separator. This makes them safer for enclosed bilge spaces, more vibration-resistant, and capable of slightly higher charge/discharge rates. The fundamental lead-acid chemistry and depth-of-discharge limitations remain identical.
LiFePO4 cells operate on lithium-ion intercalation chemistry, where lithium ions move between a lithium iron phosphate cathode and a graphite anode through a non-aqueous electrolyte. The Abyss AB-12V120-BT uses cylindrical Grade-A LiFePO4 cells (UL1642, IEC62619, IEC62133 certified) in a 4S configuration to achieve a nominal 12.8V. The olivine crystal structure of the cathode material makes LiFePO4 inherently more thermally stable than other lithium chemistries — it does not undergo thermal runaway under abuse conditions the way NMC or NCA cells can.
Usable capacity on the water
Rated amp-hour capacity is a marketing number. What matters for trolling motor runtime, electronics endurance, and livewell pump duty cycles is usable capacity — the energy actually accessible without damaging the battery. Flooded and AGM cells begin sulfating if regularly discharged below 50% state of charge (SoC). LiFePO4 can be discharged to 10–20% SoC routinely with negligible effect on cycle count.
Abyss AB-12V120-BT — full specifications
Certified: UL1642 · IEC62619 · IEC62133 · CE · UN/DOT 38.3 · ROHS · ABYC compliant · Mercury Marine certified
BMS: the brain inside the battery
Flooded and AGM batteries have no active protection electronics. Overcharge, over-discharge, short circuit, and thermal events are managed entirely by the external charging system — or not managed at all. This is a critical distinction in a marine environment where alternators can surge, bilge temperatures climb, and wiring faults happen.
LiFePO4 batteries require a Battery Management System (BMS) — an embedded microcontroller that monitors every cell group and enforces electrical limits in real time. The Abyss AB-12V120-BT integrates a BMS with Bluetooth telemetry, exposing live data through the Abyss app on iOS and Android.
Marine-specific performance comparison
| Parameter | Flooded | AGM | Abyss LiFePO4 |
|---|---|---|---|
| Peak CCA | ~650–800A | ~750–900A | 1,200A (BMS-rated) |
| Trolling runtime | ~45Ah usable | ~50Ah usable | ~114Ah usable |
| Vibration tolerance | Poor — plate shedding risk | Good — absorbed mat | Excellent — cylindrical cells |
| Bilge gas emission | Yes — hydrogen venting | Minimal (VRLA recombinant) | None |
| IP rating | None | Varies (~IP44) | IP65 (dust-tight, water jet) |
| Series / parallel | Yes | Yes | Yes — BMS compatible |
| Weight (Group 24) | ~30 kg | ~28 kg | 11.5 kg (25 lbs) |
| Charge acceptance | 0.1–0.15C max | 0.2C max | 0.5C standard, 1C capable |
| Flat voltage curve | No — sags with discharge | No — sags with discharge | Yes — holds 13.2V to ~10% SoC |
| Cycle life | 300–500 | 500–800 | 3,000+ (UL verified) |
| Upfront cost | $135–$200 | $250–$500 | $1,299.99 |
| 10-year total cost | Highest (4–6 replacements) | Moderate (2–3 replacements) | Lowest (one purchase) |
Charging on the water: alternators, shore power, solar
This is where most installation problems originate. A standard marine alternator running a flooded battery profile outputs 14.4V absorption and 13.8V float — the 13.8V float will not damage a LiFePO4 battery, but it will never fully charge it, and the BMS may interpret repeated partial charges as a fault over time. For engine charging, a DC-DC charger (also called a B2B charger) isolates the LiFePO4 bank from the alternator and provides a proper lithium charge profile regardless of the alternator's output regulation.
The Abyss AB-12V120-BT is listed as compatible with existing 12V AGM chargers — this applies to multi-stage shore-power chargers that have a lithium mode or a 14.4–14.6V absorption ceiling. For solar installations, specify a MPPT controller with a dedicated LiFePO4 charge algorithm; PWM controllers without adjustable float voltage are incompatible.
Dual-purpose marine operation
The AB-12V120-BT is rated for dual-purpose service — both engine cranking and deep-cycle house/trolling use. Its 1,200A peak CCA satisfies most outboard starting requirements through the 250hp class. For outboards operating in Florida and Gulf Coast climates, the LiFePO4 cranks without issue year-round. The flat discharge voltage curve — holding 13.2V down to approximately 10% SoC — also means full motor power until the BMS cutoff, unlike lead-acid batteries that lose voltage and thrust proportionally as they drain.
Buyer's guide: choosing the right battery
The right battery depends on application type, charge system compatibility, and budget. Use this framework to match chemistry to use case before purchasing.
Pre-purchase checklist
- Verify your charger supports a lithium profile with 14.4–14.6V absorption and ≤13.6V float
- Confirm your alternator setup — install a DC-DC B2B charger if charging LiFePO4 from the engine
- Check BCI group size — AB-12V120-BT is Group 24 (260×170×208 mm); confirm battery tray fit
- Verify terminal type — M8 threaded post; confirm cable lug sizing before ordering
- Plan your fusing — install an ANL fuse rated to BMS max continuous discharge current at the battery positive terminal
- Register the warranty within 90 days of purchase; proof of ownership required for the 5-year free replacement program
- Download the Abyss Battery app (iOS / Android) before launch day and commission the Bluetooth pairing at the dock
- If running series or parallel banks, ensure all batteries are same model, age, and SoC before connecting — confirm BMS compatibility for multi-battery configurations
For any marine application cycling more than 50 times per season, the Abyss AB-12V120-BT's 3,000+ cycle rating, IP65 ingress protection, 11.5 kg weight, flat discharge curve, and integrated BMS with Bluetooth monitoring make a technically superior case at every level except upfront cost. The BMS architecture alone — providing cell-level protection that no lead-acid chemistry can replicate — justifies the premium in a marine environment where battery failure offshore carries real consequences. Flooded batteries remain viable for budget-constrained, low-cycle engine-starting applications only. AGM has no compelling niche in a market where LiFePO4 prices have reached this level.
