Hertz Audio  |  SKU: HTZ/78250020  |  Barcode: 8018823138833

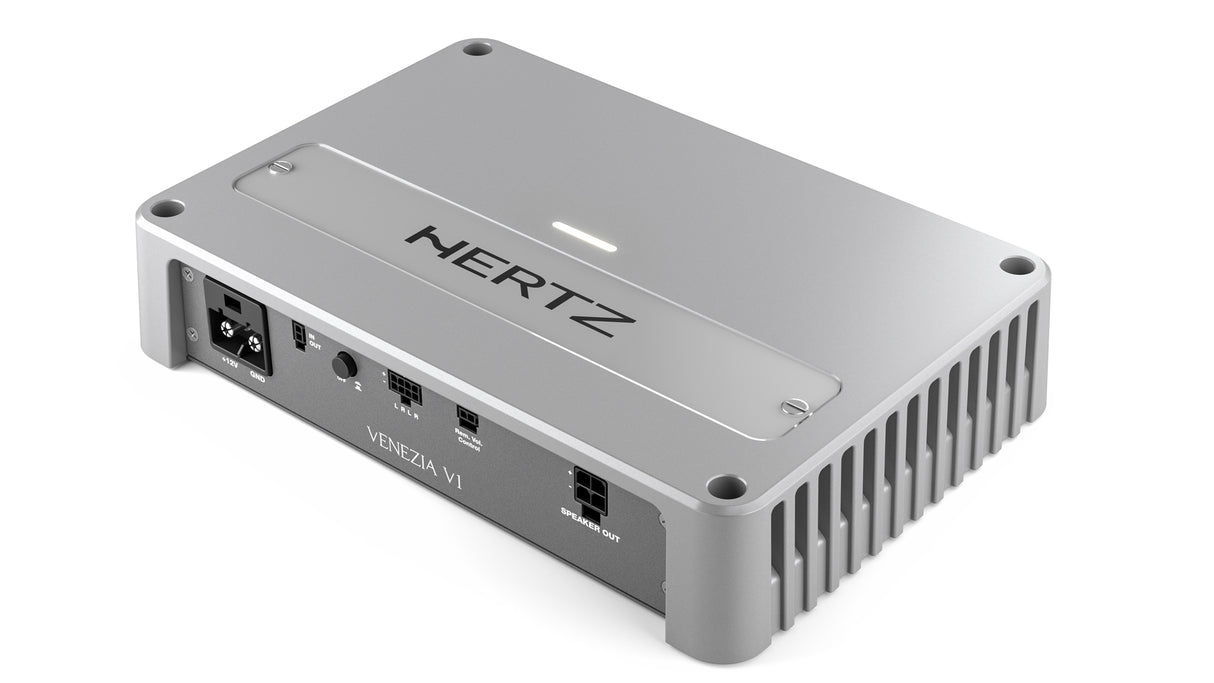

Venezia V1

Monoblock Amplifier

Regular price $1,09999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Venezia V1 is the most-powerful mono Hertz marine amplifier ever, featuring 1260 W @ 1Ω stable! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation. Venezia V1 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V1 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Specifications

  • Product Series
    Venezia
  • MPN
    78250020
  • Physical
    H: 7.28" (185 mm)
    W: 10.63" (270 mm)
    D: 2.12" (54 mm)
    Weight: 5.99 lbs (2.72 kg)
  • Amplifier Power
    Amplifier Class: D
    Continuous RMS Power:
    4Ω @ 14.4v = 700 W
    2Ω @ 14.4v = 1260 W
    4Ω @ 12.5v = Not Rated
    2Ω @ 12.5v = Not Rated
  • Amplifier Processing
    Frequency Range: 10 Hz - 500 Hz
    THD+N: 0.02% @ 4 Ω
    S/N Ratio (Highest Rated Power): 102 dB
    S/N Ratio (1w): Not Rated
    Damping Factor:
    4Ω: 500 / 100 Hz
    2Ω: Not rated
  • Amplifier Filters
    Filter Mode: HPF/LPF/Full
    Filter Frequency: 50 Hz - 500 Hz
    Filter Slope: 24 dB/Octave
    Infrasonic Filter: Yes (25 Hz)
  • Power
    Input: 9-16v DC
    Draw:
    - Standby: .04 mA
    - On: 1 A
    - Max: 52 A
    Fuse: 60 A
  • Connectivity
    Max Wire Size:
    Power: n/a
    Speakers: n/a

    Audio Input: RCA
    Input Modes: None
    Remote Level Control: Yes (HRC BM2)
    Pass Through Preamp Output: None
  • IP Rating
    IPx2

Reviews (0)

In The Box

In The Box:

Amplifier
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
