Hertz Audio  |  SKU: HTZ/78250024  |  Barcode: 8018823138840

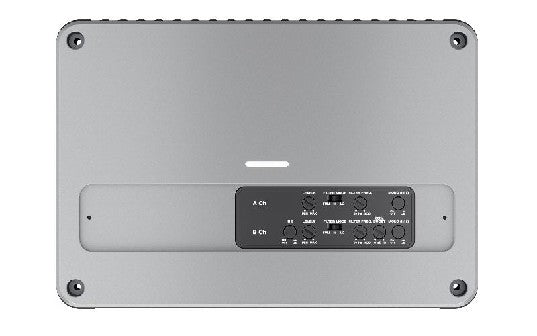

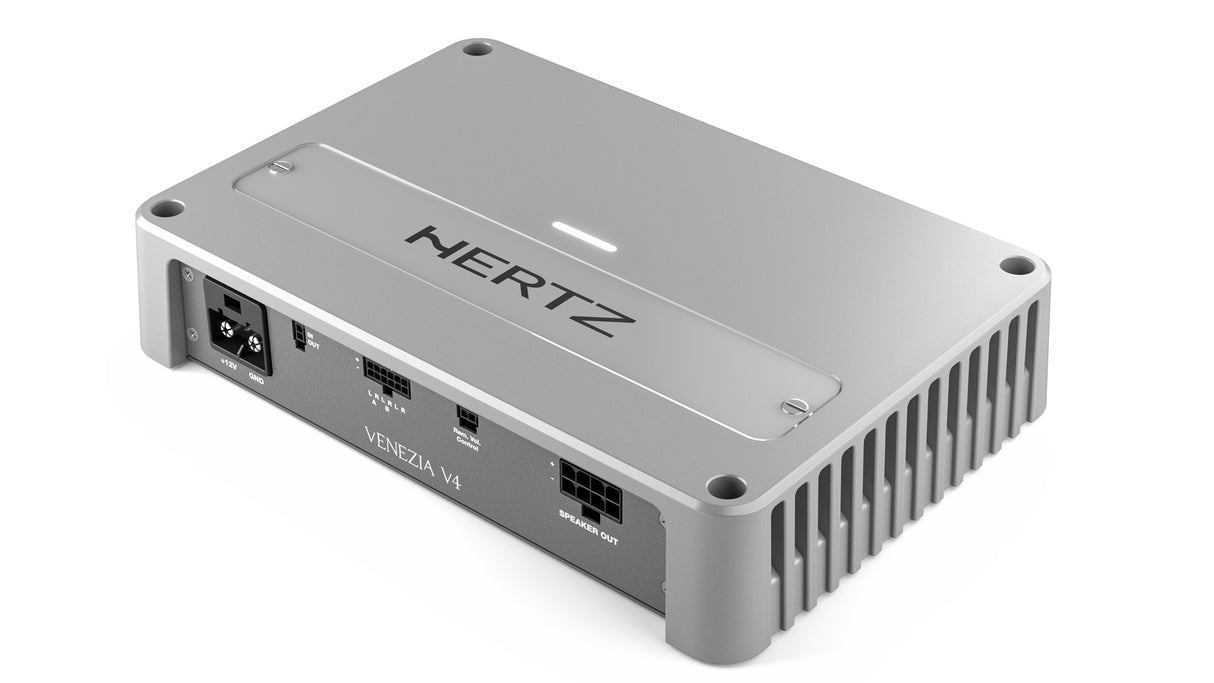

Venezia V4

High Power 4-Channel Amplifier

Regular price $1,09999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Venezia V4 is the most-powerful four-channel Hertz marine amplifier ever, featuring 160 W x 4 (4Ω) and 580 W x 2 (4Ω)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V4 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Specifications

  • Product Series
    Venezia
  • MPN
    78250024
  • Physical
    H: 7.28" (185 mm)
    W: 10.63" (270 mm)
    D: 2.12" (54 mm)
    Weight: 5.77 lbs (2.66 kg)
  • Amplifier Power
    Amplifier Class: D
    Continuous RMS Power:
    4Ω @ 14.4v = 160 W x 4
    2Ω @ 14.4v = 290 W x 4
    4Ω Bridged @ 14.4v = 580 W x 2
    4Ω @ 12.5v = Not Rated
    2Ω @ 12.5v = Not Rated
    4Ω Bridged @ 12.5v = Not Rated
  • Amplifier Processing
    Frequency Range: 10 Hz - 42 kHz
    THD+N: 0.06% @ 4 Ω per Ch.
    S/N Ratio (Highest Rated Power): 102 dB
    S/N Ratio (1w): Not Rated
    Damping Factor:
    4Ω: >130 / 100 Hz
    2Ω: Not rated
  • Amplifier Filters
    Filter Mode: HPF/LPF/Full
    Filter Frequency: 50 Hz - 4 kHz
    Filter Slope: 12 dB/Octave
    Infrasonic Filter: None
  • Power
    Input: 9-16v DC
    Draw:
    - Standby: .04 mA
    - On: 1.6 A
    - Max: 48 A
    Fuse: 50 A
  • Connectivity
    Max Wire Size:
    Power: n/a
    Speakers: n/a

    Audio Input: RCA
    Input Modes: Yes (4ch/3ch/2ch)
    Remote Level Control: Yes (HRC BM2)
    Pass Through Preamp Output: None
  • IP Rating
    IPx2

Reviews (0)

In The Box

In The Box:

Amplifier
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
