Hertz Audio 1060w 8-Channel DSP Amplifier - HMD-8 DSP
Description
Description

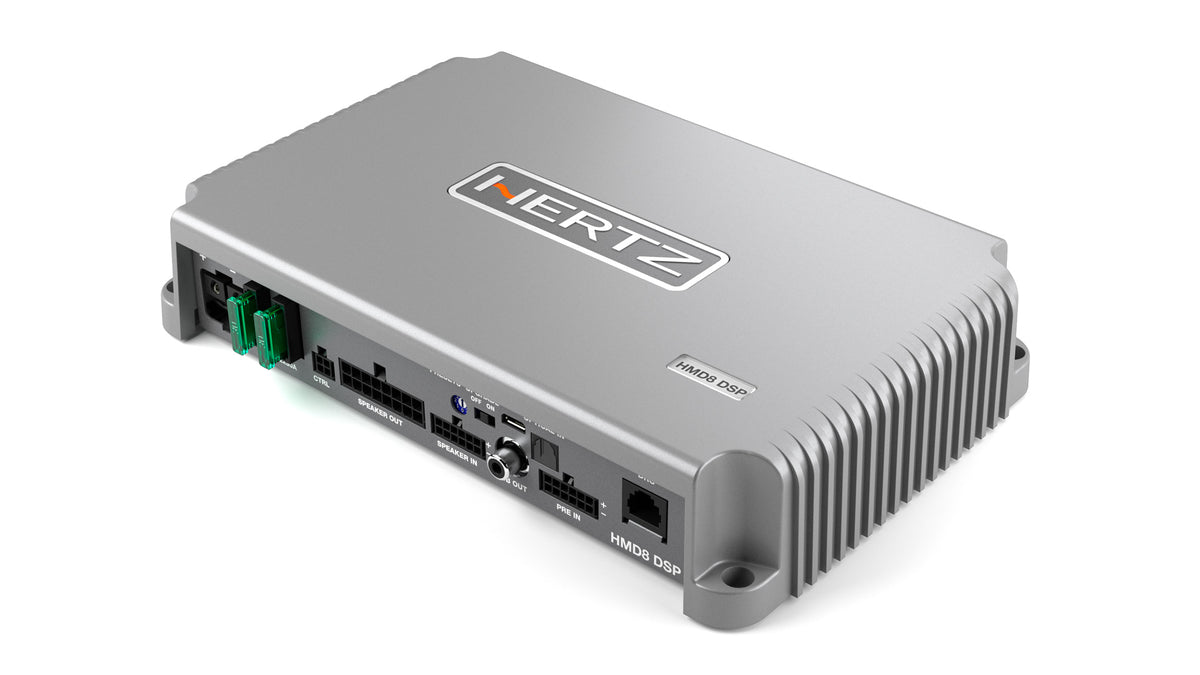

The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. "Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.
Specifications
Specifications
Identification
| MPN | 78213000 |
|---|---|
| Barcode | 8018823133319 |
Power
| Channel Configuration | 8 x 85 W or 4 x 260 W (Bridged) |
|---|---|
| Power (8ch @ 4Ω) | 85 W x 8 |
| Power (Bridged 4ch @ 4Ω) | 260 W x 4 |
| Power @ 2Ω | 130 W per Channel |
Audio Performance
| Frequency Response | 10 Hz – 22 kHz |
|---|---|
| THD | 0.06% |
DSP
| Filter Types | Butterworth, Linkwitz-Riley, Bessel, Chebyshev |
|---|---|
| Equalization | 10 Parametric Poles |
| Time Alignment | Up to 510 cm |
| Listening Zones | 3 Configurable Zones |
Power Supply
| Operating Voltage | 11 – 15 VDC |
|---|
Dimensions
| Length | 238 mm (9.37 in.) |
|---|---|
| Width | 49.5 mm (1.95 in.) |
| Height | 155 mm (6.10 in.) |
| Weight | 1.98 kg (4.36 lb) |
Certifications & Protection
| Protection Rating | IP64 |
|---|
