JL Audio  |  SKU: JLA/010-03103-00

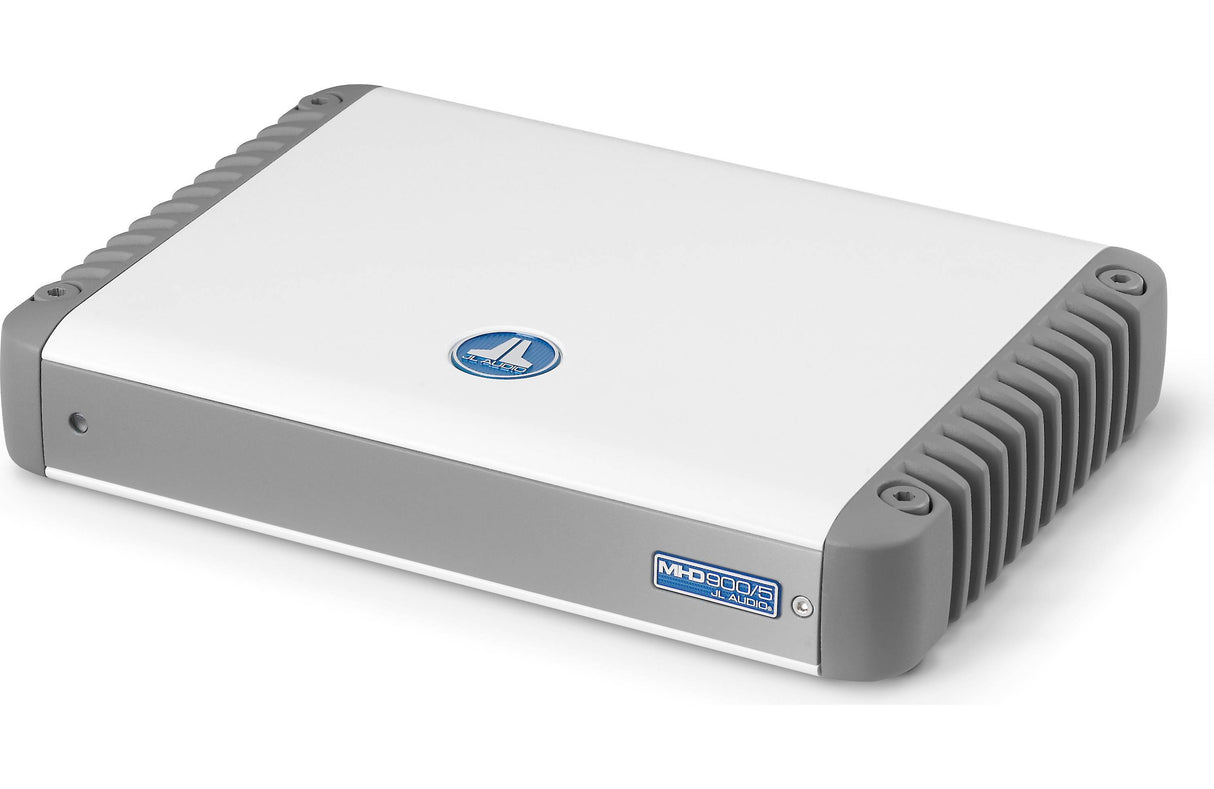

MHD900/5

900w 5ch HD Amplifier

$1,64999

Thanks to its ability to act as a "one-box solution", the MHD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.

While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!

Using our Single Cycle Control switching design and R.I.P.S technology, the MHD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Barcode: 699440982269
0.02 lb
  • Model
    98226
  • Product Series
    JL MHD
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    Main Ch:
    4? = 100 W x 4
    2? = 75 W x 4
    Subwoofer Ch:
    4? = 500 W x 1
    2? = 500 W x 1

    12.5v Output:
    Main Ch:
    4? = 100 W x 4
    2? = 75 W x 4
    Subwoofer Ch:
    4? = 500 W x 1
    2? = 500 W x 1
  • Processing
    Frequency Response:
    Main Channels: 12 Hz - 28 kHz
    Sub Channel: 12 Hz - 10 kHz
    Signal to Noise Ratio (Highest Rated Power): 108.5 dB
    Signal to Noise Ratio (1 W): 88.2 dB
    THD+N (Main Channels): 0.03% @ 4?
    THD+N (Sub Channel): 0.05% @ 4?
    Damping Factor (4?)
  • Filters
    Input Channel Modes: 2ch / 4ch / 6ch
    Filter Modes:
    Main Channels: Off / HPF
    Sub Channel: Off / LPF
    Filter Frequency:
    Main Channels: 50 Hz - 500 Hz
    Sub Channel: 50 Hz - 500 Hz
    Filter Slope:
    Main Channels: 12/24 dB/octave
    Sub Channel: 12/24 dB/octave
    Infra
  • Physical
    Height: 1.93" (49 mm)
    Width: 10.74" (273 mm)
    Depth: 7.85" (199 mm)
  • Connections & Audio Routing
    Power Input
    CH 1/2 Input (RCA)
    CH 3/4 Input (RCA)
    Sub Input (RCA)
    Remote Input
    CH 1/2 Output
    CH 3/4 Output
    Sub Output
  • Power Input
    11-14.5 V DC
    Minimum Wiring: 4awg
    R.I.P.S Power Supply
  • Other
    0
  • Water Rating
    Not Rated
