JL Audio  |  SKU: JLA/010-03319-00

MHD600/4

600w 4ch HD Amplifier

$1,39999

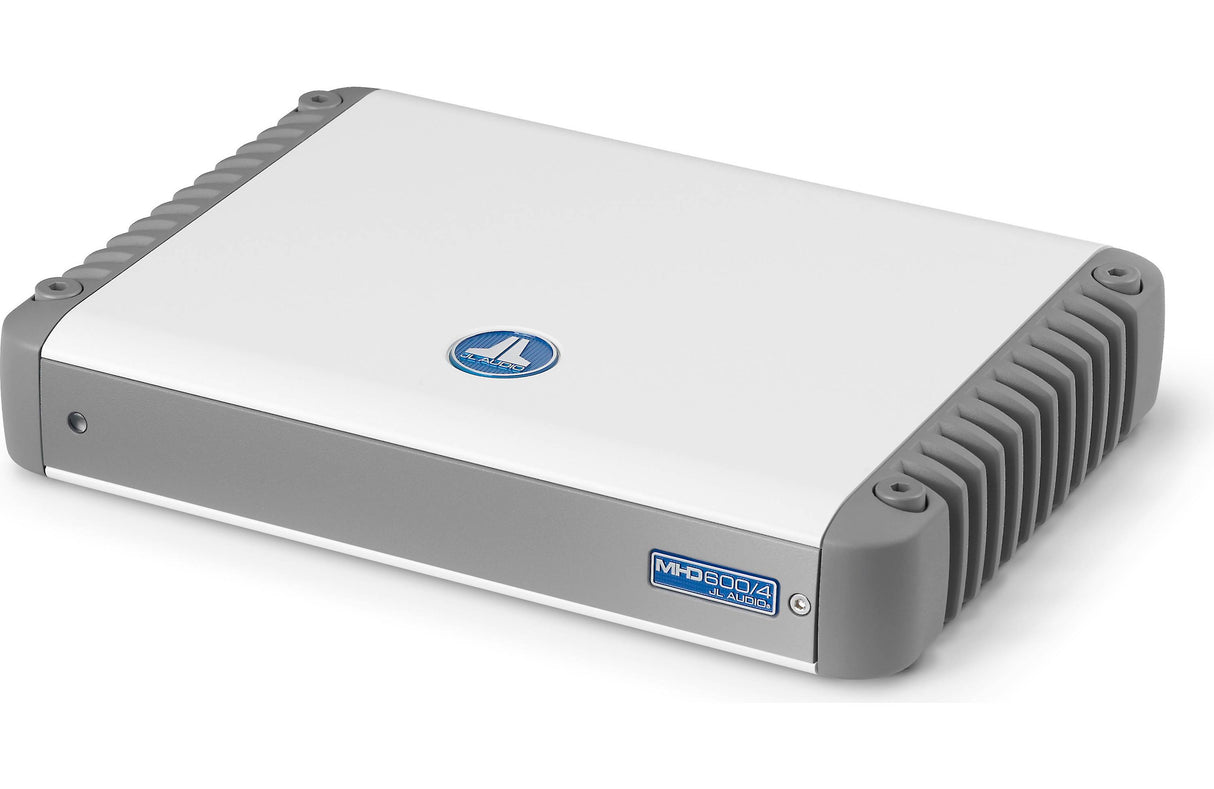

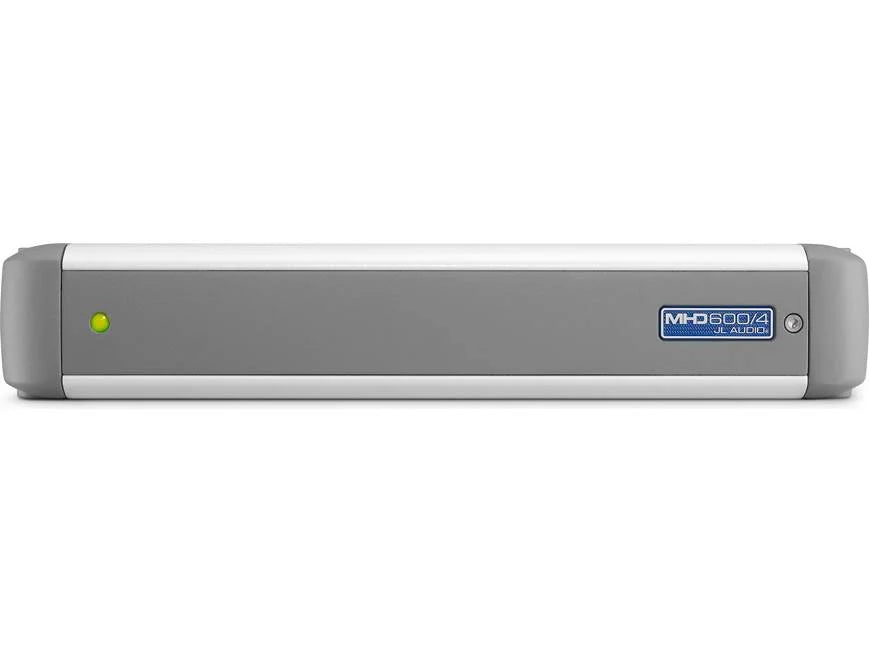

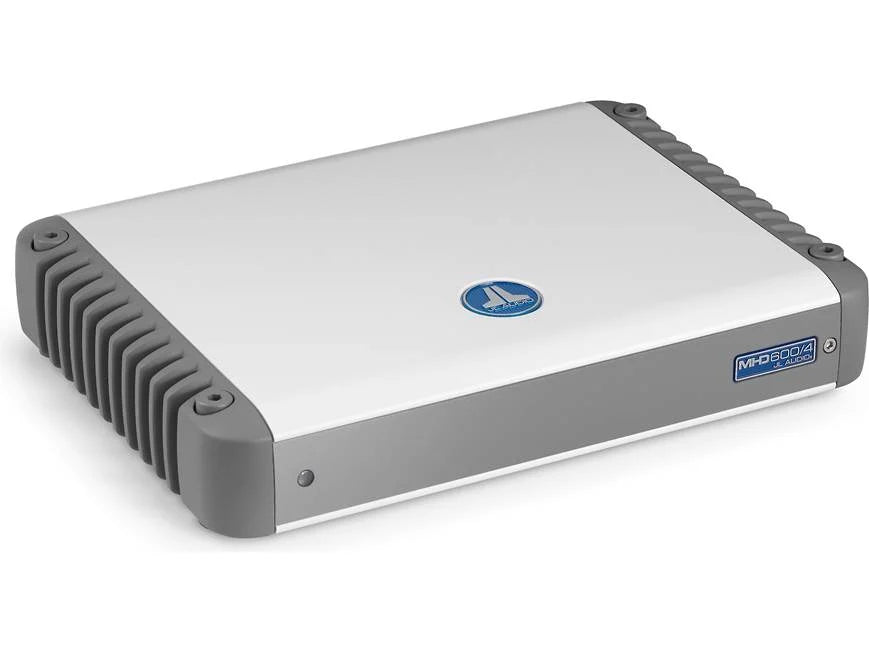

This compact, multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.

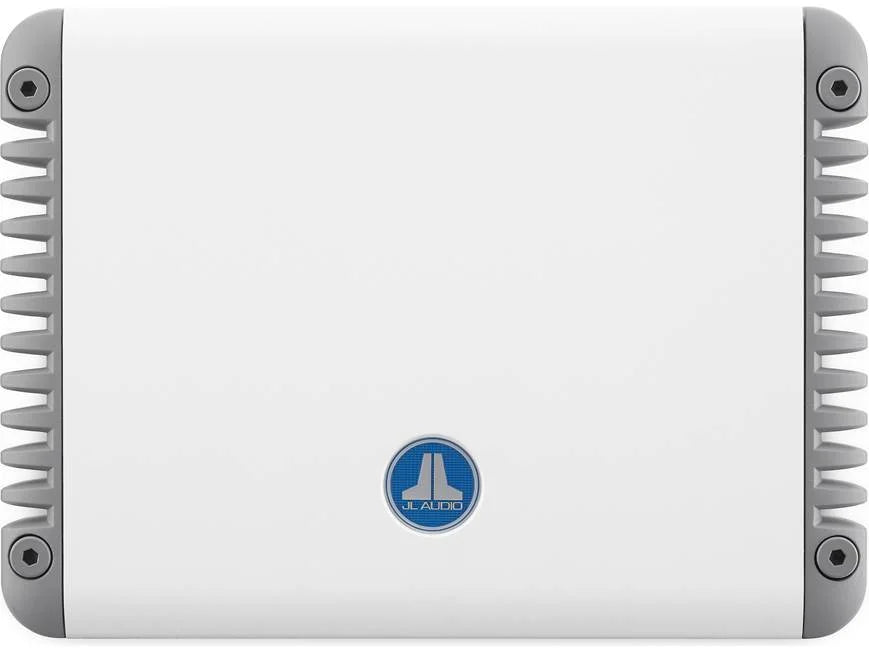

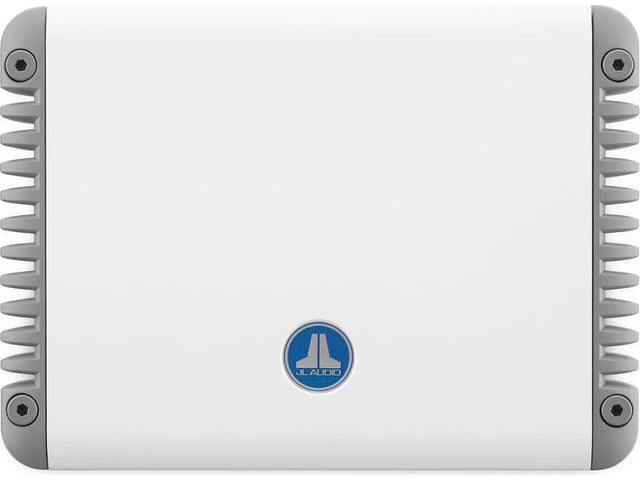

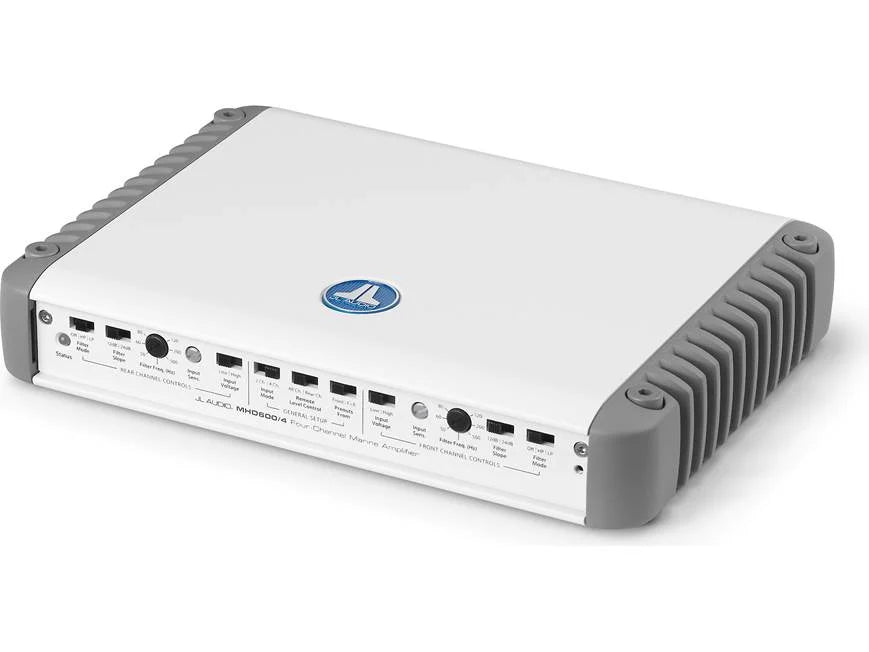

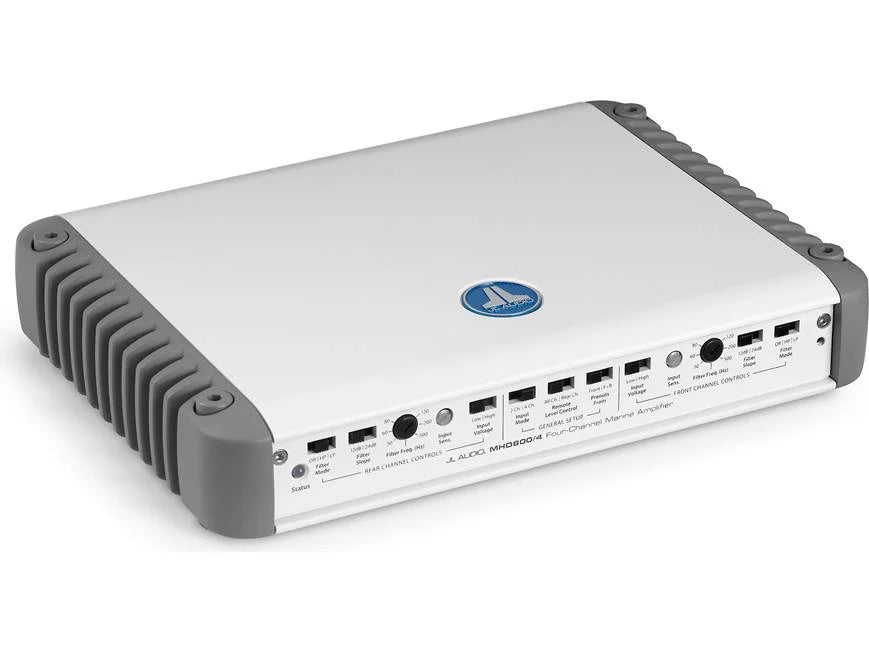

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Barcode: 699440982245
0.02 lb
  • Model
    98224
  • Product Series
    JL MHD
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    4? = 150 W x 4
    2? = 150 W x 4
    Bridged @ 4? = 300 W x 2

    12.5v Output:
    4? = 150 W x 4
    2? = 150 W x 4
    Bridged @ 4? = 300 W x 2
  • Processing
    Frequency Response: 6 Hz - 30 kHz
    Signal to Noise Ratio (Highest Rated Power): 110 dB
    Signal to Noise Ratio (1 W): 88.2 dB
    THD+N: 0.03% @ 4?
    Damping Factor (4?): 300/50 Hz
    Damping Factor (2?): 150/50 Hz

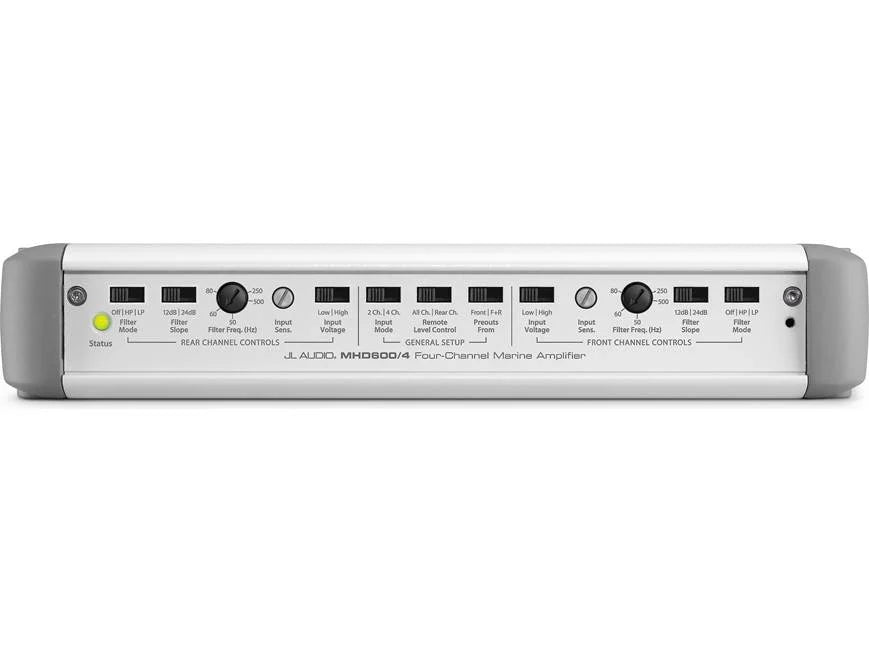

  • Filters
    Input Channel Modes: 2ch / 4ch
    Input Voltage: Yes (Low [200 mV - 2 V] / High [800 mV - 8 V)
    Filter Modes: Off / HPF / LPF
    Filter Frequency: 50 Hz - 500 Hz
    Filter Slope: 12/24 dB/octave
    Infrasonic Filter: No
    Bass Boost: No
    Pass-Through Pre Out: Yes (Buffe
  • Physical
    Height: 1.93" (49 mm)
    Width: 10.74" (273 mm)
    Depth: 7.85" (199 mm)

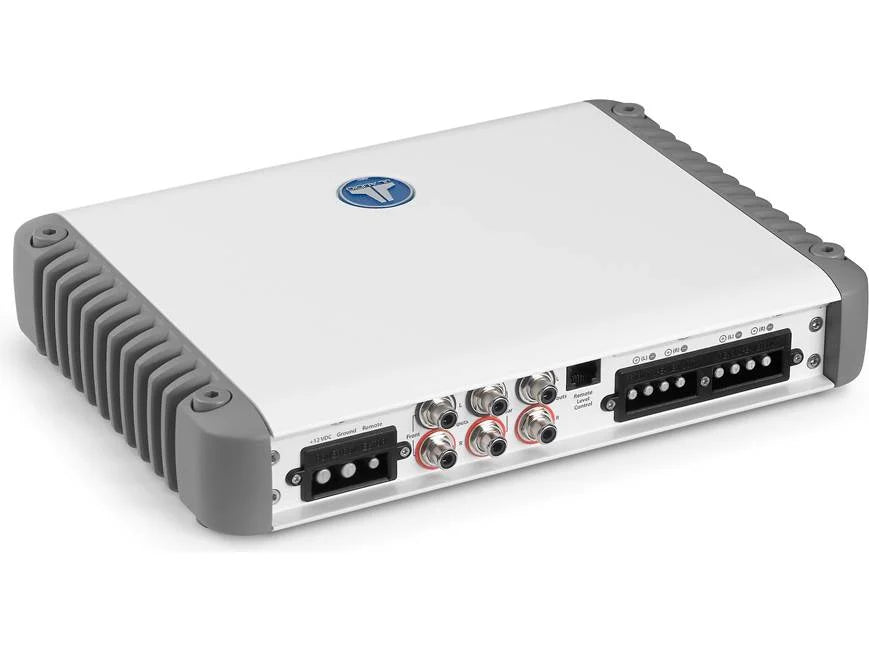

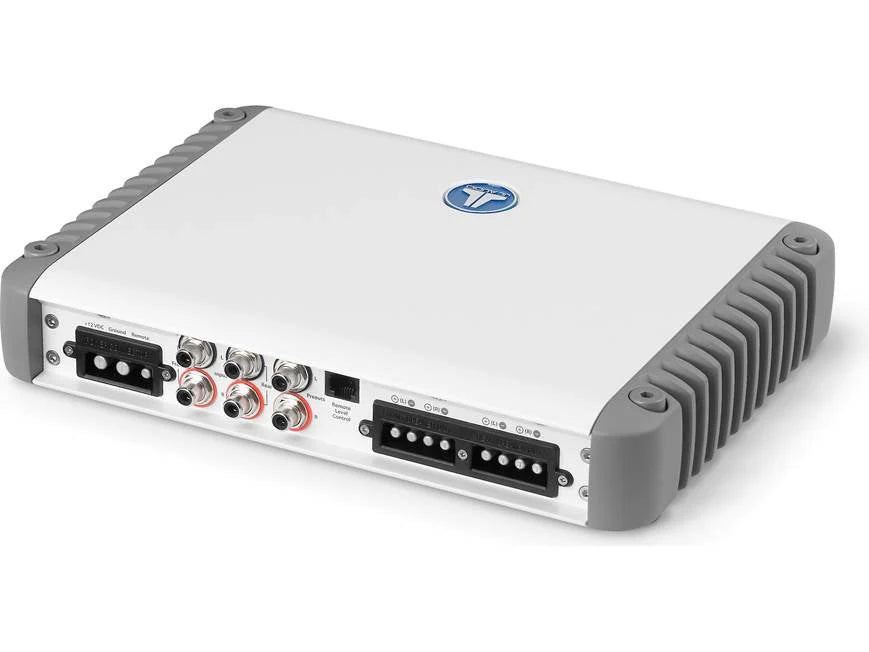

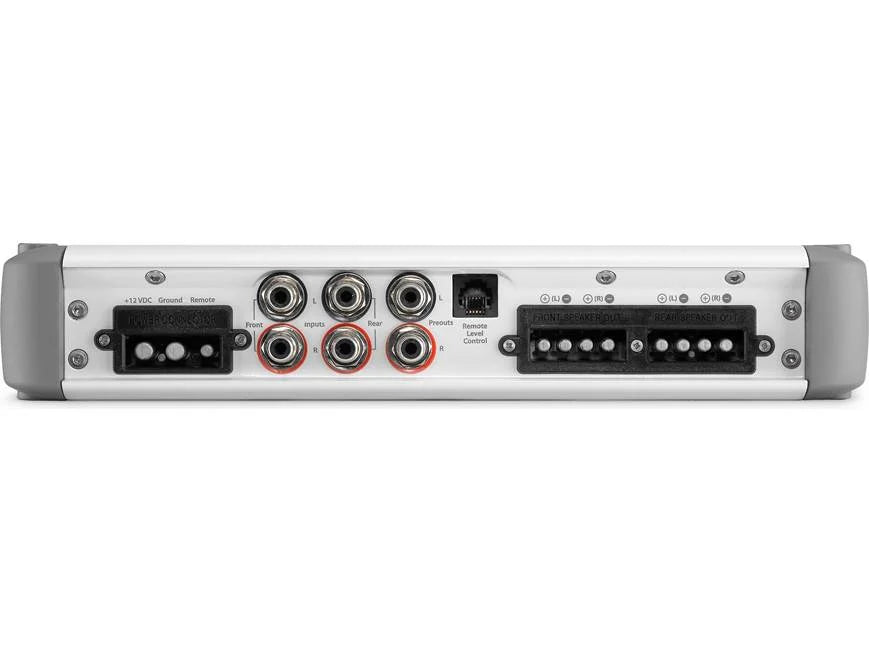

  • Connections & Audio Routing
    Power Input
    CH 1/2 Input (RCA)
    CH 3/4 Input (RCA)
    Remote Input
    CH 1/2 Output
    CH 3/4 Output
  • Power Input
    11-14.5 V DC
    Minimum Wiring: 4awg
    R.I.P.S Power Supply
  • Other
    0
  • Water Rating
    Not Rated
