JL Audio  |  SKU: JLA/010-03320-00

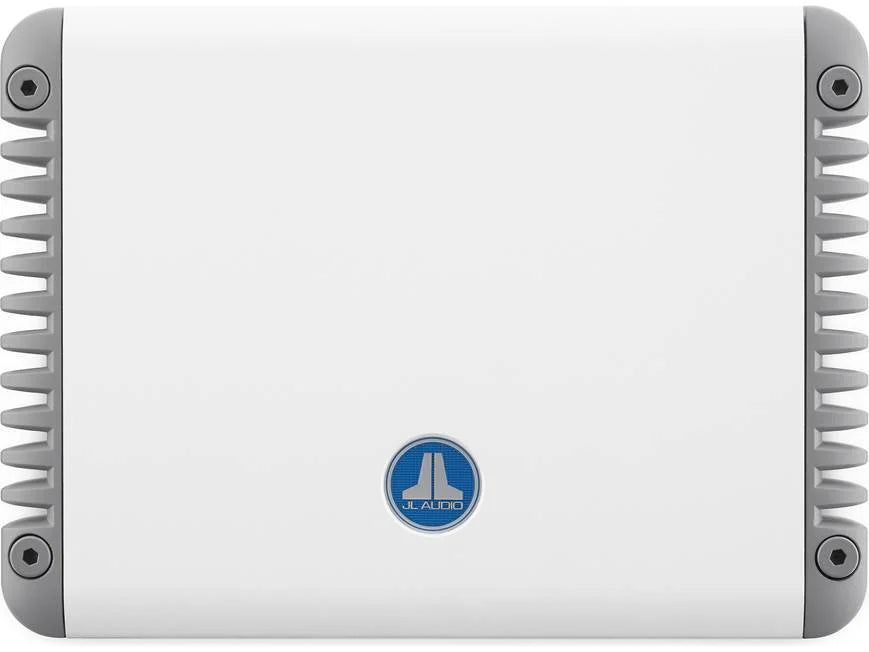

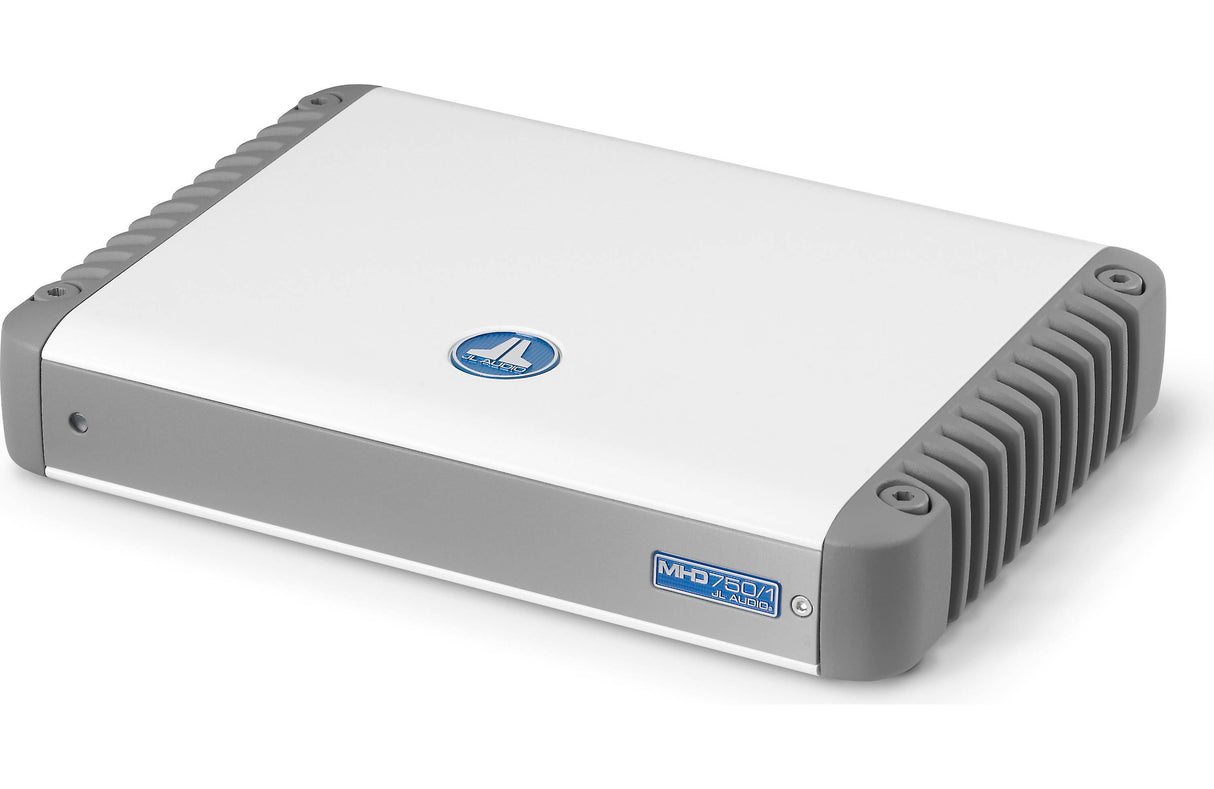

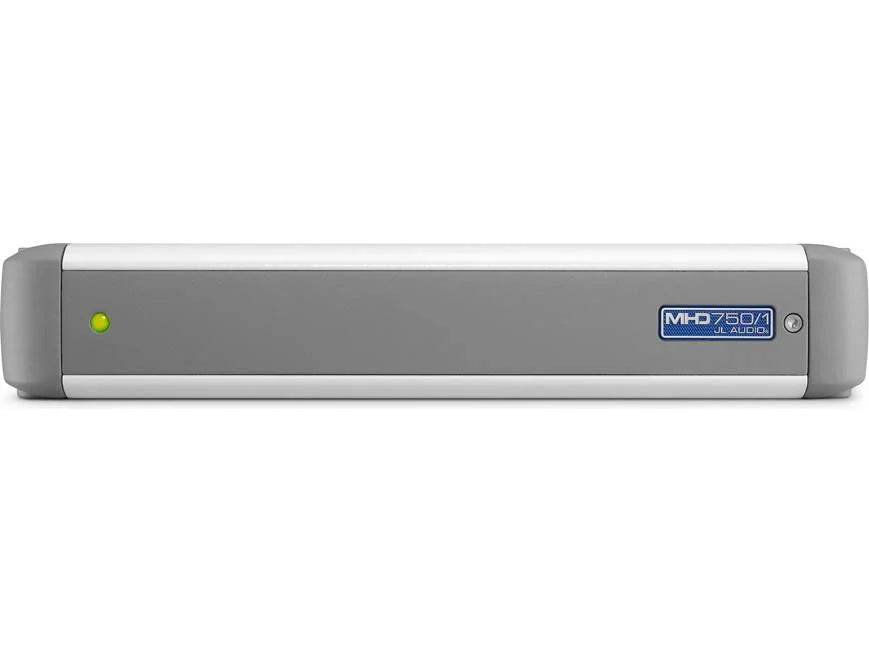

MHD750/1

750w Monoblock HD Amplifier

$1,24999

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 ohms, giving you the highest degree of flexibility in designing your subwoofer system.

Tight power supply regulation keeps distortion ultra-low and maximizes your bass performance. While targeted primarily to subwoofer applications, the MHD750/1 is a full-range amplifier and can also be used to drive high-performance mid and high frequency speaker systems.

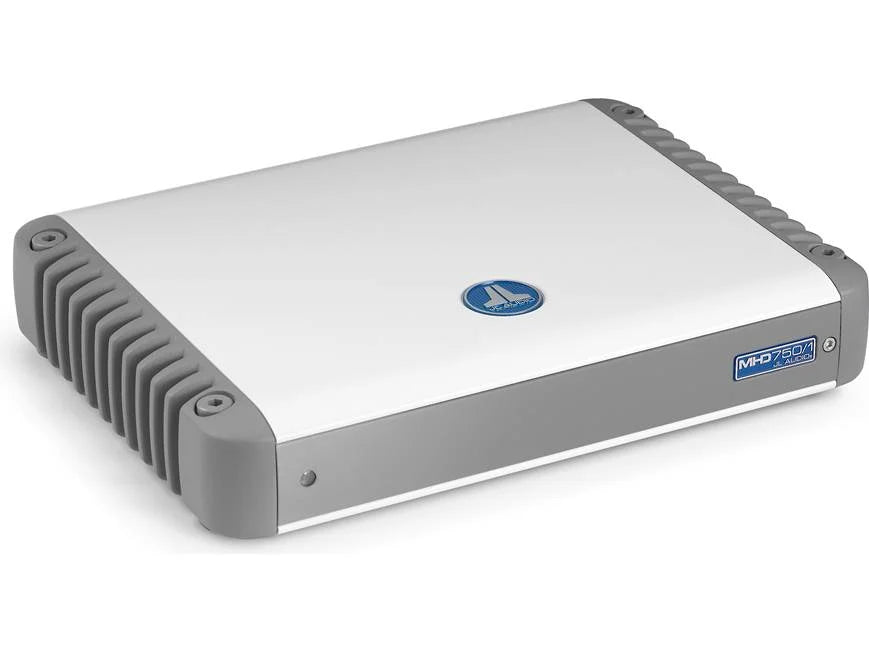

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Barcode: 699440982252
0.02 lb
  • Model
    98225
  • Product Series
    JL MHD
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    4? = 750 W x 1
    2? = 750 W x 1
    Bridged @ 4? = N/A

    12.5v Output:
    4? = 750 W x 1
    2? = 750 W x 1
    Bridged @ 4? = N/A
  • Processing
    Frequency Response: 6 Hz - 8 kHz
    Signal to Noise Ratio (Highest Rated Power): 110 dB
    Signal to Noise Ratio (1 W): 88 dB
    THD+N: 0.03% @ 4?
    Damping Factor (4?): 500/50 Hz
    Damping Factor (2?): 250/50 Hz

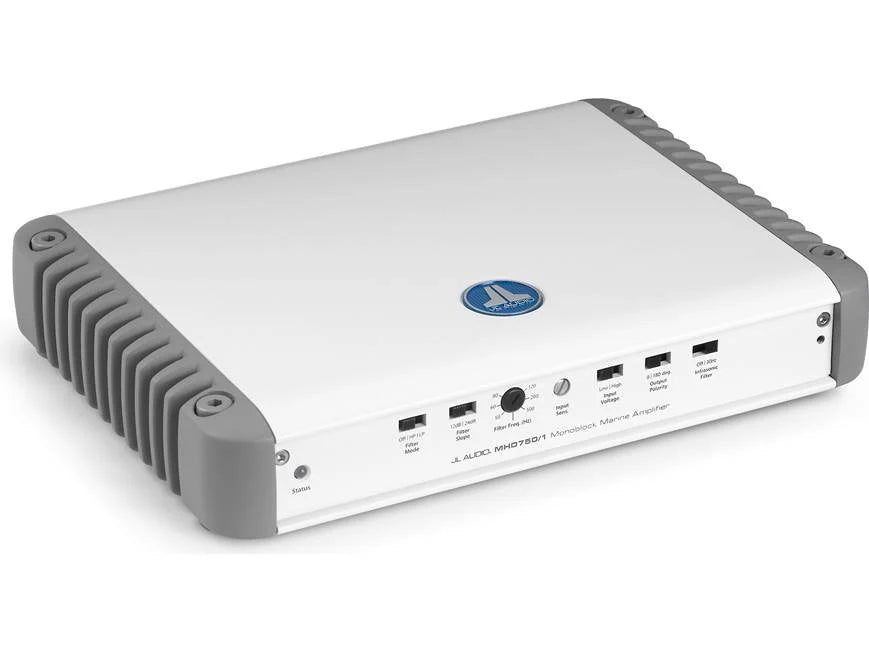

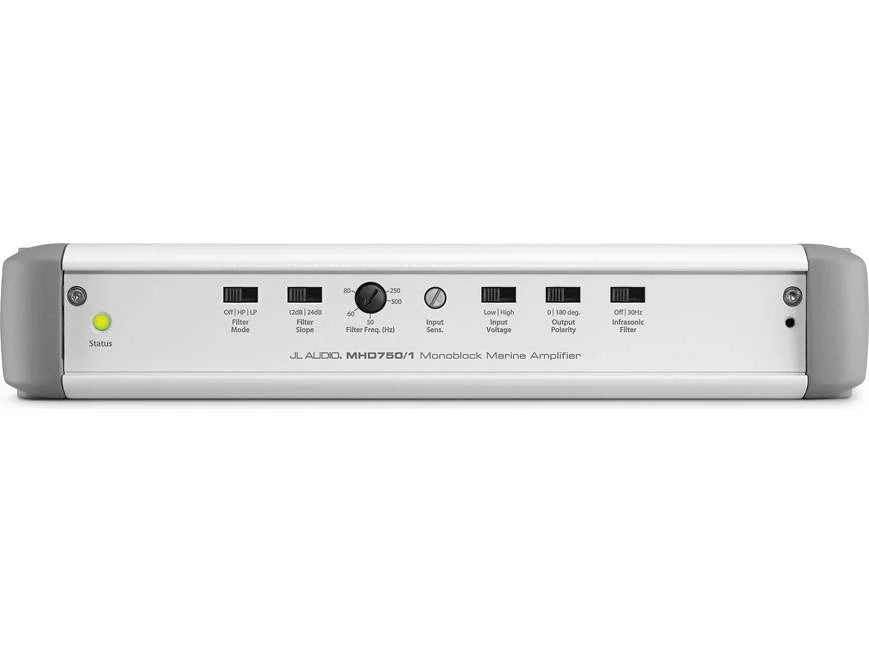

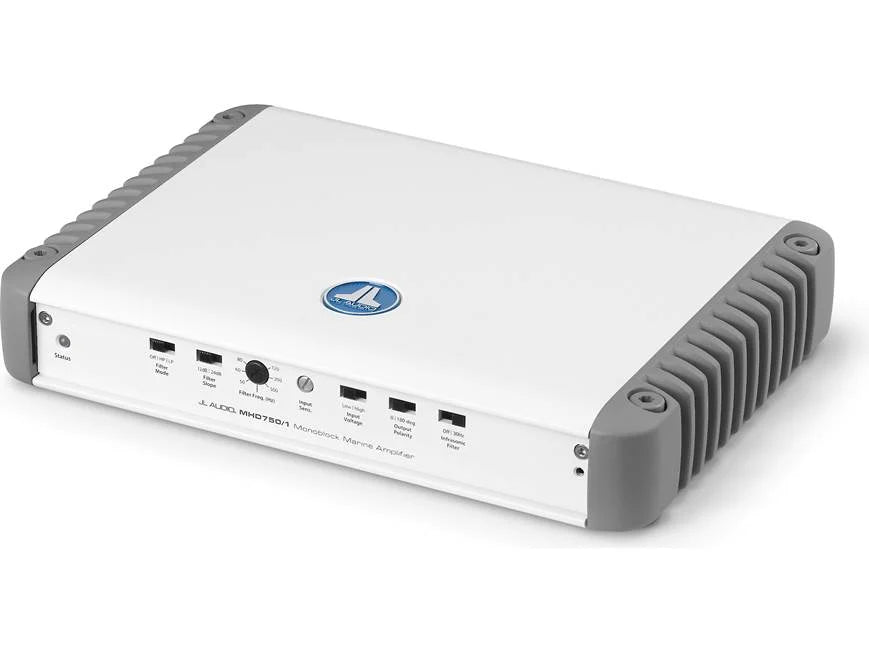

  • Filters
    Input Channel Modes: No
    Input Voltage: Yes (Low [200 mV - 2 V] / High [800 mV - 8 V)
    Filter Modes: Off / HPF / LPF
    Filter Frequency: 50 Hz - 500 Hz
    Filter Slope: 12/24 dB/octave
    Infrasonic Filter: Yes (30Hz, Defeatable)
    Bass Boost: No
    Pass-Through Pre Ou
  • Physical
    Height: 1.93" (49 mm)
    Width: 10.74" (273 mm)
    Depth: 7.85" (199 mm)

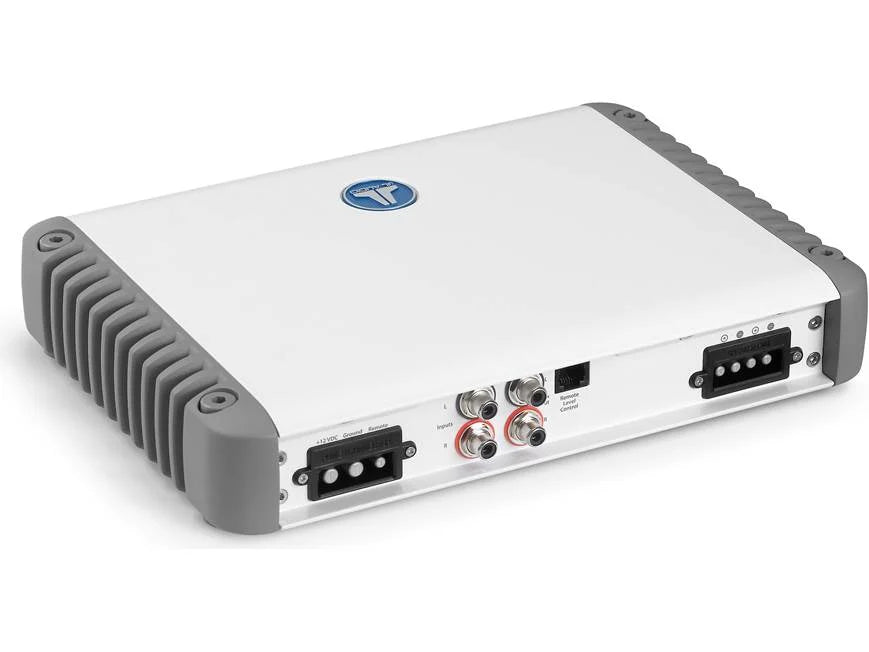

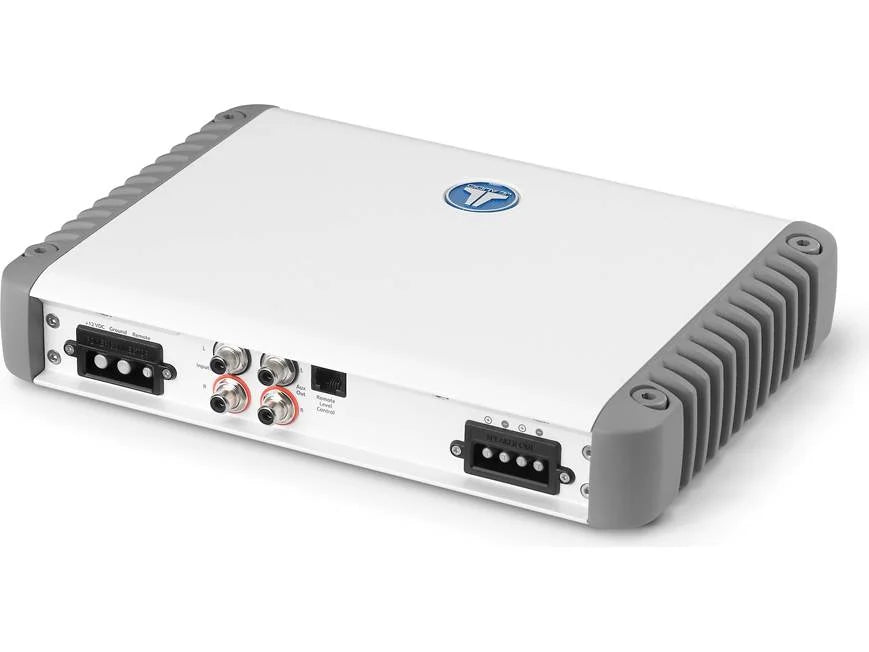

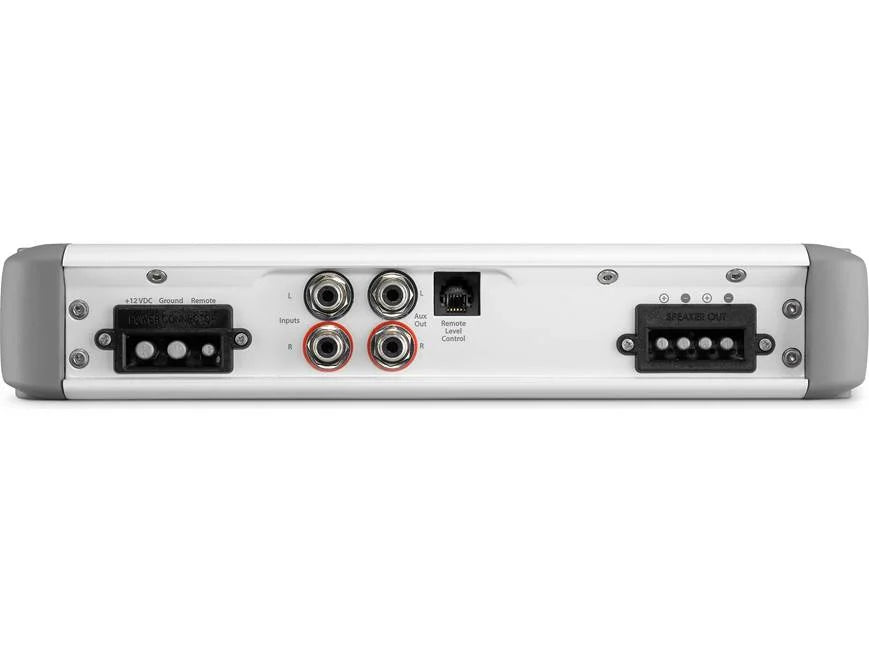

  • Connections & Audio Routing
    Power Input
    CH 1 Input (RCA)
    Remote Input
    CH 1 Output
  • Power Input
    11-14.5 V DC
    Minimum Wiring: 4awg
    R.I.P.S Power Supply
  • Water Rating
    Not Rated
