JL Audio  |  SKU: JLA/010-03325-00

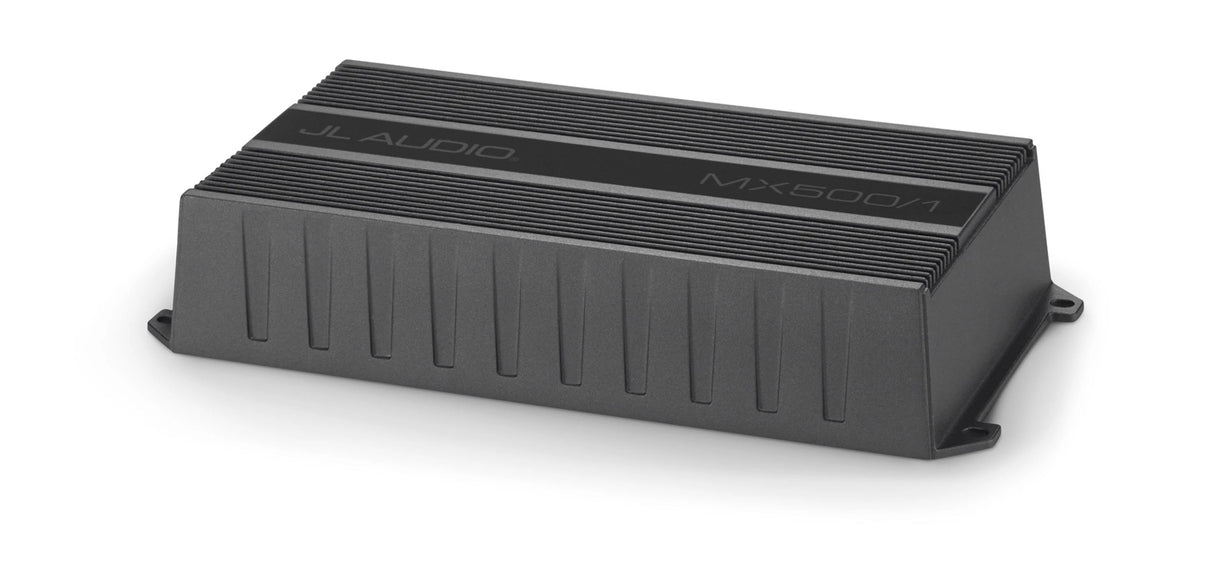

MX500/1

Compact 500w Monoblock Amplifier

Regular price $52999

Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.

Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.


Barcode: 699440984072
0.01 lb
  • Model
    98407
  • Product Series
    JL MX
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    4? = 300 W x 1
    2? = 500 W x 1
    Bridged @ 4? = N/A

    12.5v Output:
    4? = 250 W x 1
    2? = 400 W x 1
    Bridged @ 4? = N/A
  • Processing
    Frequency Response: 20 Hz - 12 kHz
    Signal to Noise Ratio (Highest Rated Power): 97 dB
    Signal to Noise Ratio (1 W): 70 dB
    THD+N: 1% @ 2?
    Damping Factor (4?): 115/50 Hz
    Damping Factor (2?): 54/50 Hz
  • Filters
    Input Channel Modes: No
    Filter Modes: Off / LPF
    Filter Frequency: 40 Hz - 400 Hz
    Filter Slope: 24 dB/octave
    Infrasonic Filter: No
    Bass Boost: Yes (0 - +12dB @ 43Hz)
    Pass-Through Pre Out: No
    Remote Level Control: Yes
    Output Polarity Switch: Yes
  • Physical
    Height: 1.77" (45 mm)
    Width: 9.33" (237 mm)
    Depth: 4.50" (115 mm)
  • Connections & Audio Routing
    Harness:
    Power Input
    CH 1 Input (RCA)
    Remote Input
    CH 1 Output
  • Power Input
    11-15 V DC
  • Water Rating
    IPx7
