JL Audio  |  SKU: JLA/010-03326-00

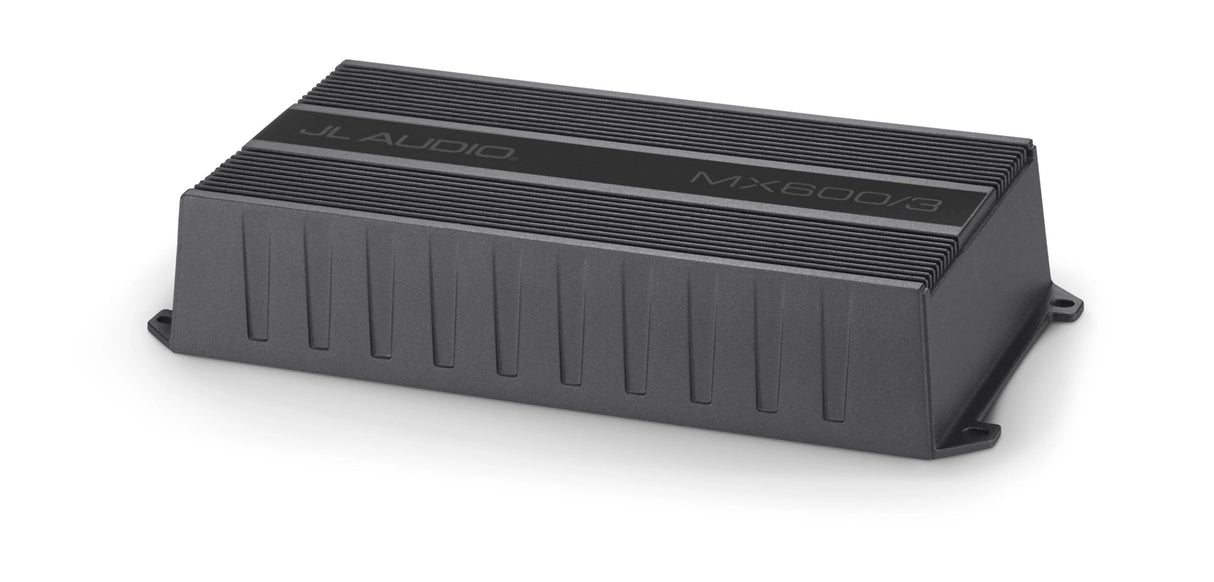

MX600/3

Compact 600w 3ch Amplifier

Regular price $57999

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.

Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.


Barcode: 699440984096
0.01 lb
  • Model
    98409
  • Product Series
    JL MX
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    Main Ch:
    4? = 75 W x 2
    2? = 100 W x 2
    Subwoofer Ch:
    4? = 250 W x 1
    2? = 400 W x 1

    12.5v Output:
    Main Ch:
    4? = 50 W x 2
    2? = 80 W x 2
    Subwoofer Ch:
    4? = 200 W x 1
    2? = 300 W x 1
  • Processing
    Frequency Response: 20 Hz - 20 kHz
    Signal to Noise Ratio (Highest Rated Power): 88 dB
    Signal to Noise Ratio (1 W): 68 dB
    THD+N: 1% @ 2?
    Damping Factor (4?): Not Rated
    Damping Factor (2?): Not Rated
  • Filters
    Input Channel Modes: 2ch / 4ch
    Filter Modes:
    Main Channels: Off / LPF / HPF
    Sub Channel: Off / LPF
    Filter Frequency:
    Main Channels: 40 Hz - 400 Hz
    Sub Channel: 40 Hz - 400 Hz
    Filter Slope:
    Main Channels: 12 dB/octave
    Sub Channel: 12 dB/octave
    Infrasonic
  • Physical
    Height: 1.77" (45 mm)
    Width: 9.33" (237 mm)
    Depth: 4.50" (115 mm)
  • Connections & Audio Routing
    Harness:
    Power Input
    CH 1/2 Input (RCA)
    CH 3/4 Input (RCA)
    Sub Input (RCA)
    Remote Input
    CH 1/2 Output
    CH 3/4 Output
    Sub Output
  • Power Input
    11-15 V DC
  • Water Rating
    IPx7
