JL Audio  |  SKU: JLA/010-03335-00

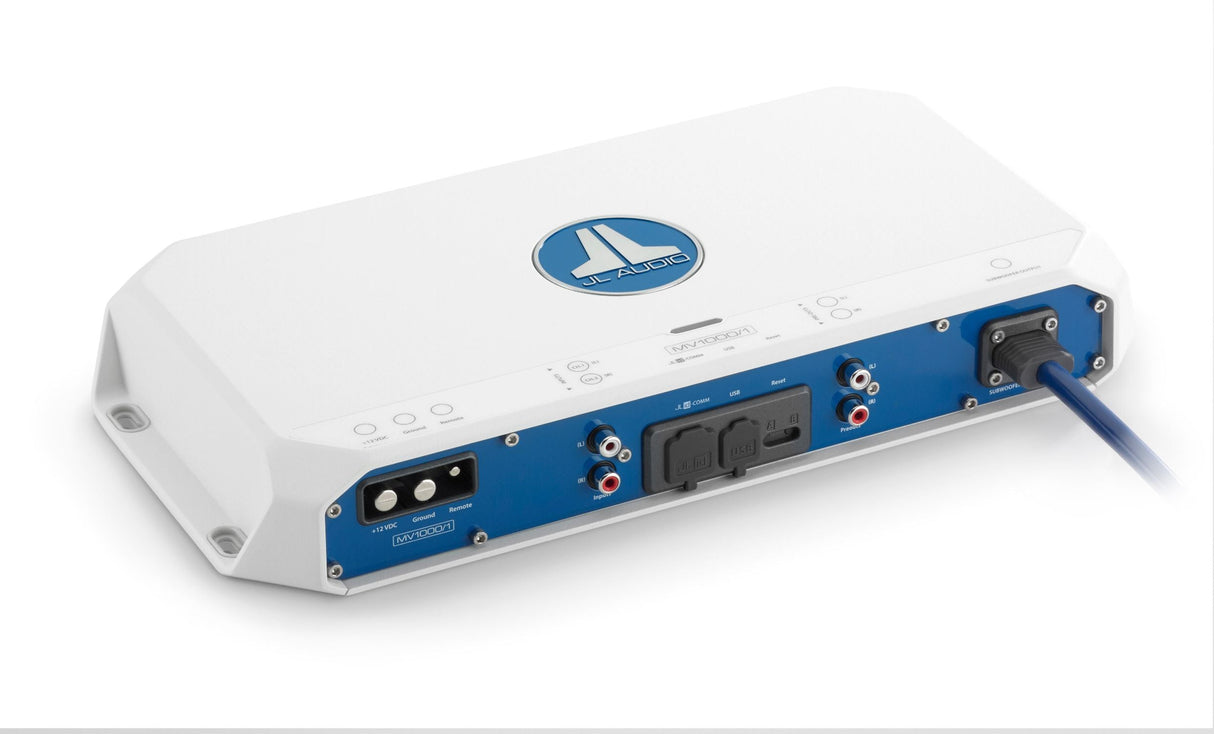

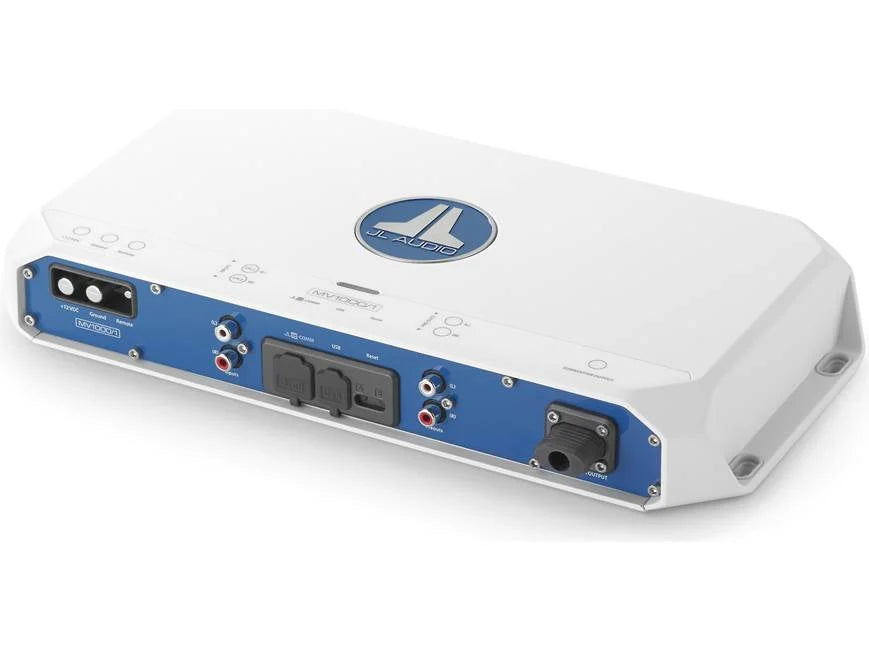

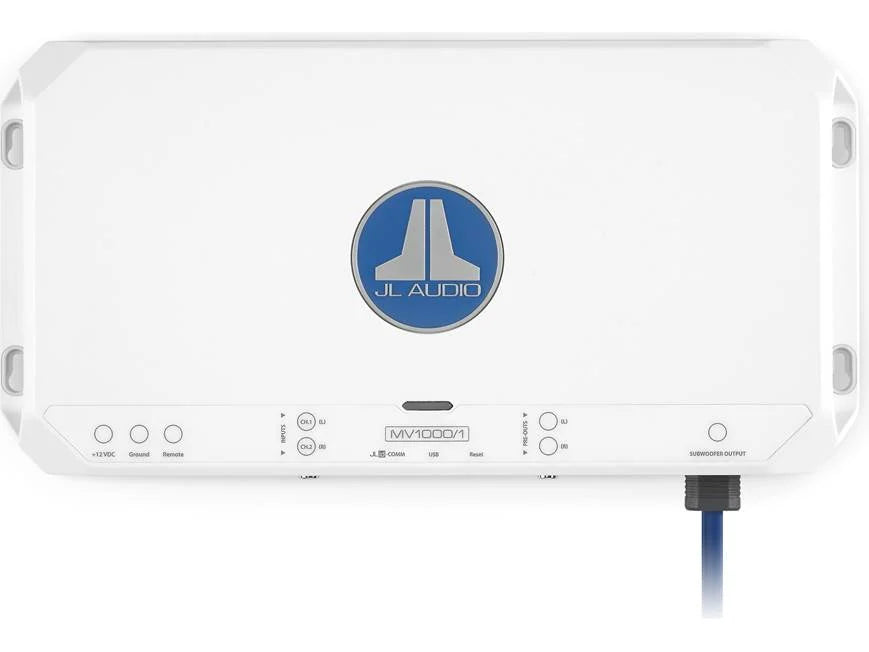

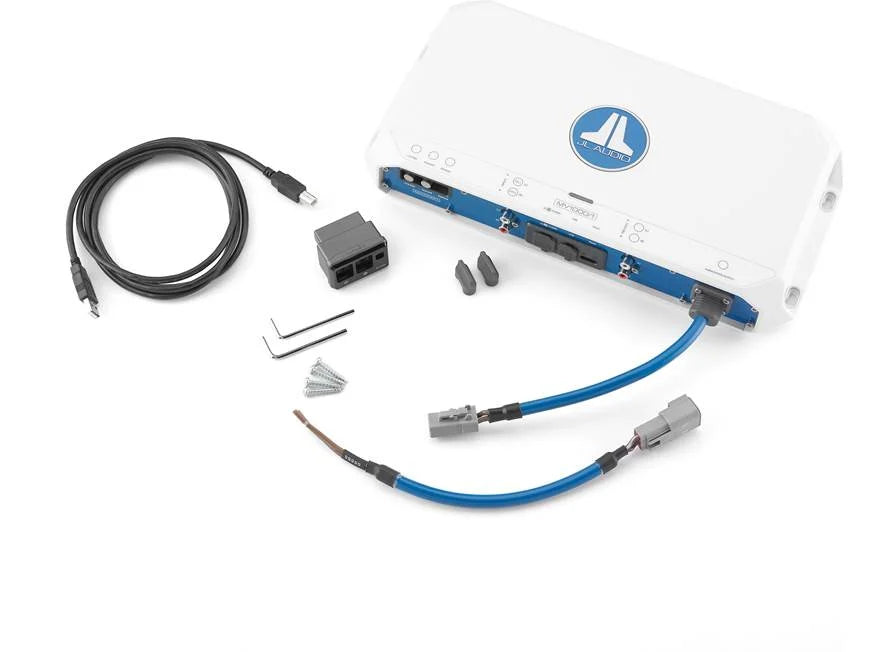

MV1000/1

1000w Monoblock Amplifier w/ Integrated DSP

Regular price $1,24999

MV monoblock subwoofer amplifiers are engineered to deliver outstanding bass performance and fidelity, with exceptional efficiency in marine applications.

All MV monoblock amplifiers are specifically designed to receive their input signals from the pre-outs of a full-range MVi amplifier, from which they will also receive all signal processing. For this reason, MV monoblock amplifiers have no onboard signal processing, other than a basic input sensitivity setting.

Instead of traditional control knobs and switches, MV amplifiers are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Equipped with an exclusive, low-frequency variant of our NexD2™ switching amplifier technology, the MV1000/1 monoblock subwoofer amplifier generates up to 600 watts into 4 ohms, or a stunning 1000 watts into 2 ohms. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV1000/1 is outfitted with corrosion-resistant hardware and connectors.


Barcode: 699440986458
0.02 lb
  • Model
    98645
  • Product Series
    JL MV
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    4? = 600 W x 1
    2? = 1000 W x 1
    Bridged @ 4? = N/A

    12.5v Output:
    4? = 500 W x 1
    2? = 800 W x 1
    Bridged @ 4? = N/A
  • Processing
    Frequency Response: 12 Hz - 500 Hz
    Signal to Noise Ratio (Highest Rated Power): 87 dB
    Signal to Noise Ratio (1 W): 60 dB
    THD+N: 1% @ 2?
    Damping Factor (4?): 400/50 Hz
    Damping Factor (2?): 300/50 Hz
  • Filters
    Input Channel Modes: Yes (Software Controlled)
    Input Voltage: Software Controlled
    Filter Modes: Software Controlled
    Filter Frequency: Software Controlled
    Filter Slope: Software Controlled
    Infrasonic Filter: Software Controlled
    Bass Boost: Software Control
  • Physical
    Height: 2.05" (52 mm)
    Width: 13.96" (355 mm)
    Depth: 6.93" (176 mm)

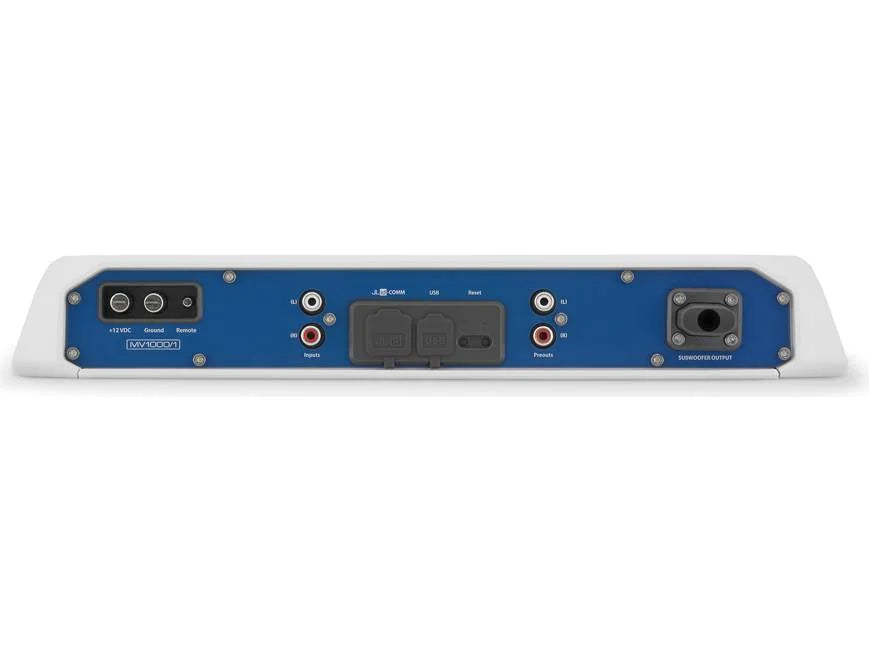

  • Connections & Audio Routing
    Power Input
    CH 1 Input (RCA)
    JLid Comm Port
    USB
    CH 1 Output
    Pre-Out
  • Power Input
    11-14.5 V DC
    Minimum Wiring: 4awg
  • Other
    Requires TUN Setup
  • Water Rating
    IPx2 (Connections Down)
