JL Audio  |  SKU: JLA/010-03339-00

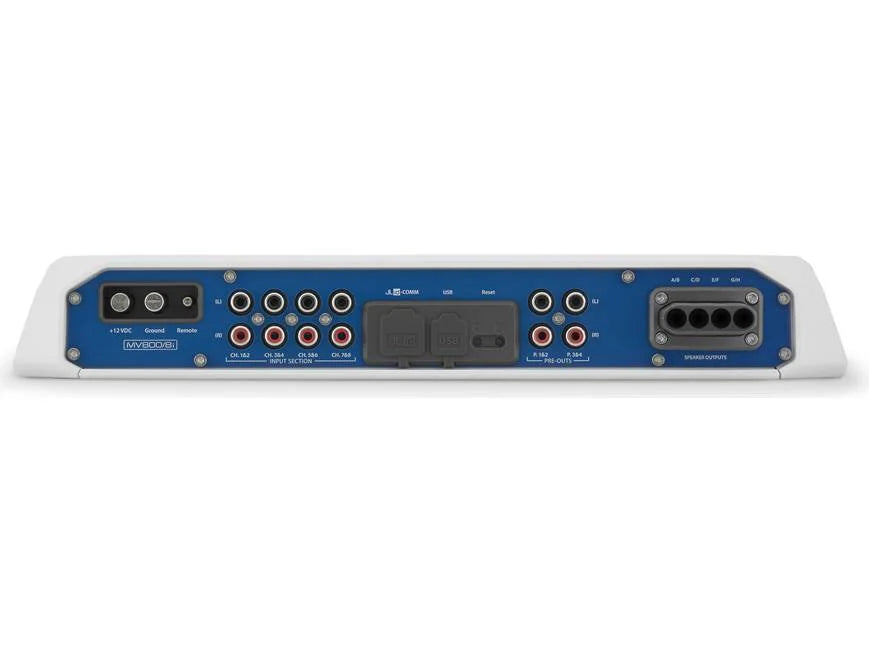

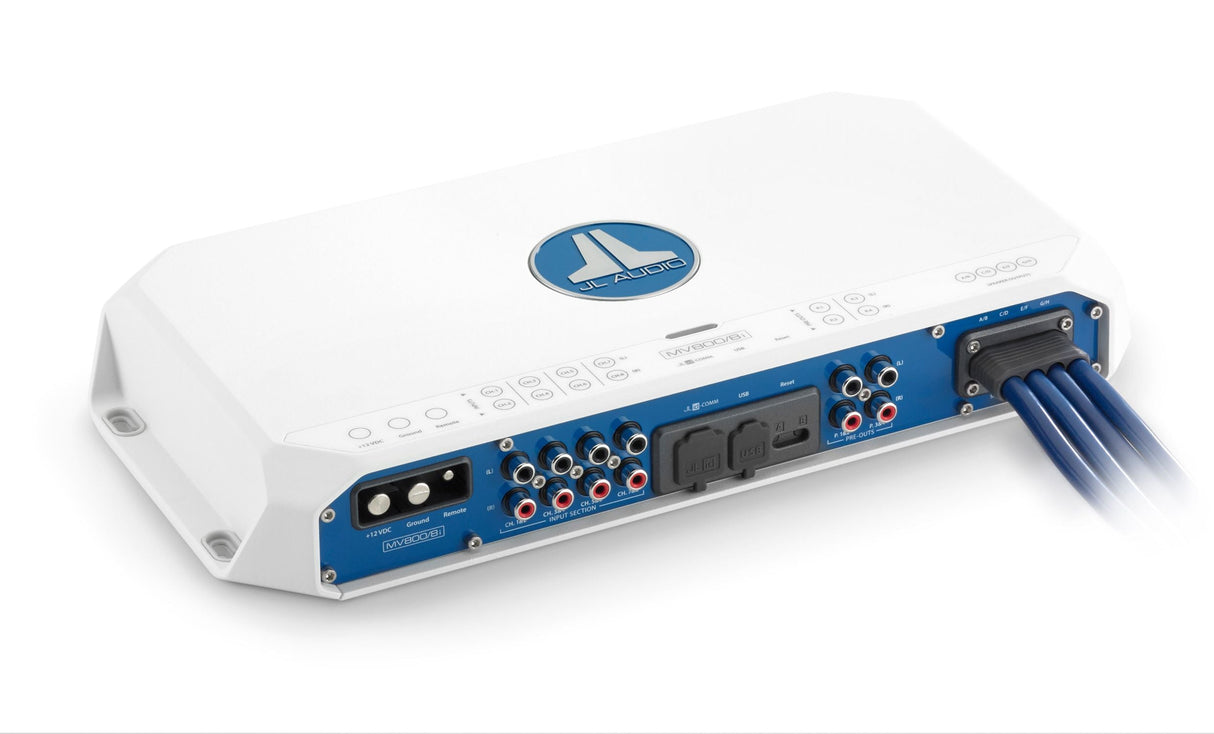

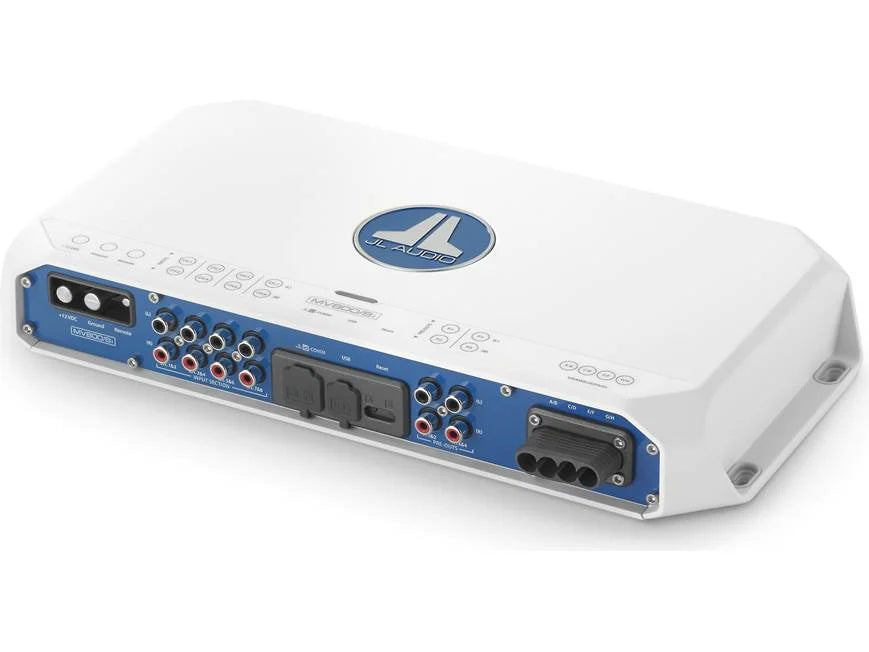

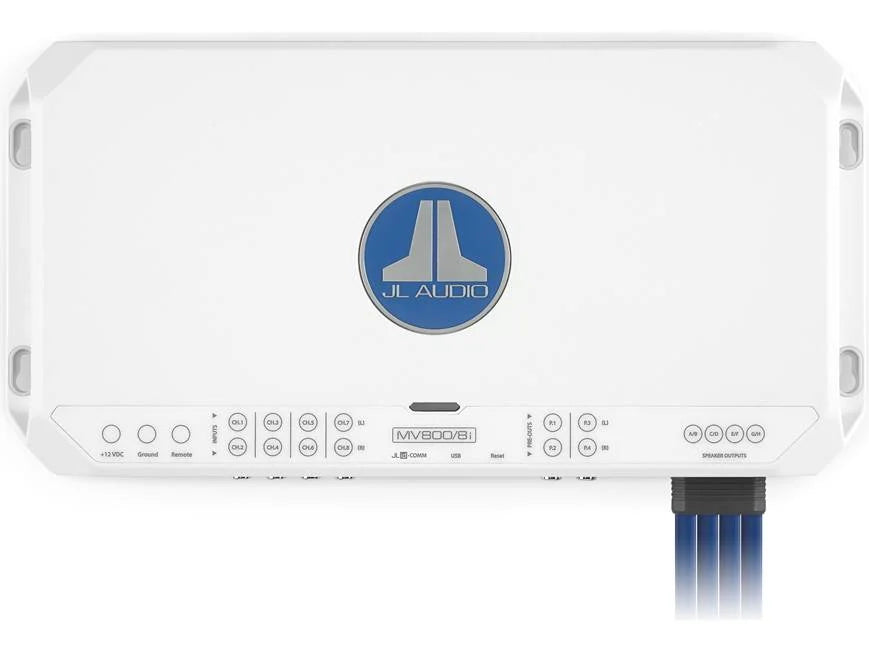

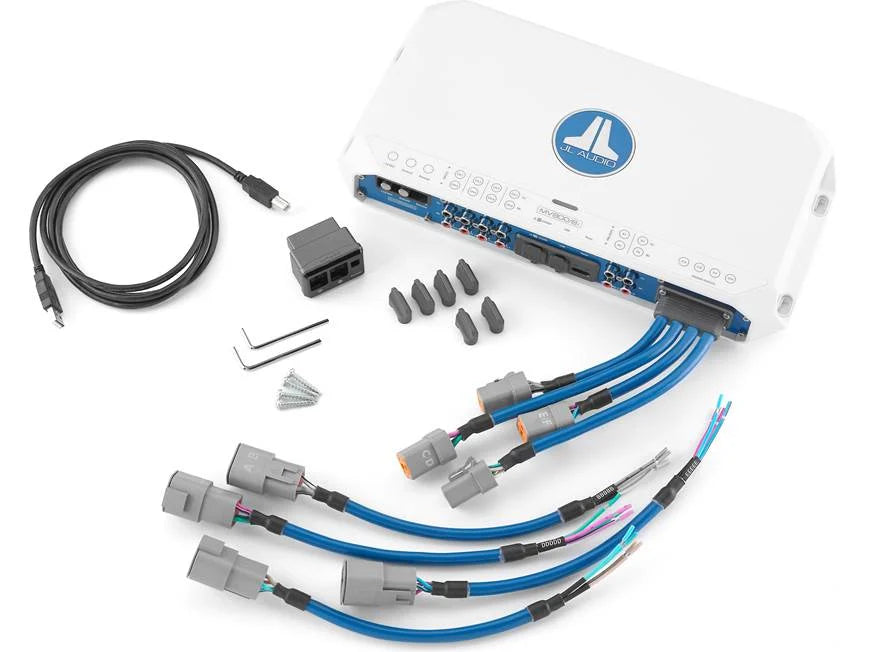

MV800/8i

800w 8ch Amplifier w/ Integrated DSP

$1,64999

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Outfitted with our second-generation NexD2™ technology, the MV800/8i produces up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, generating up to 200 W x 4.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV800/8i is outfitted with corrosion-resistant hardware and connectors.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Barcode: 699440986496
0.02 lb
  • Model
    98649
  • Product Series
    JL MV
  • Power Output
    Amplifier Type: Class D

    14.4v Output:
    4? = 75 W x 8
    2? = 100 W x 8
    Bridged @ 4? = 200 W x 4

    12.5v Output:
    4? = 60 W x 8
    2? = 90 W x 8
    Bridged @ 4? = 180 W x 4
  • Processing
    Frequency Response: 12 Hz - 21 kHz
    Signal to Noise Ratio (Highest Rated Power): 99 dB
    Signal to Noise Ratio (1 W): 76 dB
    THD+N: 1% @ 2?
    Damping Factor (4?): 100/50 Hz
    Damping Factor (2?): 50/50 Hz
  • Filters
    Input Channel Modes: Yes (Software Controlled)
    Input Voltage: Software Controlled
    Filter Modes: Software Controlled
    Filter Frequency: Software Controlled
    Filter Slope: Software Controlled
    Infrasonic Filter: Software Controlled
    Bass Boost: Software Control
  • Physical
    Height: 2.05" (52 mm)
    Width: 13.96" (355 mm)
    Depth: 6.93" (176 mm)
  • Connections & Audio Routing
    Power Input
    CH 1/2 Input (RCA)
    CH 3/4 Input (RCA)
    CH 5/6 Input (RCA)
    CH 7/8 Input (RCA)
    JLid Comm Port
    USB
    CH 1/2 Output
    CH 3/4 Output
    CH 5/6 Output
    CH 7/8 Output
    Pre-Out (2)
  • Power Input
    11-14.5 V DC
    Minimum Wiring: 4awg
  • Other
    Requires TUN Setup
  • Water Rating
    IPx2 (Connections Down)
