Fusion | SKU: FUS/010-02569-00 | Barcode: 753759269753

AP-DA214

Name: AP-DA214
Brand: Fusion
SKU: FUS/010-02569-00
Price: 199.99 USD
Availability: InStock

Apollo Series 2-Channel Zone Amplifier

$199⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The amplifier's circuit board has been specially coated to provide extra protection from the marine elements.

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

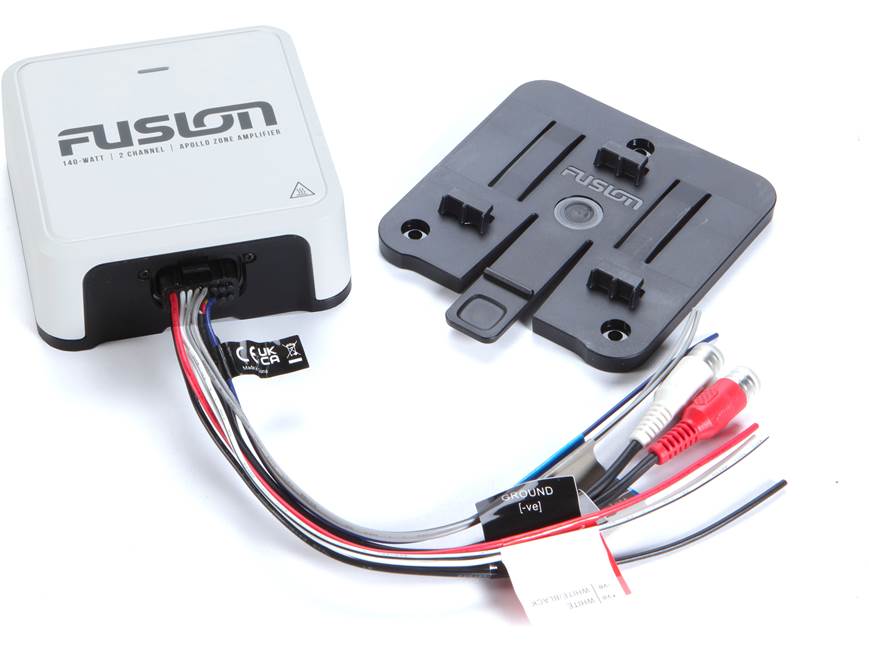

Easily install the amplifiers on board with the included mounting brackets.

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It's compatible with 12- and 24-volt electrical systems.

Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) required.

Specifications

Product Series

Apollo
MPN

010-02569-00
Physical

W: 3.94" (100 mm)
H: 3.94" (100 mm)
D: 1.57" (40 mm)
* Mounting Bracket Adds 8mm To Depth *
Unit Weight: 1.01 lb (460 g)
Amplifier Power

Amplifier Class: D
Continuous RMS Power:
4Ω @ 14.4v = 20 W x2
2Ω @ 14.4v = 30 W x2
4Ω Bridged @ 14.4v = N/A
4Ω @ 12.5v = Not Rated
2Ω @ 12.5v = Not Rated
4Ω Bridged @ 12.5v = N/A
Amplifier Processing

Frequency Range: 20 Hz - 20 kHz
THD+N: <1% @ 2Ω /Ch.
S/N Ratio (Highest Rated Power): 99 dB
S/N Ratio (1w): 86 dB
Damping Factor:
4Ω: Not Rated
2Ω: Not Rated
Amplifier Filters

Fusion DSP
Setup Through Fusion Link App
Power

Power Input: 10.8 V - 32 V DC
Power Draw:
- Standby: 1 mA
- On (No Audio): < 0.04A
- Max: 10 A
Fuse: 16A Electronic Fuse
Other

* Requires Fusion DSP Enabled Radio *
IP Rating

IPx7
