Garmin  |  SKU: GAR/010-00705-48

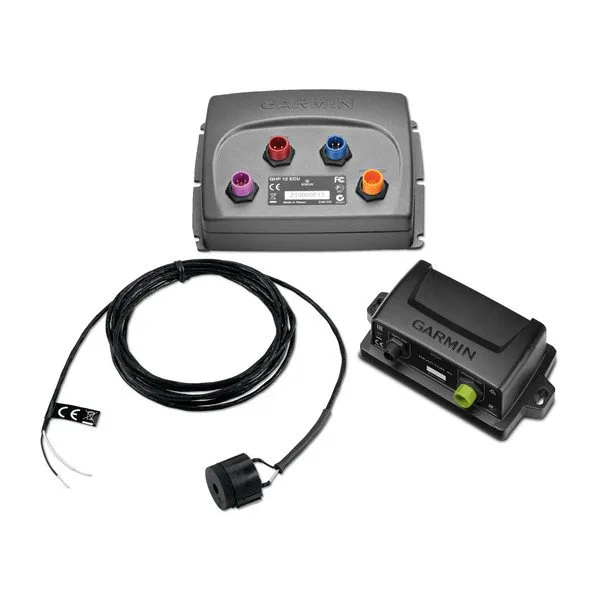

Reactor 40 Mechanical/Retrofit/Solenoid Corepack

Reactor 40 Retrofit Autopilot Kit

$1,79999

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for powerboats and sailboats, the Reactor 40 autopilot gives you the extra hand you need, so you can explore paradise worry-free.

The Reactor 40 mechanical/retrofit/solenoid corepack works with a wide variety of steering systems

Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.

Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.



Autopilot Kit
Barcode: 753759207946
15.0 lb
  • Product Series
    Garmin Reactor 40
  • Physical
    CCU dimensions: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)
    ECU dimensions: 6.6 " x 4.6 " x 2.1 " (16.8 x 11.7 x 5.3 cm)
  • Power
    Power Input: 10 V to 30 V

    Maximum sustained motor current: 15A
    Maximum instantaneous motor current: 40A
    Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)
  • Other
    THREE CLASS DRIVES: Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.
  • Temperature Range
    -15° C to 60 C° (5° F to 140° F)
