Garmin | SKU: GAR/010-02794-01 | Barcode: 753759302856

Reactor 40 SmartPump v2 Autopilot + GHC50

Name: Reactor 40 SmartPump v2 Autopilot + GHC50
Brand: Garmin
SKU: GAR/010-02794-01
Price: 4399.99 USD
Availability: InStock

Hydraulic SmartPump v2 Autopilot w/ GHC50

$4,399⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.

POWERBOAT AND SAILING FEATURES

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+^™ features.

Specifications

Product Series

Reactor 40
MPN

010-02794-01
Physical

Dimensions:
- Pump:
H: 7 3/4" (197 mm)
W: 7 1/2" (190 mm)
D: 9 5/8" (244 mm)
- CCU
H: 2.0" (50 mm)
W: 6.7" (171 mm)
D: 3.5" (88 mm)

Weight:
- Pump: 16.5lbs
- CCU: .4lbs (180g)
Power

Power Input: 11.5-30 Vdc
Power Draw:
- Standby - less than 1 A
- Engaged - 5-10 A
- Peak - 34 A
Fuse: 40A ATC
Other

Flow Rate: Configurable from 0 to 2.4 L per minute
Steering Cylinder Size: 4-24 cu in; 7 second lock to lock up to 17 cu in
Temp Range

5°F to 131°F (from -15°C to 55°C)

Reviews (0)

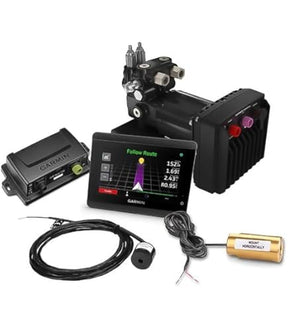

In The Box

In The Box:

GHC™ 50
SmartPump v2
Reactor 40 CCU (Course Computer Unit)
ECU (Electronic Control Unit) power cable
Interconnect cable
Shadow Drive
Buzzer
NMEA 2000® drop cables (2 meters)
NMEA 2000 power cable
NMEA 2000 T-connectors
Male and female terminators
Document

Package Dimensions:
