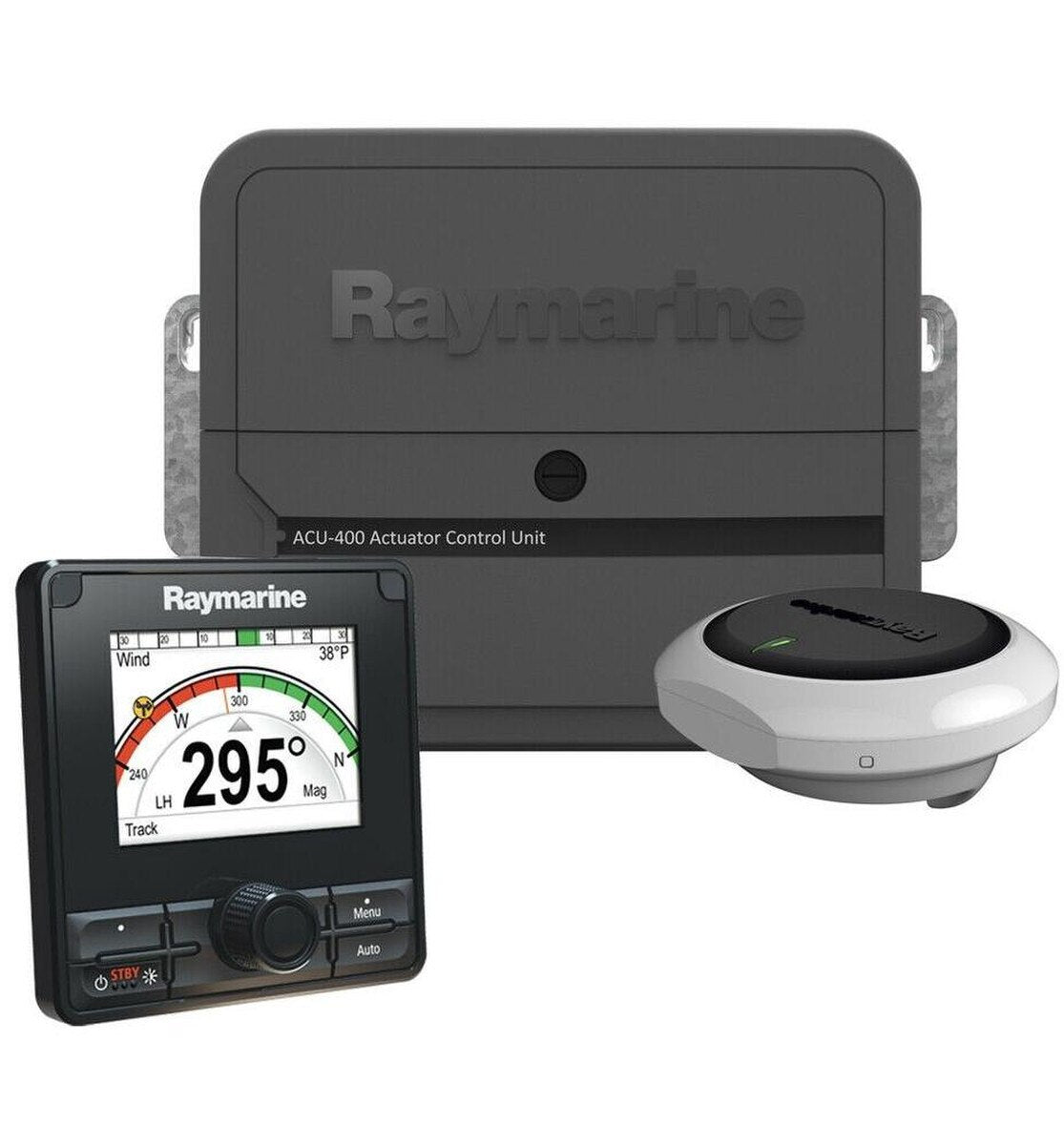

Raymarine EV-400 Power Evolution Autopilot

EV-400 Power Evolution Autopilot

*Requires Type 2 or Type 3 drive units

Features:

• Heavy-duty, 30 Amp output for Type 3 Drives or Constant Running Pumps
• Evolution Ai for superior performance
• NO calibration required
• SeaTalk^ng Network Compatible
• ACU-400 auxiliary power to SeaTalk^ng network
• Includes p70R Autopilot Controller

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70Rs Autopilot Control Head

The p70R has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-400 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Support Drive Units

Heavy-duty, 30 Amp output for Type 3 Drives or Constant Running Pumps

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

In The Box:

EV-1 Sensor Core
p70Rs Autopilot Control Head
ACU-400 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
Evolution Cabling Kit
EV Unit O-Ring Pack (set of 2)
Wall Mounting Bracket

Package Dimensions:

21" x 17" x 8"

Available Method:

• Ground
• 2 Day

• Installation Guide
• Brochure
