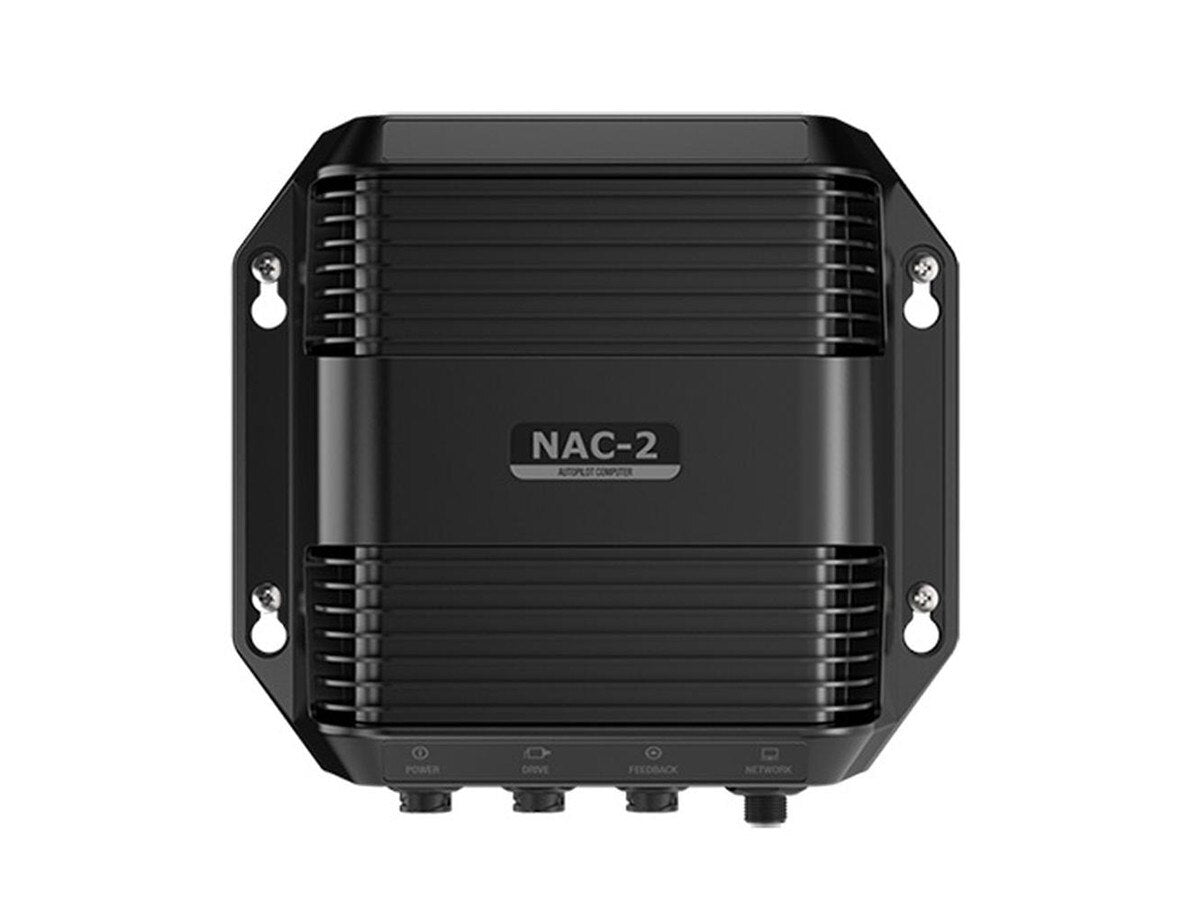

NAC-2

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

• Recommended for boats up to 10 metres (33 feet) in length
• Plug & Play installation
• Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
• 12 or 24 V DC input 8A continuous output, 12A peak
• Solenoid output capable
• 3 A clutch output
• Optional Auto/Standby Switch
• Drive & Processing circuitry and components identical to commercial autopilots
• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
• Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Resistive Rudder -Feedback. New SD10 Mechanical Drive plugs straight in to drive and RFU connectors
