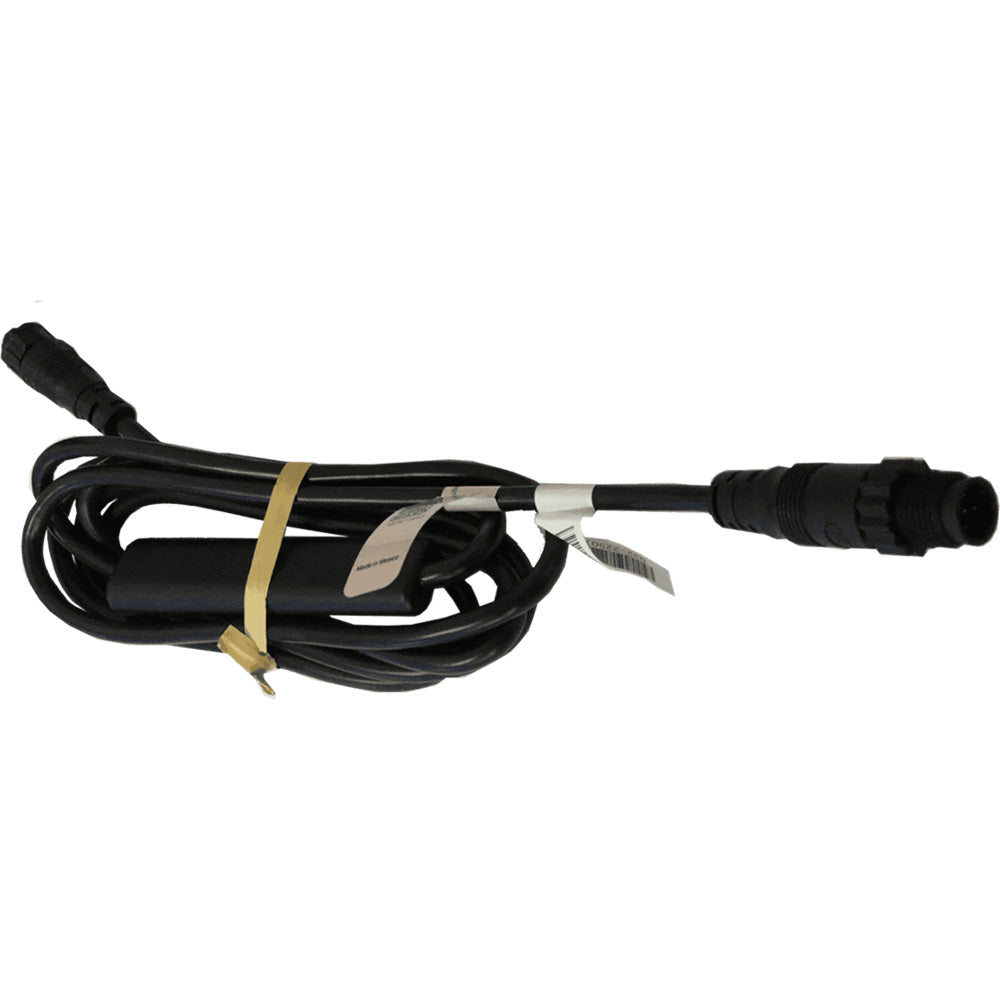

WS310 Wired Interface
WS310 (wired) Interface for use with WS310 Wind Sensor, allows connection to your NMEA 2000® network.
Features:
- Interfaces a WS310 wind sensor to an NMEA 2000 network
Specifications
Specifications
Identification
| MPN | 000-14389-001 |
|---|---|
| Barcode | 9420024171486 |
Control & Connectivity
| NMEA 0183 Sentences supported | MWV, R |
|---|---|
| NMEA 2000 Connectivity | 1 x Micro-C port, 1 LEN |
Electrical
| Supply Voltage | 12V DC (9 - 16V DC) |
|---|
Performance
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
|---|---|
| Storage Temperature Range | -20°C to +60°C (4°F to 140°F) |
Certifications & Protection
| Waterproof Rating | IPX7 |
|---|---|
| Warranty | 2 Years |
General
| Compass Safe | 300mm (12") |
|---|
Physical
| Dimensions W x H x D | 90 x 20 x 10mm (3.5 x 0.8 x 0.4") |
|---|
