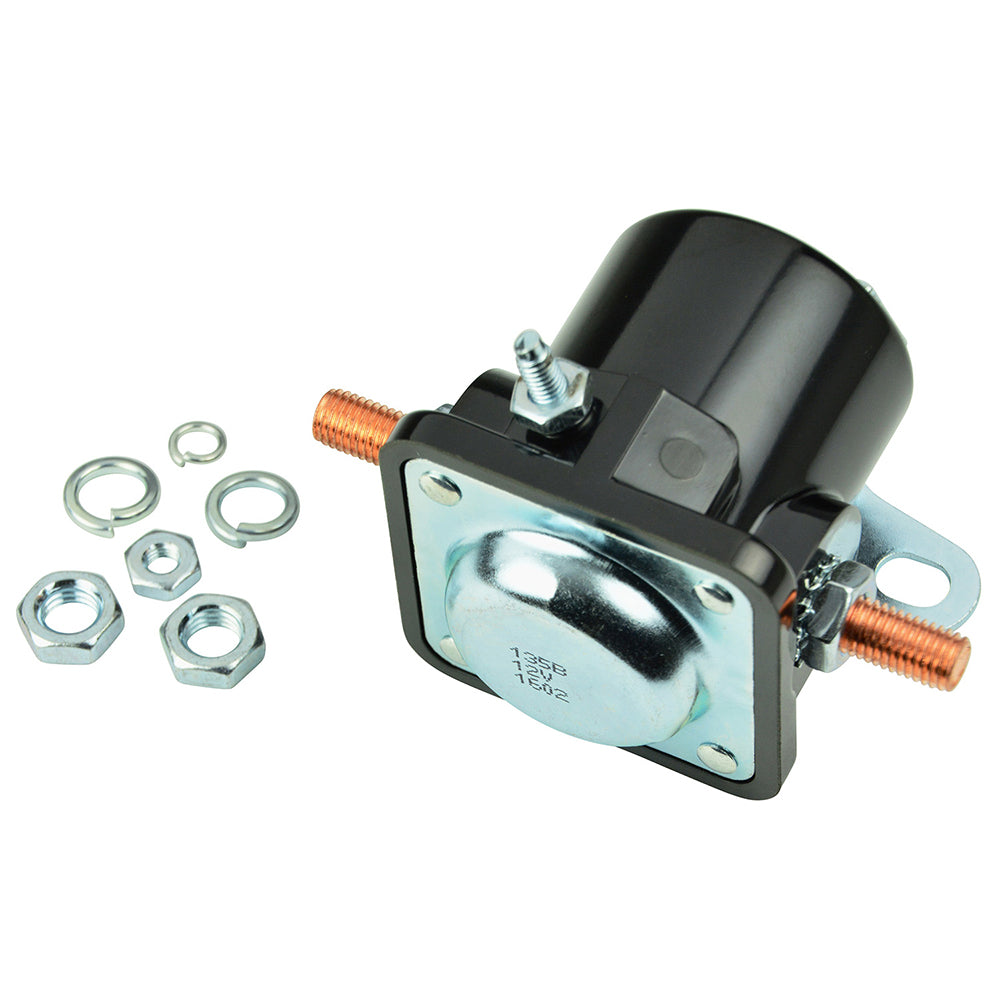

BEP 100A Engine Starting Intermittent Duty Solenoid

100A Engine Starting Intermittent Duty Solenoid

Intermittent switching of high amperage loads with a low amperage on-off switch.

Features:

• Rated at 750A make/100A break, this solenoid is for intermittent use only: 10 seconds ON, 20 minutes OFF (ideal for engine cranking)
• Signal voltage of 12V DC and contact voltage of 6-12V DC
• #10/32 thread signal terminals
• Copper 5/16”-24 thread contact terminals
• Bracket mounting holes 5/16” x 19/32”, 2-13/64” on center
• Same as Cole Hersee part number M-200

In The Box:

Package Dimensions:

7" x 4" x 3"

Available Method: Ground

* ALL WARRANTY IS THROUGH MANUFACTURE *
