Blue Sea Systems | SKU: BSS/5052 | Barcode: 632085050528

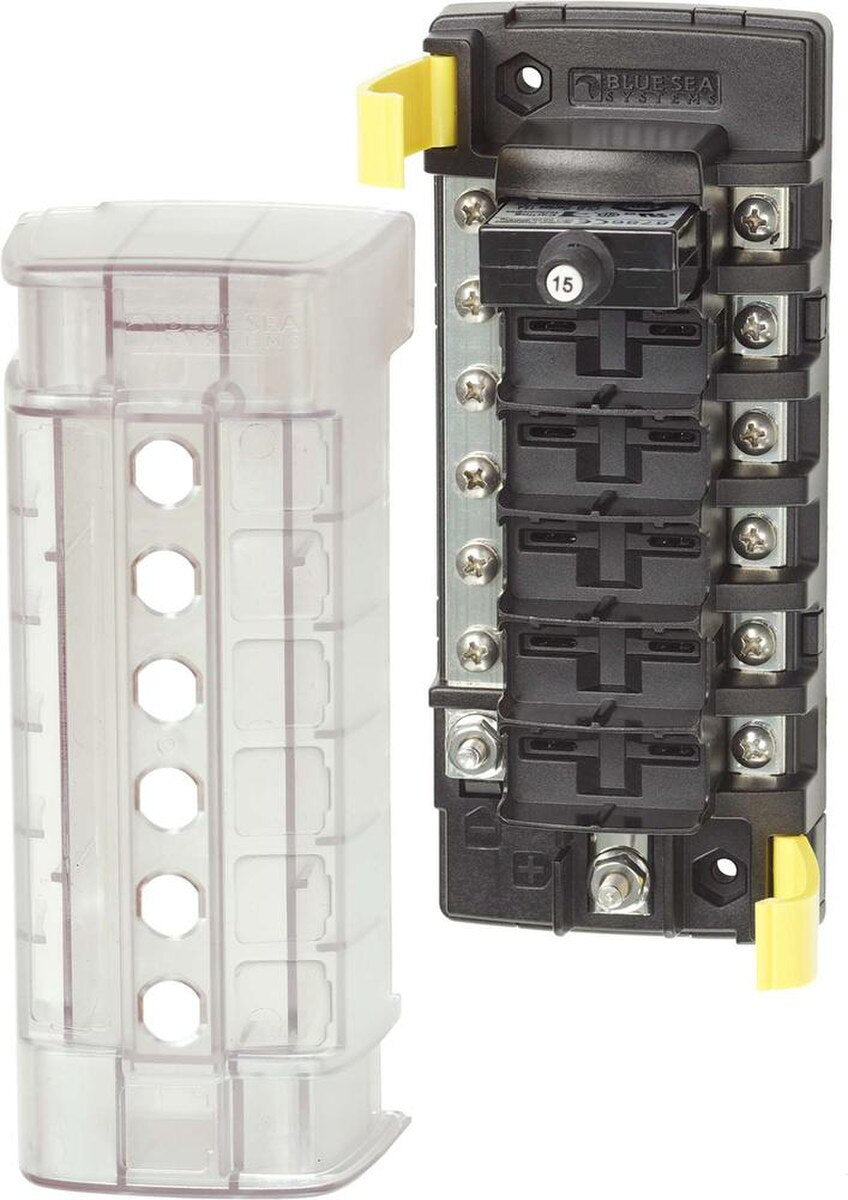

Circuit Breaker Block - 6 Circuit + Ground

6-Circuit Breaker Block w/ Negative Bus

$94⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover
Accepts square labels

Specifications

MPN

5052-BSS
Physical

H: 6.69" (169.9 mm)
W: 2.79" (70.8 mm)
D: 2.60" (65.9 mm)
Weight: 0.75 lbs (0.34 kg)
Power

Max Voltage: 32v DC
Max Current (Block):
Max Current (Circuit): 40 A
Connectivity

Positive Terminal Fasteners: #10-32
Negative Bus Fasteners: #10-32

Reviews (0)

In The Box

In The Box:

Circuit Breaker Block
Cover

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: Lifetime

* ALL WARRANTY IS THROUGH MANUFACTURE *
