Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain
Description
Description

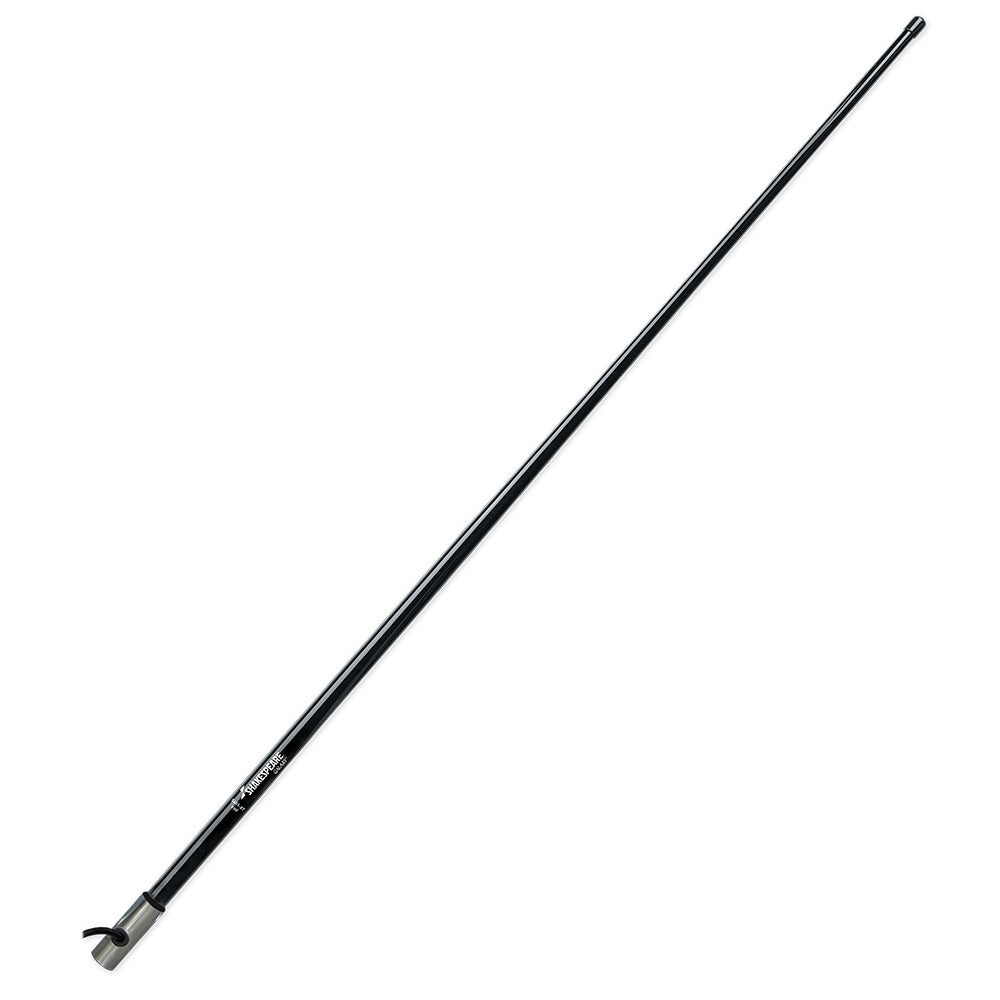

5401-XT Galaxy 4' Antenna - 3dB Gain
This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.
Features:
- Center-fed 1/2 wave coaxial sleeve
- Brass and copper elements for maximum range
- Stainless steel ferrule with standard 1"-14 thread

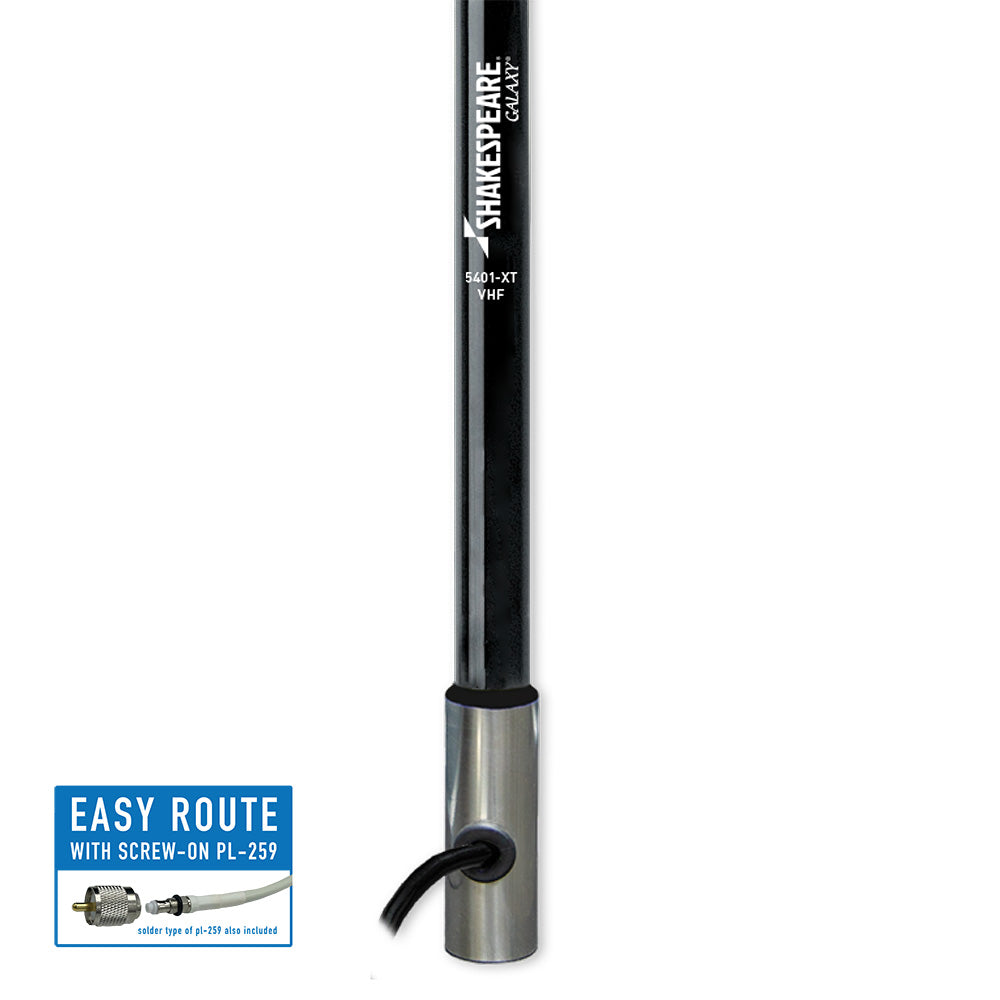

- Includes 20' RG-8/X cable and a PL-259 connector
- One section
- Includes FME Cables
Specifications
Specifications
Identification
| MPN | 5401-XT |
|---|---|
| Barcode | 719441100612 |
Performance
| Frequency | VHF Marine Band |
|---|---|
| Gain | 3 dB |
Physical
| Bandwidth | 5 MHz within 2.0:1 VSWR |
|---|---|
| Height (feet) | 4 |
| Suggested mount | Shakespeare Style 4187 Ratchet Mount |
General
| SWR | Nominally 1.5:1 at 156.8 MHz |
|---|---|
| Max Input (Watts) | 50 watts |
Certifications & Protection
| Shakespeare Limited Warranty | 5 years |
|---|
