Fusion  |  SKU: 010-01969-00

SG-DA41400

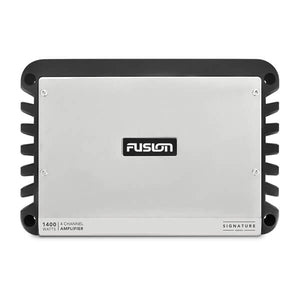

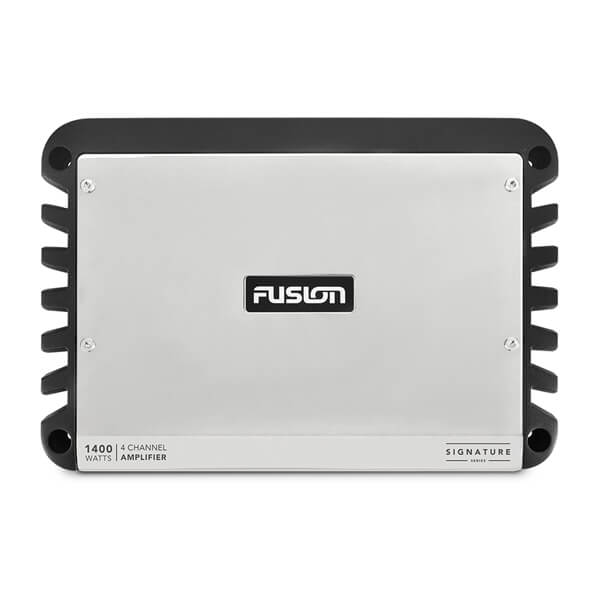

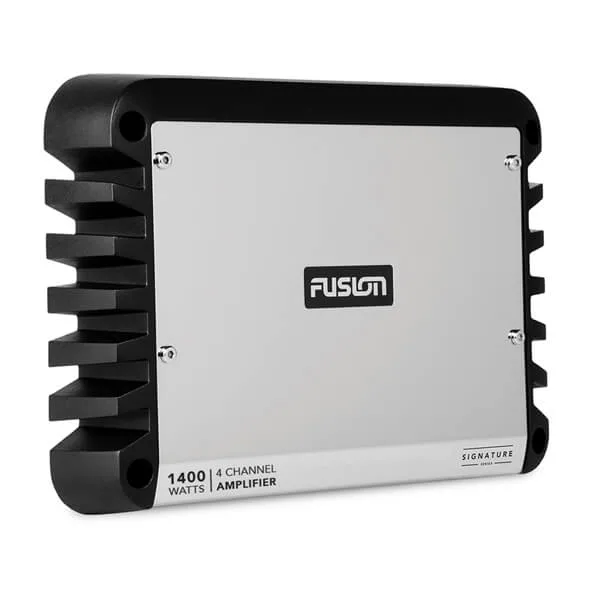

Signature Series 4-Channel Amplifier

$44999

EXPERIENCE THE POWER OF MUSIC

Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available — delivering a Signature performance out on the water.

4ch Amplifier
Barcode: 753759152994
8.0 lb

Release Date:

  • Product Series
    Fusion Signature
  • Power Output
    Amplifier Class: D
    RMS Power Output: (@ 14.4V)
    - 4ohm: 150W x 4
    - 2ohm: 220W x 4
    - 4ohm Bridged: 440W x 2
    Peak Output: 1400 W
    Frequency Response: 10 Hz - 50 kHz (-3 dB, dB @ 4 Ohm rated power)
    Input Sensitivity: 0.3 V - 8 V RMS
  • Processing
    Frequency Range: 10 Hz - 40 kHz
    THD+N: <1% @ 2 Ω per Ch.
    S/N Ratio (Highest Rated Power): 85 dB
    S/N Ratio (1w): 53.1 dB

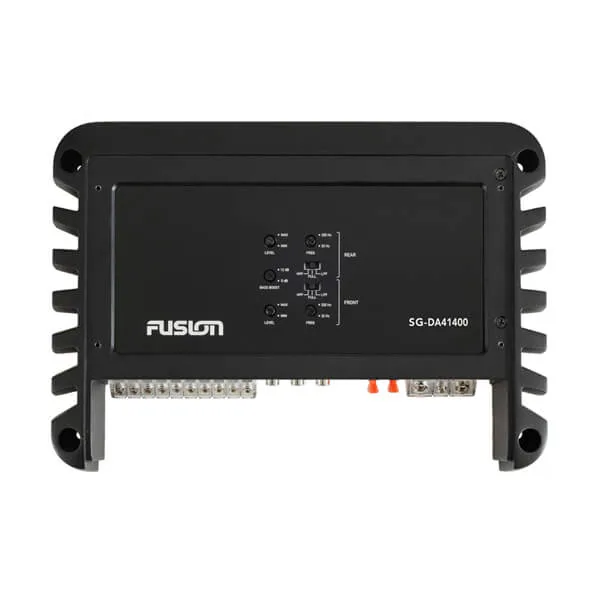

  • Filters
    Filter Mode: HPF/LPF/Full
    Filter Frequency: 32 Hz - 320 Hz
    Filter Slope: 12 dB/Octave
    Infrasonic Filter: No
    Bass Boost: Yes (0-9 dB)
  • Physical
    Dimensions:
    W: 11.81" (300 mm)
    H: 8.27" (210 mm)
    D: 1.97" (50 mm)
    Weight: 7.77 lbs (3.53 kg)

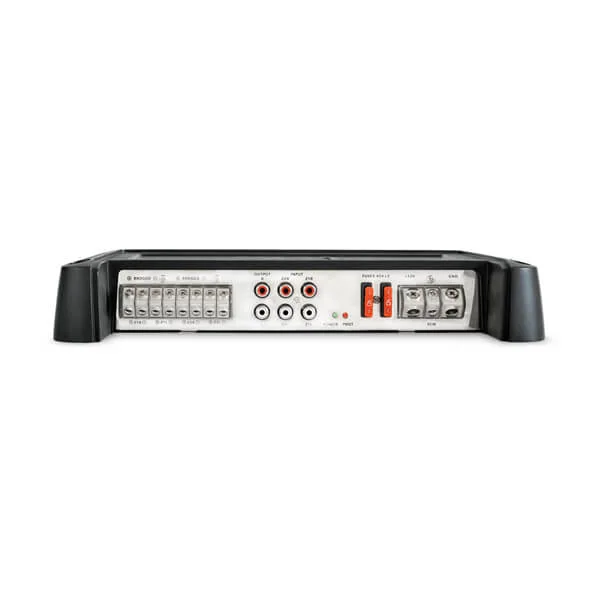

  • Connections & Audio Routing
    Max Wire Size:
    Power: n/a (min. 4awg)
    Speakers: n/a

    Audio Input: RCA
    Input Modes: No
    Remote Level Control: Yes
    Pass Through Preamp Output: None
  • Power Input
    Power Input: 10.8 V - 16 V DC
    Max Power Draw: 80A
    Fuse Rating: x2 40A ATC
  • Water Rating
    Not Rated
