DS18  |  SKU: NXL-X1200.5D

NXL-X1200.5D 5 Channel Amplifier

$59999

DS18’s NXL-X1200.5D offers exceptional performance in a small, waterproof package.
This full range amplifier can be used with subwoofers, mid-ranges, and tweeters, providing crystal clarity at any volume level. Fine-tune your speaker choice with the high pass and low pass filters for an unparalleled audio experience.
Featuring stable and reliable 4-layer PCB layouts, an IP67 waterproof rating for power sports, and an ultra-compact size for easy installation, this NXL Marine Amplifier ensures optimal performance in any environment.


Barcode: 810097260979
7.0 lb
  • Power Output
    RMS Power:
    Main Channels:
    @4ohm: x4 150w
    @2ohm: x4 200w
    Bridged 4ohm: x2 400w
    Subwoofer Channel:
    @4ohm: 350w
    @2ohm: 600w
    SNR 1w @ 4ohm: >85dB
    Efficiency @4ohm: 85%
    THD: < 0.05%
    Frequency Response: 10Hz-20KHz
    Input Level: 200mV - 5V

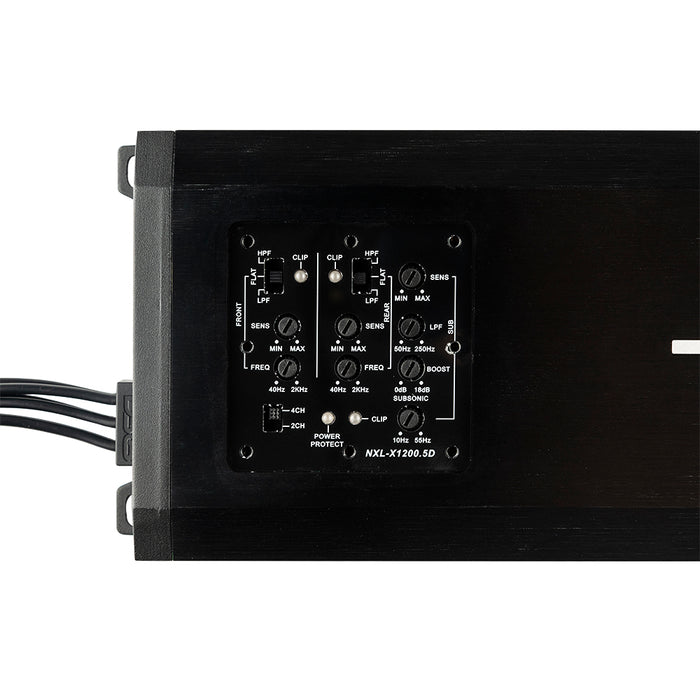

  • Filters
    Filter Mode:
    Main Channels: HPF/LPF/Full
    Subwoofer Channel: LPF
    Filter Range:
    Main Channels: 40Hz - 2KHz
    Subwoofer Channels: 50Hz - 250Hz

    Bass Boost: Yes (Subwoofer Channel)
    Bass Boost Frequency: 42Hz
    Bass Boost Range: 0-18dB
  • Physical
    Dimensions:
    W: 12.67"
    H: 4.4"
    D: 1.77"
    Weight: 6.5 lbs
  • Power Input
    Power Input: 12v
    Fuse: 100A (x2 50A)
  • Water Rating
    IP67
