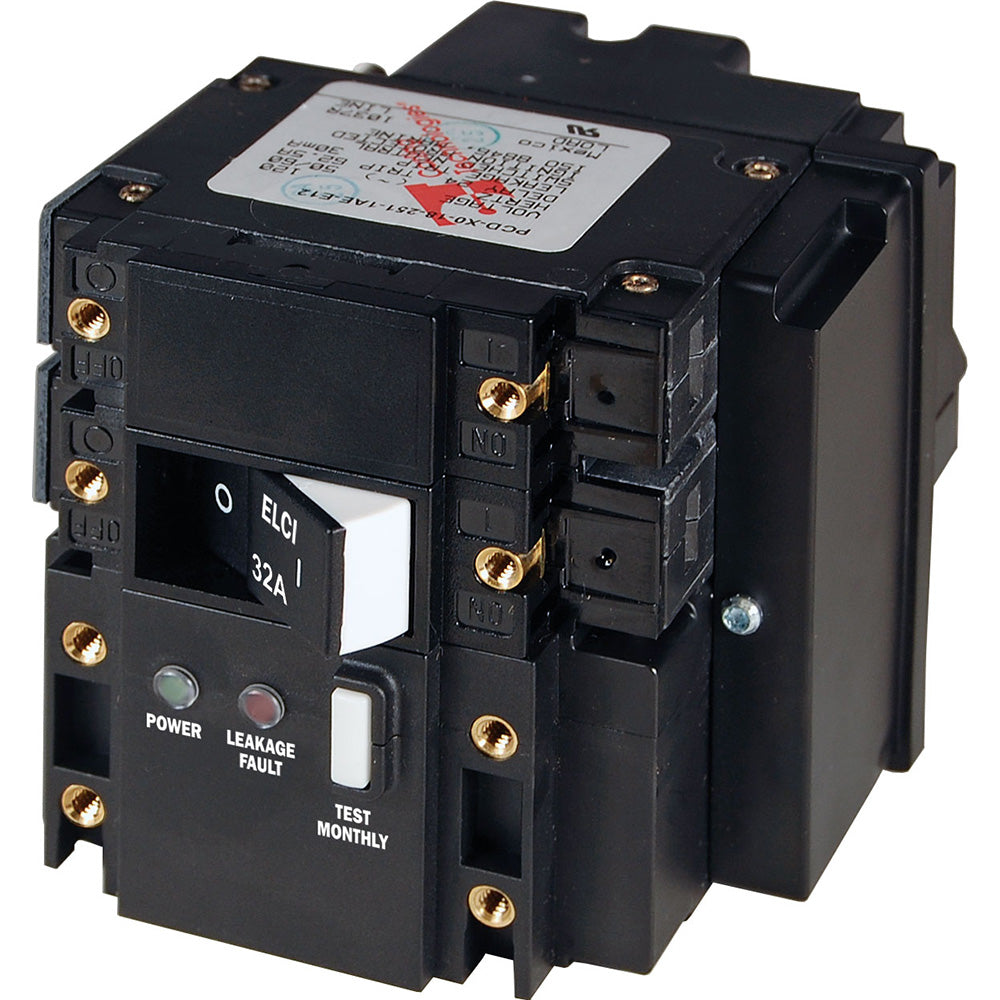

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A
Regular price
$86499
Unit price
SKU:
BSS/3092
Regular price
$86499
Unit price
Description
Description
C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications
Specifications
Identification
| MPN | 3092 |
|---|---|
| Barcode | 632085030926 |
Electrical
| Amperage | 32A |
|---|---|
| Maximum Voltage | 240V AC per pole |
General
| Actuator Style | Flat actuator |
|---|---|
| Poles | 2 |
| Ignition Protected | Yes |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Leakage Trip Amps | 30mA |
Physical
| Interrupt Capacity | 5000A |
|---|---|
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6in-lb (0.68 Nm) |
| Weight | 1.05 lbs (0.48kg) |
Performance
| Minimum Operating Temperature | -35 degrees C |
|---|---|
| Maximum Operating Temperature | 66 degrees C |
Control & Connectivity
| Switching Cycles | 10000 |
|---|
