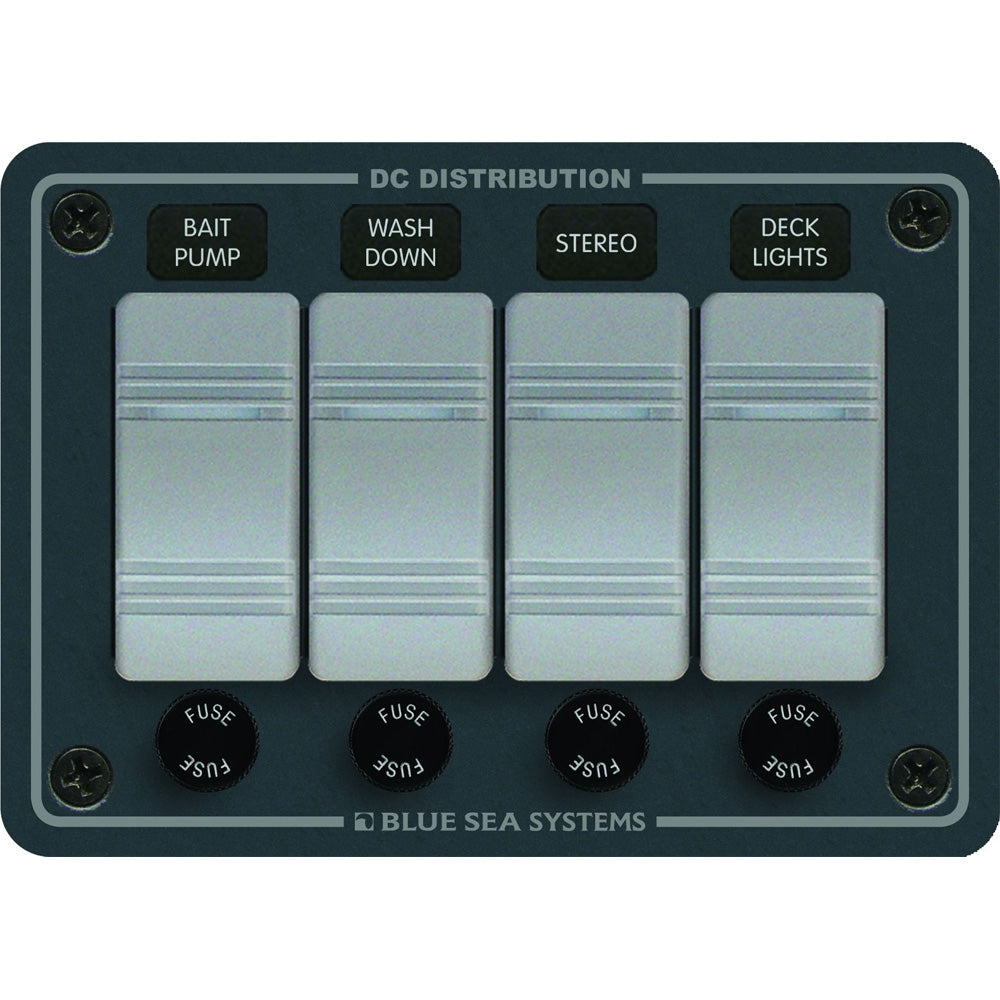

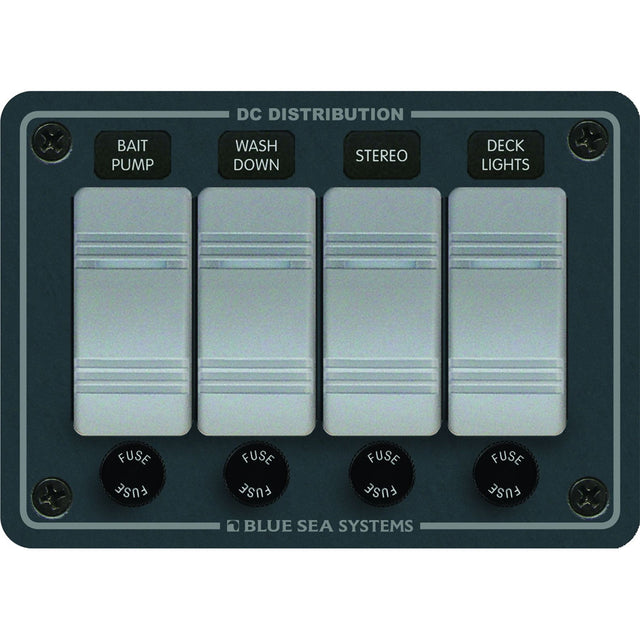

Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey
Regular price
$20299
Unit price
SKU:
BSS/8262
Regular price
$20299
Unit price
Description
Description
8262 Waterproof Panel 4 Position - Slate Grey
Features:
- Designed for flybridge and open cockpit applications
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
Specifications:
Included:
- (4) 5021 Panel Mount AGC/MDL Fuse Holder
- (1) 8214 Black 60 Label Set
Specifications
Specifications
Identification
| MPN | 8262 |
|---|---|
| Barcode | 632085082628 |
Control & Connectivity
| Will withstand the water exposures normally encountered in above deck applications | salt spray, rain, hose washdowns, momentary immersions |
|---|---|
| Switch Rating | 20A @ 12v DC / 15A @ 24v DC |
| (4) 8230 Contura Switch SPST Gray | Off-On |
General
| Weatherproof | Water Resistant |
|---|---|
| Positions | 4 |
Electrical
| Nominal Voltage | 12v / 24v |
|---|
Certifications & Protection
| Panel Cumulative Rating | 45A |
|---|
Physical
| Height | 3.75" |
|---|---|
| Width | 5.25" |
| Depth | 3" |
