Pacer  |  SKU: PACE/WUL14RD-2-500

14awg Striped Primary Wire

14awg Striped Primary Wire (500' Special Order)

$17150
Base Color: Red
Stripe Color: Red
Spool Size

Extra 10% Bulk Discount When You Buy 3 Or More Spools

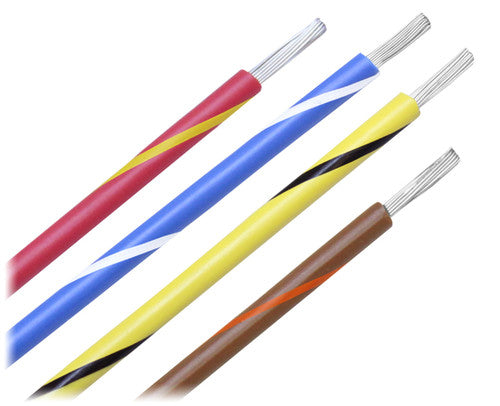

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier which increases job efficiency. All of Pacer's primary wire is constructed in Sarasota FL, USA from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible

Primary Wire
  • Wire Type
    Primary Wire
  • Wire Gauge
    16-14awg
  • Physical Specs
    Diameter: 0.145"
    Stranding: 41/.0100
  • Power
    Max Voltage: 600v
  • Material
    Type III Annealed Finely Stranded Tinned Copper
  • Certifications
    ABYC: E-11.15, Coast Guard: 33 CFR part183.401 Subpart 1, UL Standard 1426 (BC-5W2), UL: AWM 1015/1230
