Simrad | SKU: SIM/000-16298-001 | Barcode: 9420064135738

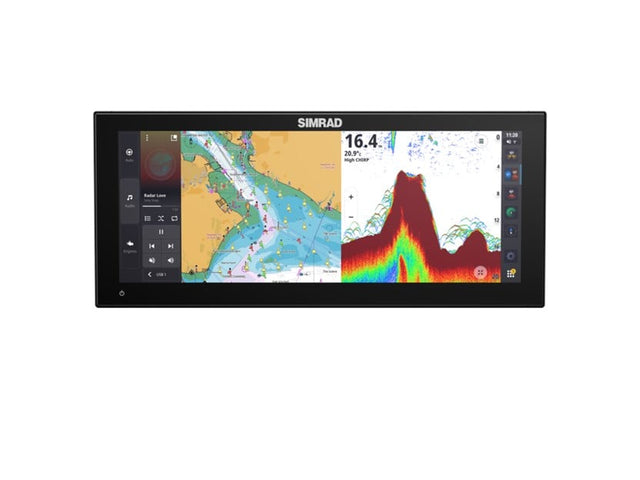

NSX 3015UW

Name: NSX 3015UW
Brand: Simrad
SKU: SIM/000-16298-001
Price: 3399.00 USD
Availability: InStock

Ultra-Wide 15” MFD w/ Discover X Charts

$3,399⁰⁰

Options

NSX 3015UW

Ultra-Wide 15” MFD w/ Discover X Charts

NSX 3015UW + Active Imaging Transducer

Ultra-Wide 15" MFD w/ Discover X Charts & Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX^® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Welcome to the future of marine displays. Why settle for anything less?

Ultra-Wide 15” MFD w/ Discover X Charts

Specifications

Product Series

NSX
MPN

000-16298-001
Physical

Dimensions:
W: 15.55" (390.0 mm)
H: 6.71" (170.4 mm)
D: 3.48" (88.5 mm)
Weight: 4.2 lbs (1.9 kg)
Power

Power Input: 10 - 17 V DC
Power Draw: 25 W (1811 mA at 13.8 V)
Fuse: 3A
Screen

Size: 15"
Resolution: 1920 x 720 px
Sonar

1kW xSonic 9pin
Frequencies: Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Connectivity

1 MicroSD Card (Back Of Unit)
Physical Connections:
- Power
- 5pin Simrad Network (1)
- USB
- xSonic 9pin (1)
- NMEA2000
Wireless: BlueTooth 4.0, WiFi
Other

GPS: Internal (10 Hz)
Built-In Chart

C-MAP Discover X
IP Rating

IPx7
