Trident Marine 6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

SKU: TRI/TRL-690-S/S
Regular price $16089

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

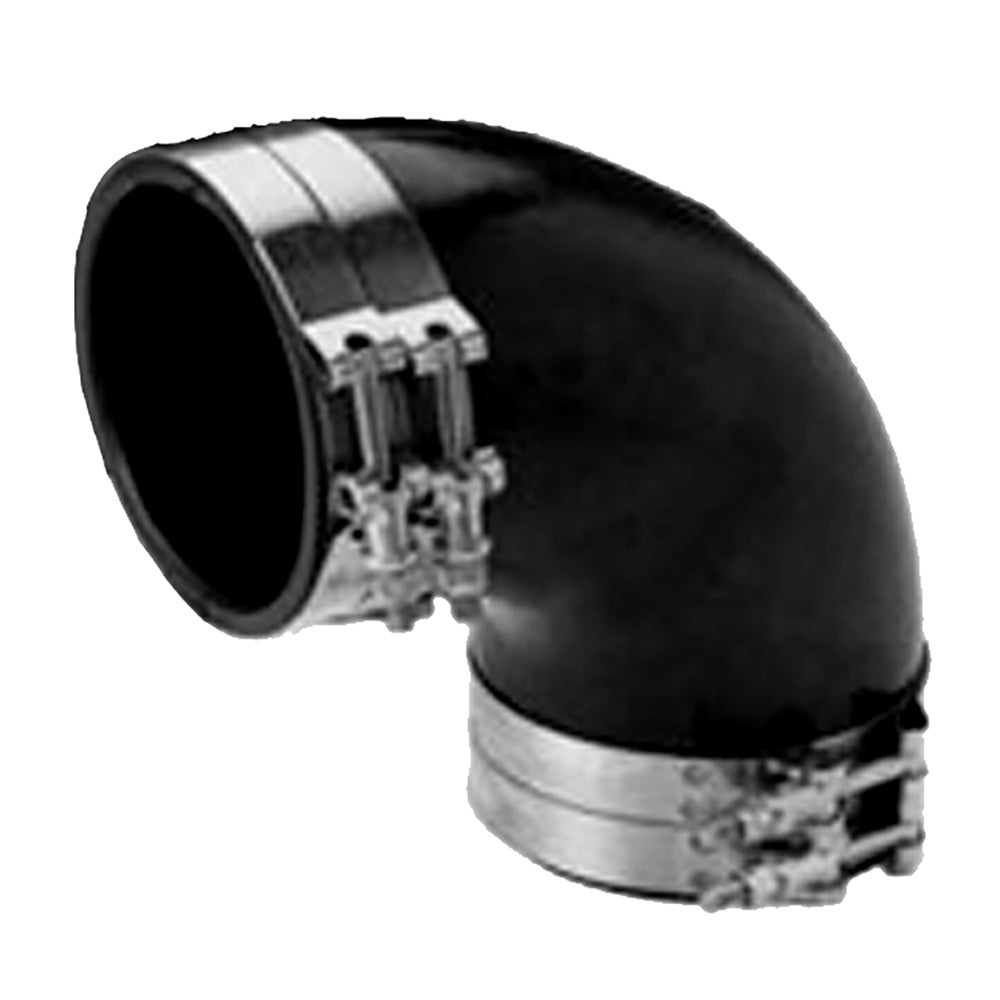

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 250°F (121°C)

Specifications

Identification

MPN TRL-690-S/S
Barcode 704917000435

Physical

Inner Diameter (inch) 6” / (mm) 152.4

General

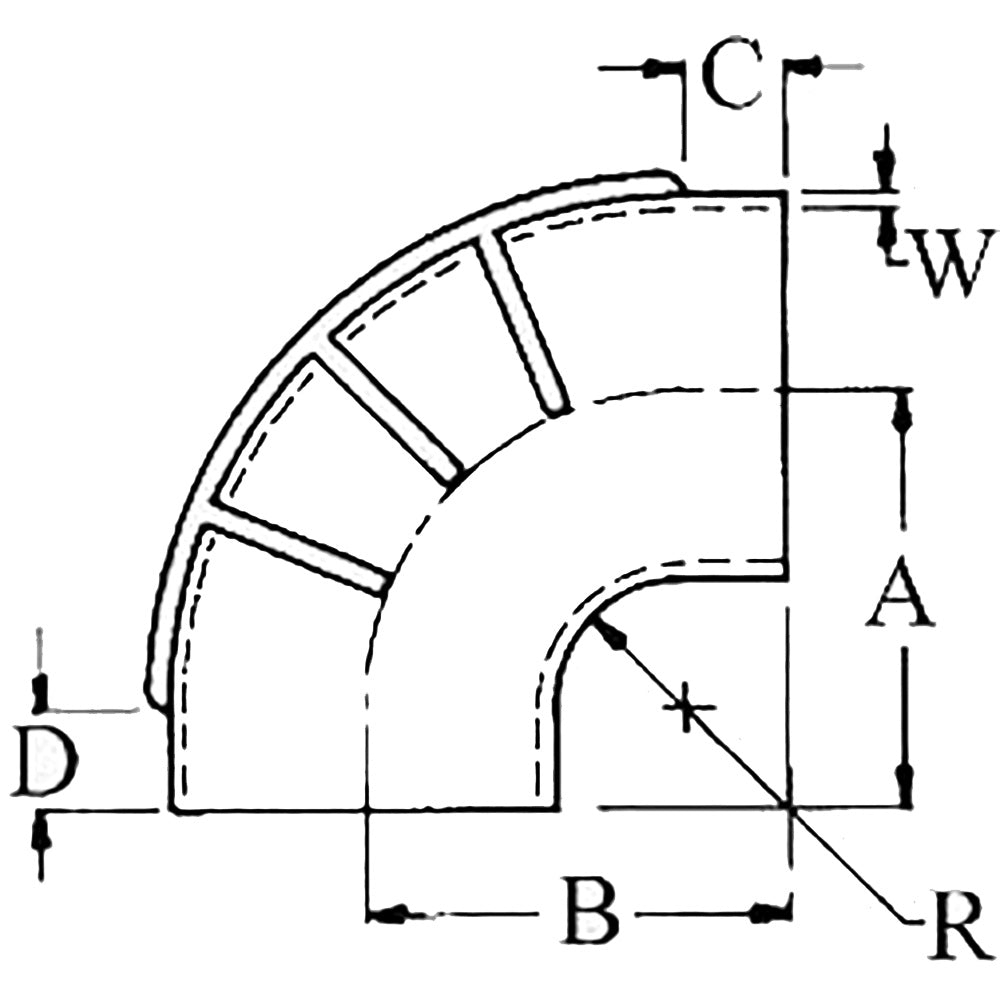

A (inch) 7" / (mm) 178
B (inch) 7” / (mm) 178
C (inch) 2.25” / (mm) 57
D (inch) 2.25” / (mm) 57
R (inch) 1.75” / (mm) 44.4
W (inch) 0.25” / (mm) 6.4
Elbow Degree 90 degrees

Reviews (0)

In The Box

In The Box:

Package Dimensions:

15" x 10" x 8"
