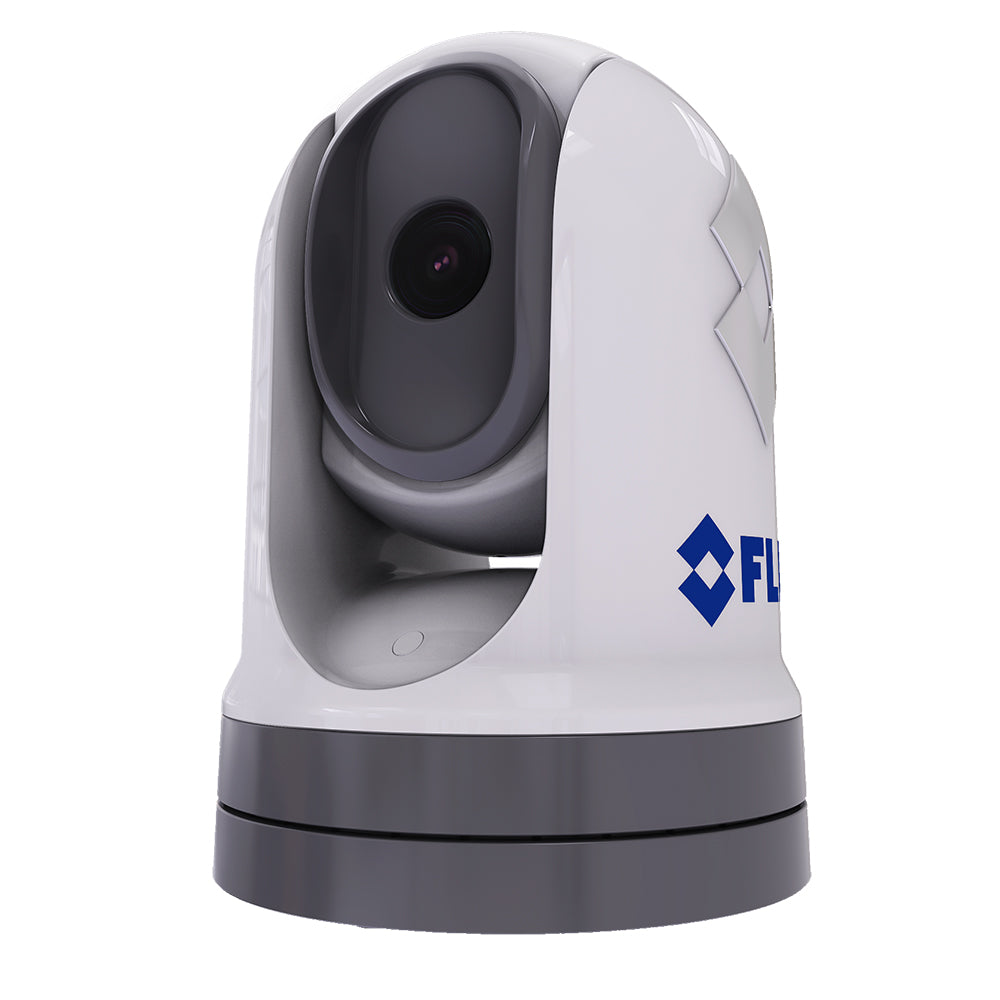

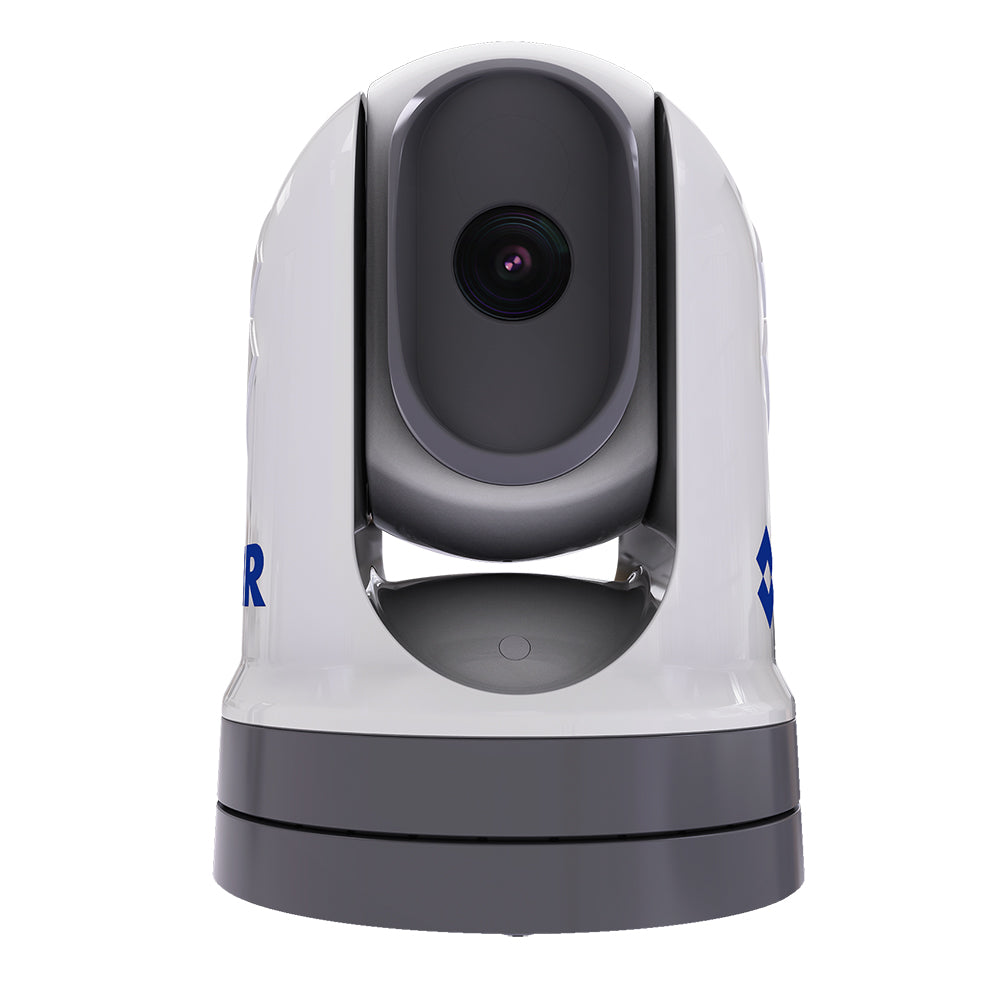

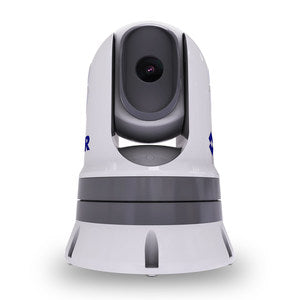

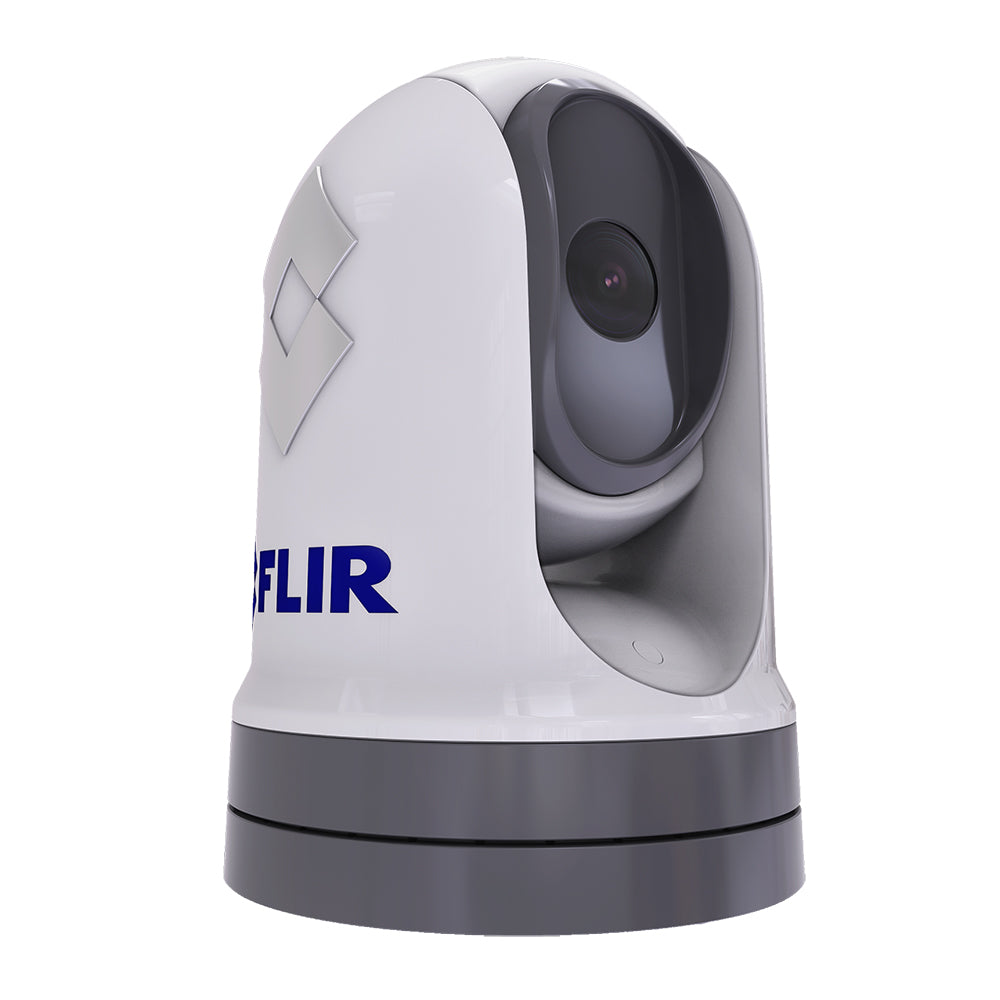

FLIR M332 Stabilized Thermal IP Camera

Name: FLIR M332 Stabilized Thermal IP Camera
Brand: FLIR Systems
SKU: FLI/E70527
Price: 9995.00 USD
Availability: InStock

SKU: FLI/E70527

$9,995⁰⁰

Same-Day Shipping Checking cutoff…

Description

M332 Stabilized Thermal IP Camera

Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.

SAFE NAVIGATION IN LOW VISIBILITY ENVIRONMENTS

Thermal imaging offers vision in complete darkness, glare, and light fog.

Powered by the breakthrough FLIR Boson thermal imaging core
Thermal resolution 320x256 VOx Microbolometer
Smooth image refresh rates up to 30 Hz
Pan/Tilt Adjustment Range360° Continuous Pan, +/- 90° Tilt
Advanced onboard image processing technology
ClearCruise Augmented Reality-enabled when paired with Raymarine Axiom MFDs

A STEADY VIEW IN ROUGH SEAS

Stable viewing in heavy seas keeps eyes on-target.

Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw
Integrated AHRS (Attitude Heading Reference Sensor)
Horizontal stabilization automatically keeps the camera on scene as you maneuver

SEAMLESS INTEGRATION

Exceptional connectivity with navigation and security systems.

Optional joystick control unit and multifunction navigation display integration (JCU2)
ONVIF-compliant for PTZ security camera functionality
H.264 IP video stream, HD-SDI lossless, and analog video output

Included:

M300 Camera
Camera base-seal
Camera gasket
RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)
Right-angled HD-SDI video cable (with BNC connectors) 3 m (9.8 ft.)
Right-angled power/NMEA 0183/video cable 3 m (9.8 ft.)
Mounting riser
2 x self-adhesive decals (for ball-down mounting only)
Documentation pack

Specifications

Identification

MPN	E70527
Barcode	723193826959

Camera

Thermal Sensor	320 x 256 VOx Microbolometer
Field of View	24° x 18°
Zoom	4x Continuous Digital
Focal Length	9.1mm
Focus	Fixed, 12 ft (3.7m) to infinity
Frame Rate	30 Hz or <9 Hz (user selectable)
Video Output	Two independent H.264/MJPEG network streams; NTSC/PAL analog via BNC; HD-SDI

Stabilization

Type	2-axis gyro stabilization (pitch and bearing compensation)

Pan/Tilt

Pan	360° continuous
Tilt	±90°

Physical

Dimensions	8.7" x 12.9" (222 x 328mm); 10.0" x 14.4" (254 x 366mm) with top-down riser
Weight	13.9 lb (6.3 kg); 14.9 lb (6.8 kg) with riser
Housing	IPX6 water ingress rating, automatic window defrost
Operating Temperature	-13°F to +131°F (-25°C to +55°C)
