Sale

Garmin | SKU: GAR/010-02590-35 | Barcode: 753759322700

ECHOmap UHD2 53cv + Ice Fishing Bundle

Name: ECHOmap UHD2 53cv + Ice Fishing Bundle
Brand: Garmin
SKU: GAR/010-02590-35
Price: 549.99 USD
Availability: InStock

5" Chartplotter w/ Ice Fishing Bundle

$549⁹⁹ $599⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

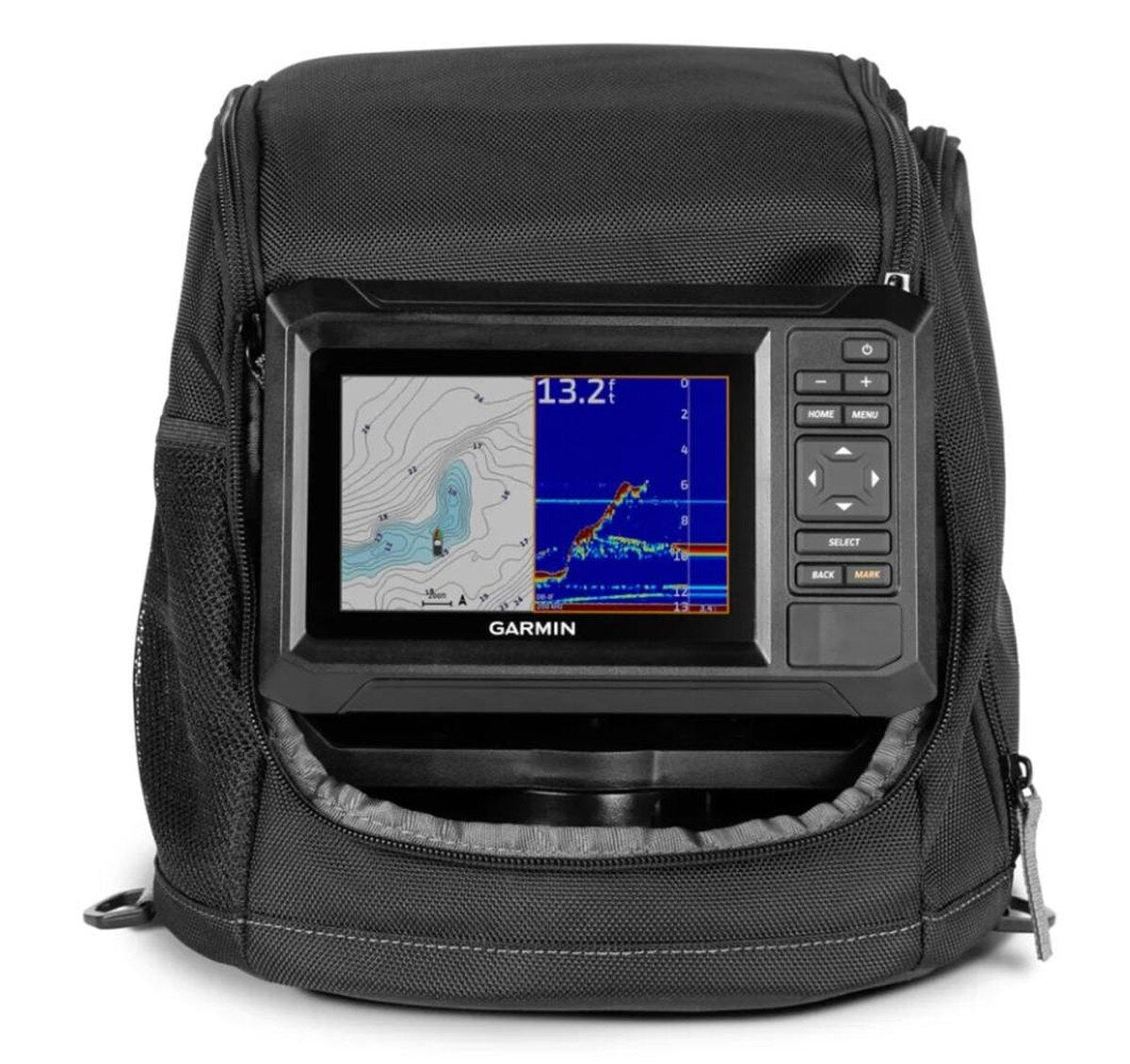

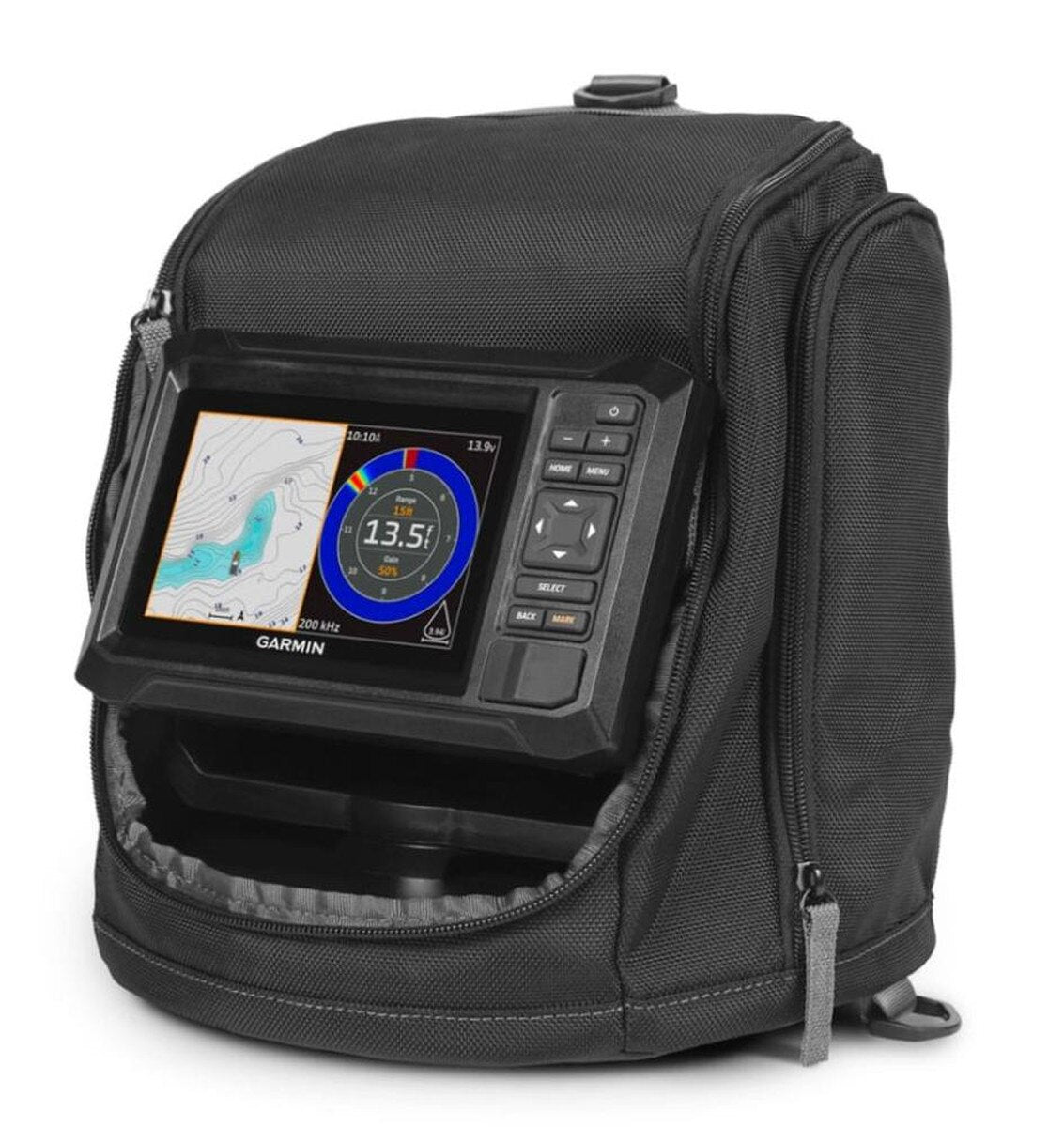

Designed for the passionate angler, the 5" ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience. This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface. You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes. You can create custom pages that combine sonar, flasher and map on your display. The 5-ECHOmap UHD2 also supports ClearVü scanning sonar for open water. Get nearly photographic images of what's below the surface (transducer sold separately).

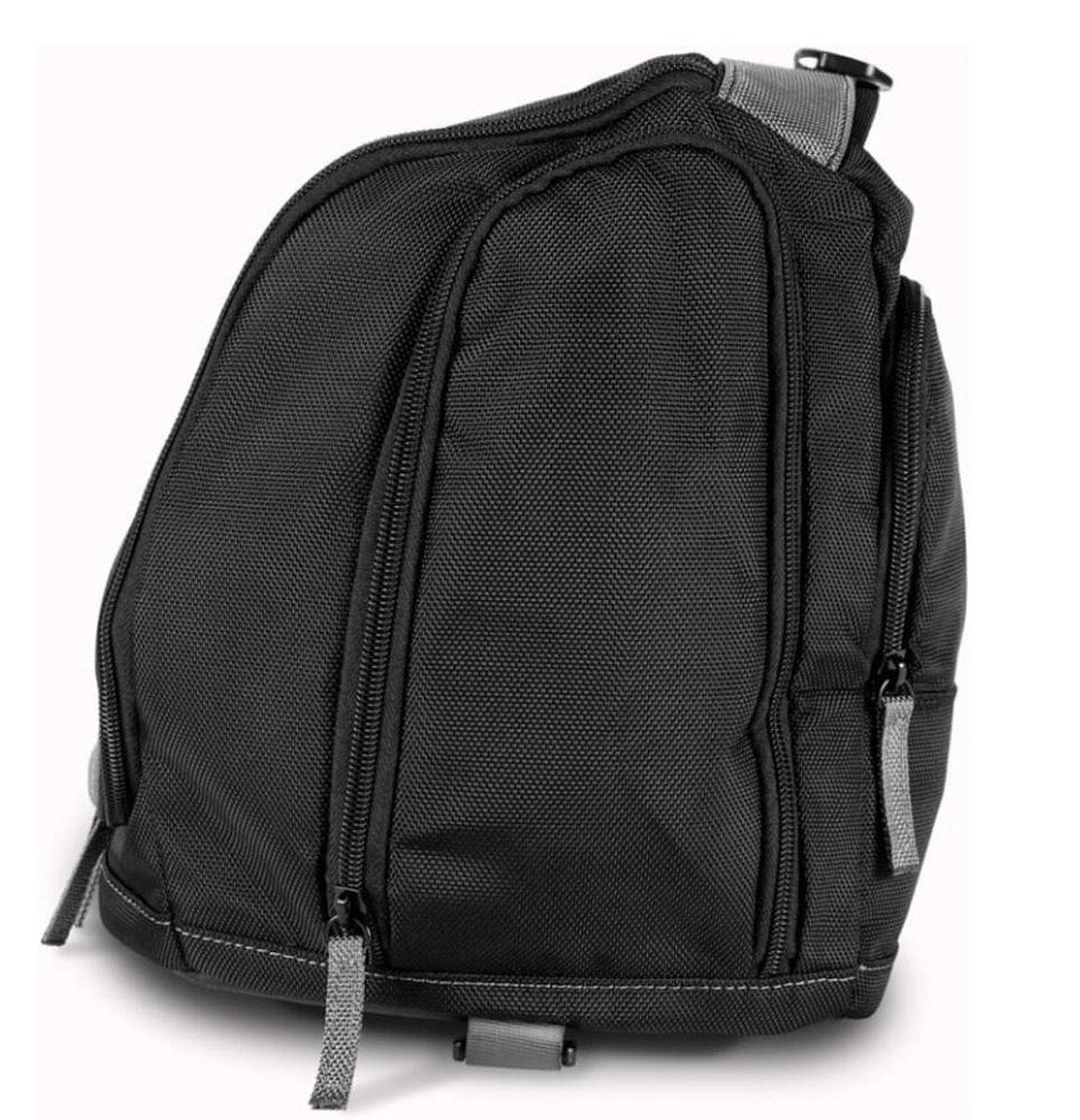

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

BRIGHT 5 in SUNLIGHT-READABLE DISPLAY
INCLUDED DUAL BEAM-IF TRANSDUCER

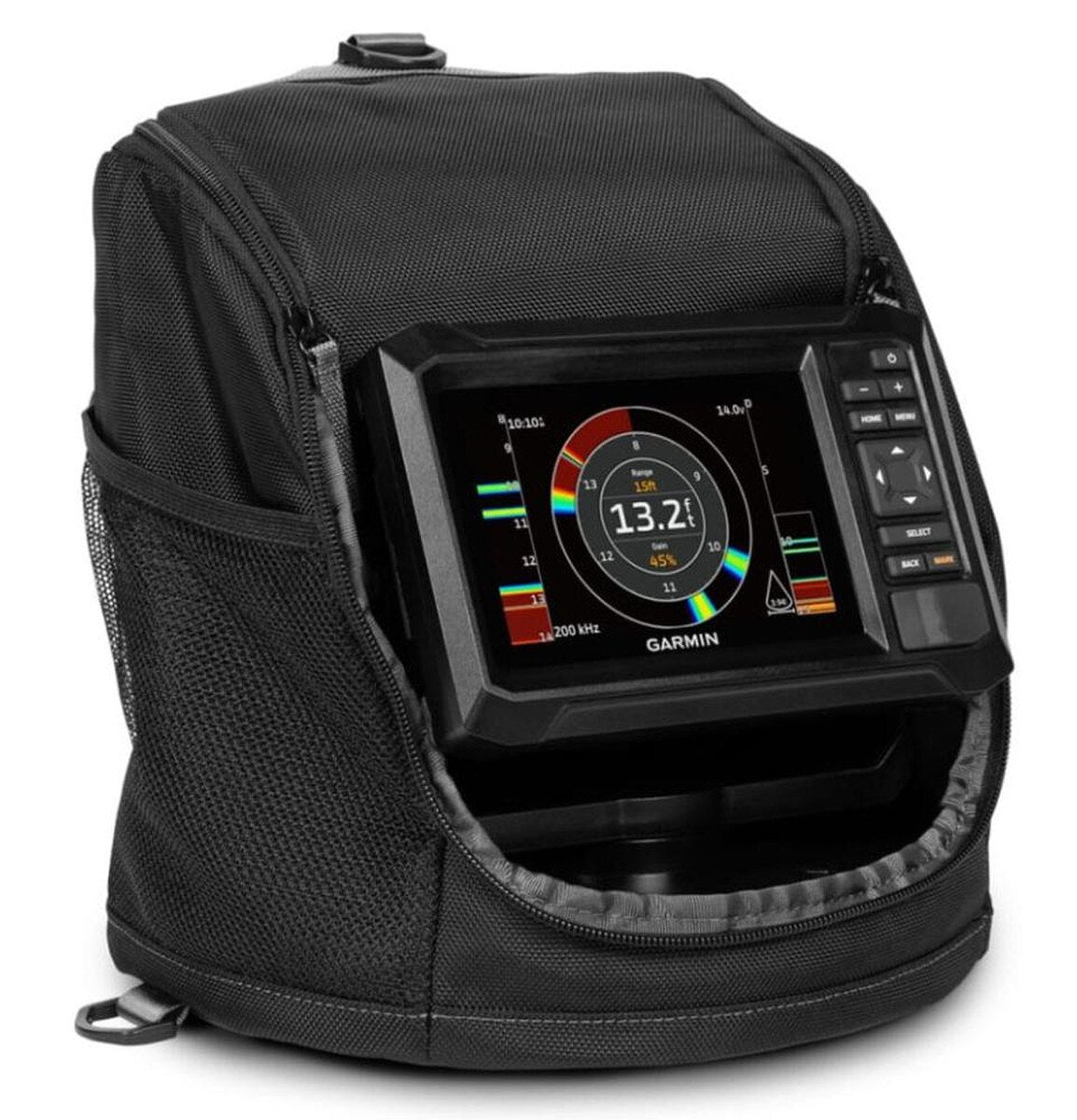

BUILT-IN FLASHER
GARMIN NAVIONICS+ MAPS WITH 23,000+ LAKES
RUGGED, PORTABLE CARRYING CASE

Specifications

Product Series

ECHOmap UHD 2
MPN

010-02590-35
Physical

Dimensions: 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
Weight: 9.5 lbs (4.3 kg)
Power

Input: 9 - 18v DC
Typical Draw: 1.0 A @ 12v
Max Draw: 1.5 A @ 12v
Screen

Touchscreen: No
Type: WVGA, IPS
Size: 5.0"
Resolution: 800 x 480 pixels
Sonar

Built-In Sonar: Yes
Power: 500w
Frequencies:
Traditional: single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP
ClearVü: 260/455/800 kHz
Connectivity

Built-In GPS: Yes - 5 Hz
SD Cards: Yes - microSD (1)
Wireless: WiFi
Network: None
NMEA 0183: Yes
NMEA 2000: No
J1939: No
Analog Video In: No
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 4pin
IP Rating

IPx7

Reviews (0)

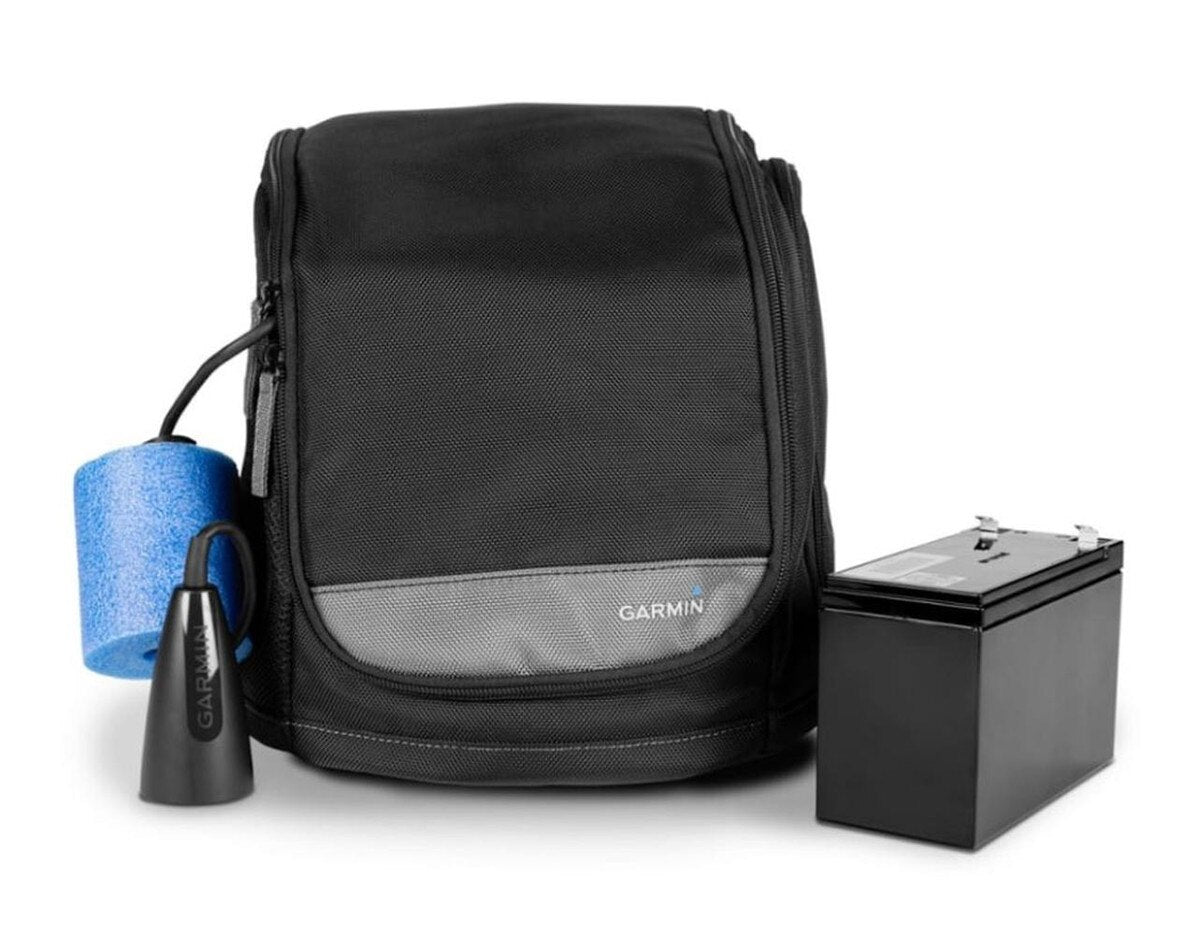

In The Box

In The Box:

ECHOMAP UHD2 53cv chartplotter
Dual Beam-IF transducer
Tilt/swivel mount
Portable bag
Base/handle
Foam float
Power cable
Rechargeable battery
Battery charger
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Garmin

4pin Extention Cable (10')

4pin Transducer Extention Cable

010-11617-10

In stock (15)

$44⁹⁹

Garmin

4pin to 6pin Adaptor Cable

6pin Transducer to 4pin Sounder Adaptor Cable

010-11615-00

In stock (6)

$24⁹⁹

Garmin

4pin to 8pin Adaptor Cable

8pin Transducer to 4pin Sounder Adaptor Cable

010-12719-00

In stock (12)

$29⁹⁹

Garmin

Transducer Adaptor Cable - 4pin to 12pin

4pin Transducer to 12pin Sounder Adaptor Cable

010-12718-00

In stock (17)

$29⁹⁹

Garmin

Dual Beam (4pin)

500w 77/200kHz Transom Mount Transducer

010-10249-20

In stock (18)

$99⁹⁹

Garmin

Dual Beam (8pin)

500w 77/200kHz Transom Mount Transducer

010-10249-40

In stock (4)

$99⁹⁹

Garmin

Dual Frequency (8pin)

500w 50/200kHz Transom Mount Transducer

010-10272-10

In stock (3)

$99⁹⁹

Garmin

GT12M-THF (0°)

Bronze 600w Medium CHIRP Tilted Element Thru-Hull Transducer

010-02867-00

In stock (3)

$399⁹⁹

View details

Garmin

GT12M-THF (12°)

Bronze 600w Medium CHIRP Tilted Element Thru-Hull Transducer

010-02867-01

In stock (3)

$399⁹⁹

Garmin

GT12M-THF (20°)

Bronze 600w Medium CHIRP Tilted Element Thru-Hull Transducer

010-02867-02

In stock (3)

$399⁹⁹

Garmin

GT15M-IH

600w Medium CHIRP In-Hull Transducer

010-12402-00

In stock (21)

$249⁹⁹

Garmin

GT15M-THF (0°)

Stainless 600w Mediium CHIRP Tilted Element Thru-Hull Transducer

010-02868-00

Low stock (2)

$799⁹⁹

Garmin

GT15M-THF (12°)

Stainless 600w Mediium CHIRP Tilted Element Thru-Hull Transducer

010-02868-01

In stock (3)

$799⁹⁹

Garmin

GT15M-THF (20°)

Stainless 600w Mediium CHIRP Tilted Element Thru-Hull Transducer

010-02868-02

Out of stock

$799⁹⁹

Garmin

GT15M-TM

600w Medium CHIRP Transom Mount Transducer

010-12402-10

In stock (4)

$229⁹⁹

Garmin

GT20-TM (4pin)

500w 77/20kHz/ClearVu Transom Mount Transducer

010-01960-00

Low stock (2)

$99⁹⁹

Garmin

GT20-TM (8pin)

500w 77/20kHz/ClearVu Transom Mount Transducer

010-01960-01

In stock (4)

$99⁹⁹

Garmin

GT21-TH

500w 50/200kHz/ClearVu Transom Mount Transducer

010-01962-10

Low stock (2)

$474⁹⁹

Garmin

GT21-TM

500w 50/200kHz/ClearVu Transom Mount Transducer

010-01962-00

In stock (5)

$159⁹⁹

Garmin

GT24UHD-TM

350w High-Wide CHIRP/ClearVu Tronsom Mount Transducer

010-12908-00

In stock (13)

$249⁹⁹

Garmin

GT8HW-IH

250w High-Wide CHIRP In-Hull Transducer

010-12401-10

In stock (6)

$149⁹⁹

Garmin

GT8HW-TM

250w High-Wide CHIRP Transom Mount Transducer

010-12401-00

In stock (4)

$179⁹⁹

Garmin

Cover - ECHOmap UHD2 52/53/54/55

Protective Cover For ECHOmap UHD2 5x

010-13116-00

In stock (40)

$24⁹⁹

Garmin

GT20-TM (4pin)

500w 77/20kHz/ClearVu Transom Mount Transducer

010-01960-00

Low stock (2)

$99⁹⁹

Garmin

Power Cable (4pin) - Striker/ECHOmap

010-12199-04

In stock (79)

$29⁹⁹

Garmin

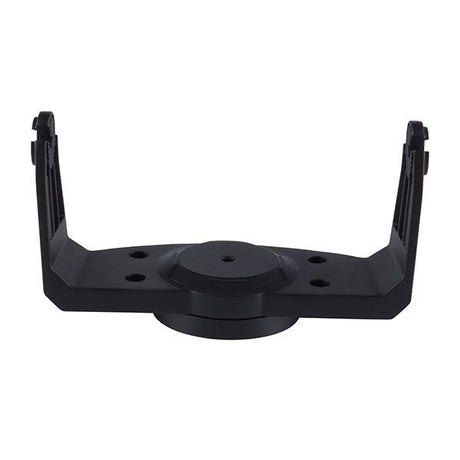

Tilt/Swivel Mount - Striker 5/7 & UHD2 5x/7x
