Sale

Garmin | SKU: GAR/010-02688-00 | Barcode: 753759307974

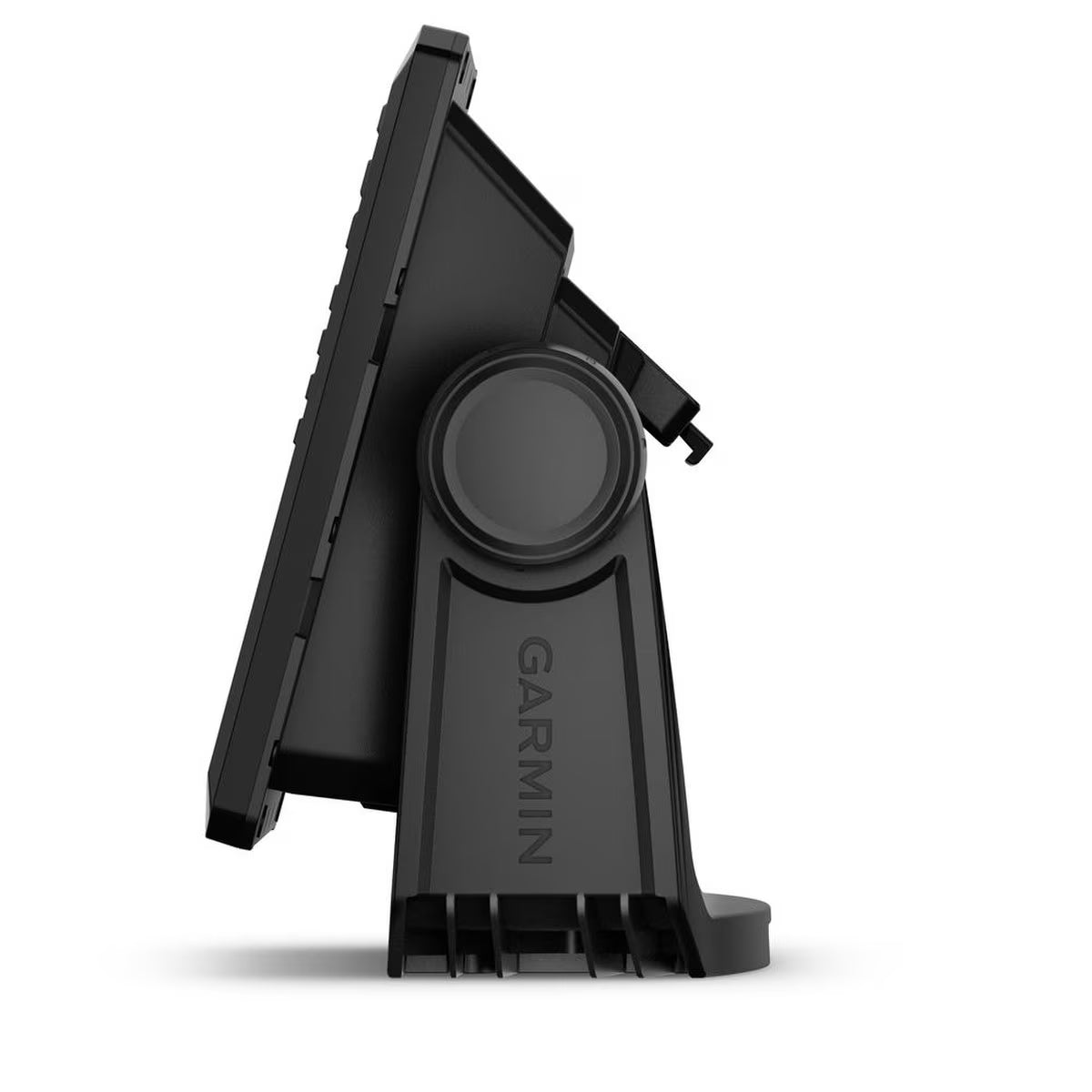

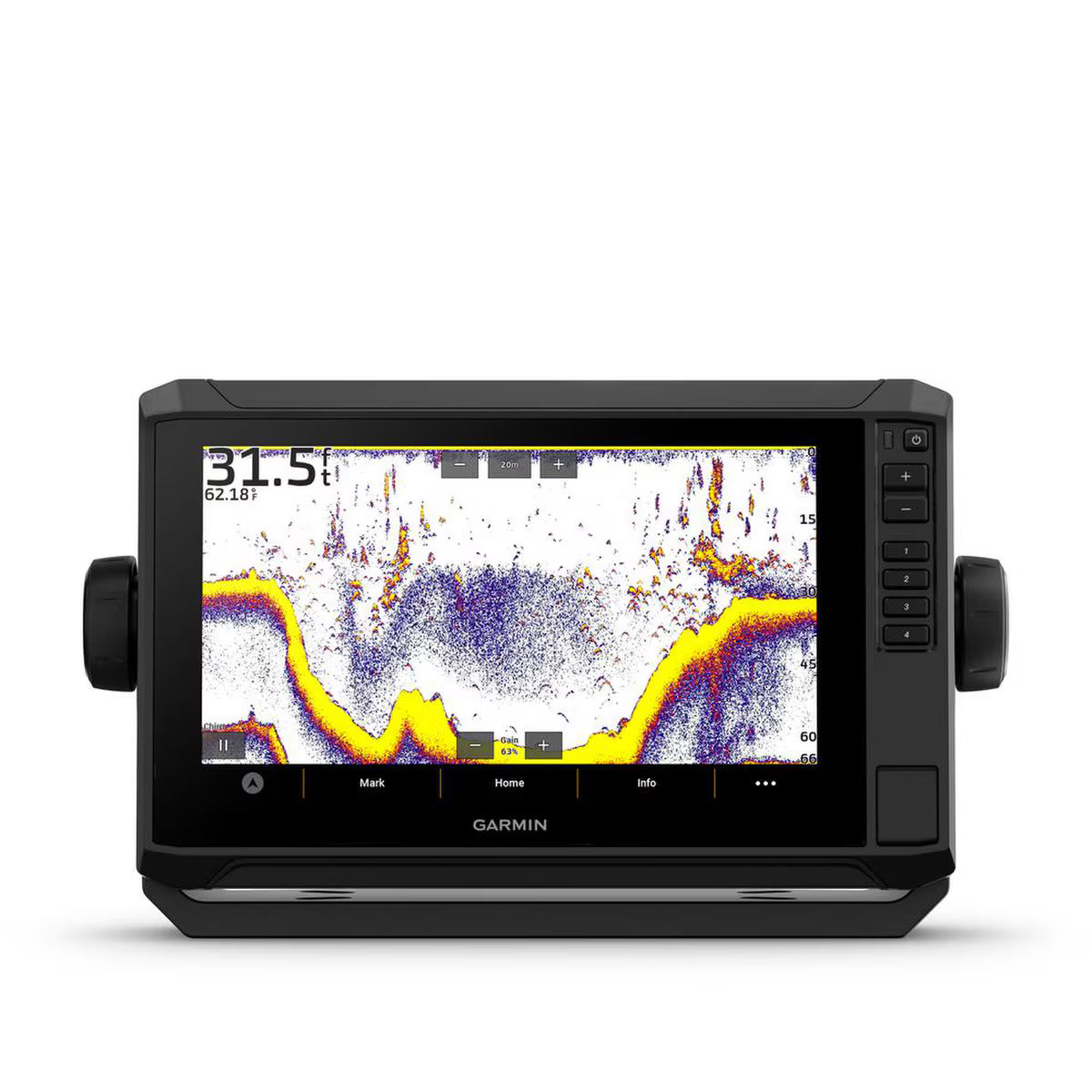

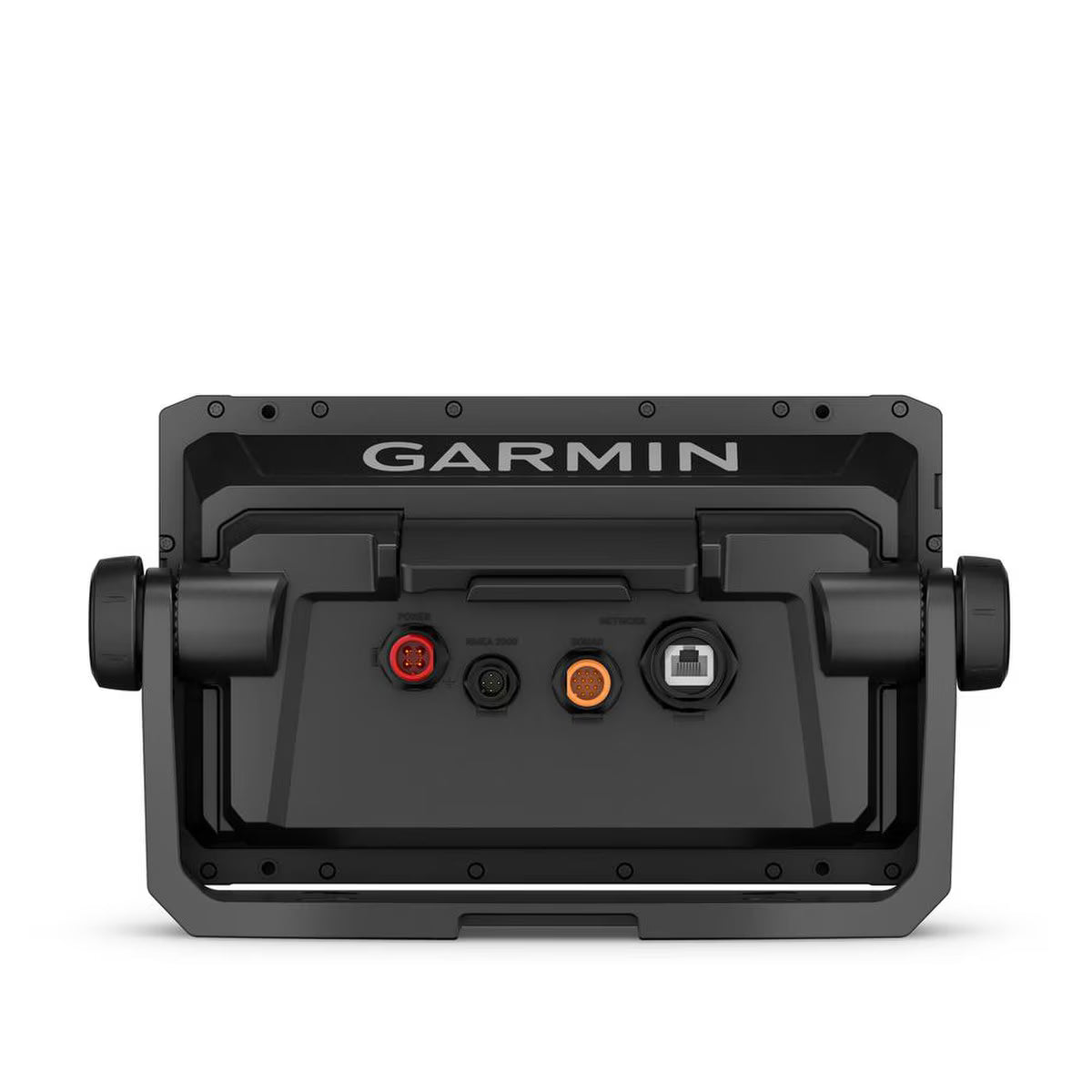

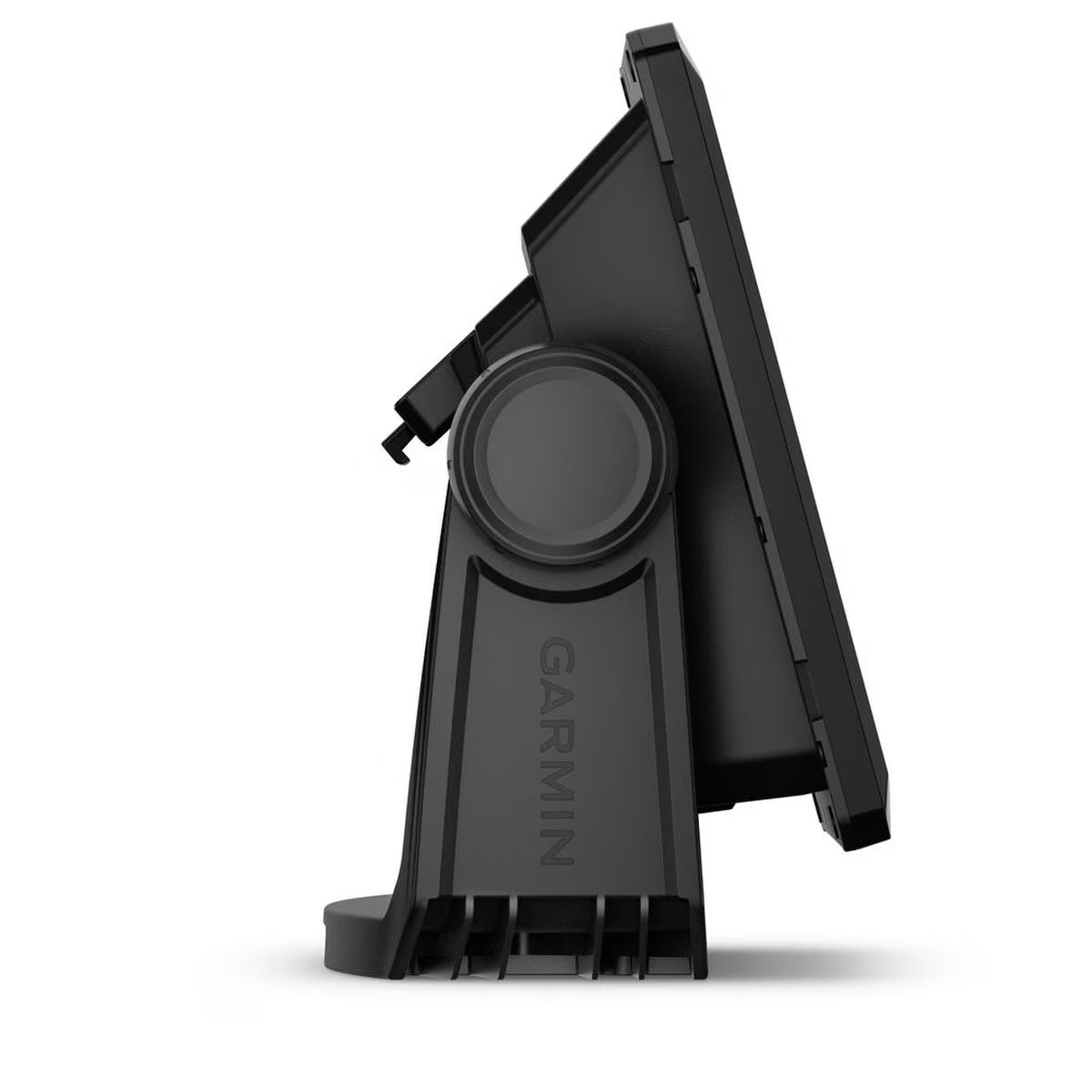

ECHOmap UHD2 93sv

Name: ECHOmap UHD2 93sv
Brand: Garmin
SKU: GAR/010-02688-00
Price: 1099.99 USD
Availability: InStock

9" Chartplotter w/ US Inland Charting

$1,099⁹⁹ $1,199⁹⁹

Options

ECHOmap UHD2 92sv

9" Chartplotter

ECHOmap UHD2 92sv + GT56UHD Transducer

9" Chartplotter w/ Transducer

ECHOmap UHD2 93sv

9" Chartplotter w/ US Inland Charting

ECHOmap UHD2 93sv + GT56UHD Transducer

9" Chartplotter w/ US Inland Charting & Transducer

ECHOmap UHD2 94sv

9" Chartplotter w/ Navionics+ Charting

ECHOmap UHD2 94sv + GT56UHD Transducer

9" Chartplotter w/ Navionics+ Charting & Transducer

ECHOmap UHD2 95

9" Chartplotter w/ Canada Charting

ECHOmap UHD2 95sv + GT56UHD Transducer

9" Chartplotter w/ Canada Charting & Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü^™ and SideVü^™ sonars.

Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.

If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.

Specifications

Product Series

ECHOmap UHD 2
MPN

010-02688-00
Physical

Dimensions: 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)
Weight: 2.9 lbs (1.3 kg)
Mounting

Type: Bracket or Flush
Cutout: 9 7/8" x 5 11/16" (251.4 mm x 143.8 mm)
Power

Input: 9-18v DC
Typical Draw: 1.72 A @ 12v
Max Draw: 3.5 A @ 12v
Screen

Touchscreen: Yes (Key Assist)
Type: WSVGA, TN
Size: 9.0"
Resolution: 1024 x 600
Sonar

Built-In Sonar: Yes
Port: 12pin
Power: 500 W
Frequencies Supported:
Traditional: CHIRP L, M, H, 50, 77, 83, 200 kHz
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz
Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (1)
Wireless: WiFi
Network: Marine Network
NMEA 0183: No
NMEA 2000: Yes
J1939: No
Analog Video In: No
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 12pin
Built-In Chart

Garmin Navionics+ U.S. Inland Mapping
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

ECHOMAP UHD2 93sv
12-pin sounder to 8-pin transducer cable
Power/data cable
tilt mount
flush mount
hardware
documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Garmin

Barewire to 12pin Sonar Adaptor

Barewire Transducer to 12pin Sounder Adaptor Block

010-11613-10

In stock (31)

$84⁹⁹

Garmin

GPS 24xd GPS/Heading Sensor - NMEA 2000

White High Accuracy GPS Antenna w/ Heading - NMEA 2000 Connection

010-02316-10

In stock (31)

$314⁹⁹

Garmin

GPS 24xd GPS/Heading Sensor - NMEA 2000

Black High Accuracy GPS Antenna w/ Heading - NMEA 2000 Connection

010-02316-20

In stock (10)

$364⁹⁹

Garmin

SteadyCast

Compact Heading Sensor

010-11417-10

In stock (44)

$199⁹⁹

Garmin

Transducer Adaptor Cable - 8pin to 12pin

8pin Transducer to 12pin Sounder Adaptor Cable

010-12122-10

In stock (85)

$29⁹⁹

Garmin

Transducer Extension Cable - 12pin (10')

10' 12pin Transducer Extention Cable

010-11617-32

In stock (52)

$54⁹⁹

Garmin

Transducer Extension Cable - 12pin (30')

30' 12pin Transducer Extention Cable

010-11617-42

In stock (12)

$64⁹⁹

Garmin

Transducer Extension Cable - 12pin (4')

4' 12pin Transducer Extention Cable

010-11617-44

Out of stock

$39⁹⁹

Discontinued

Garmin

Transducer Right Angle Adaptor - 12pin

12pin Right Angle Transducer Adaptor

010-12262-10

Out of stock

$19⁹⁸

Garmin

Transducer Right Angle Cable - 12pin

12pin Right Angle Transducer Extension Cable

010-12098-00

Out of stock

$29⁹⁹

Garmin

Transducer Y-Cable - 12pin (32')

12pin Transducer Y-Cable

010-12225-00

In stock (4)

$59⁹⁹

Garmin

Transducer Y-Cable - 12pin (6')

12pin Transducer Y-Cable

010-12225-10

Low stock (2)

$44⁹⁹

A black Y-cable with one end featuring an 8-pin connector and the other end a 12-pin connector, commonly used for connecting marine transducers.

Garmin

Transducer Y-Cable - 12pin/8pin

8pin/12pin Transducer To 12pin Sounder Adaptor Cable

010-12445-33

In stock (7)

$34⁹⁹

Garmin

GT51M-TH

500w Medium CHIRP/ClearVu/SideVu Thru-Hull Transducer

010-01966-10

Very low stock (1)

$949⁹⁹

Garmin

GT51M-THP

500w Medium CHIRP/ClearVu/SideVu Thru-Hull Pair Transducer

010-01966-11

In stock (3)

$1,699⁹⁹

Garmin

GT51M-TM

500w Medium CHIRP/ClearVu/SideVu Transom Transducer

010-01966-00

In stock (17)

$629⁹⁹

Garmin

GT52HW-TM

250w High-Wide CHIRP/ClearVu/SideVu Transom Mount Transducer

010-12405-00

Out of stock

$349⁹⁹

Garmin

GT54UHD-TM

350 W Ultra High Definition Traditional/ClearVu/SideVu Transducer

010-12909-00

In stock (25)

$499⁹⁹

Garmin

GT56UHD-TH

Thru-Hull Traditional/ClearVu/SideVu Transducer

010-02732-10

In stock (3)

$899⁹⁹

Garmin

GT56UHD-THP

Thru-Hull Pair Traditional/ClearVu/SideVu Transducer

010-02732-11

In stock (3)

$1,649⁹⁹

Garmin

GT56UHD-TM

500w Ultra High Definition High CHIRP/ClearVu/SideVu Transducer

010-13073-00

In stock (118)

$599⁹⁹

Garmin

Cover - ECHOmap UHD2 92/93/94/95

Protective Cover For ECHOmap UHD2 9x

010-13116-04

Out of stock

$24⁹⁹

Garmin

Power Cable (2pin) - ECHOmap UHD2

Power Cable For ECHOmap UHD2 Units

010-13115-02

In stock (12)

$29⁹⁹

Garmin

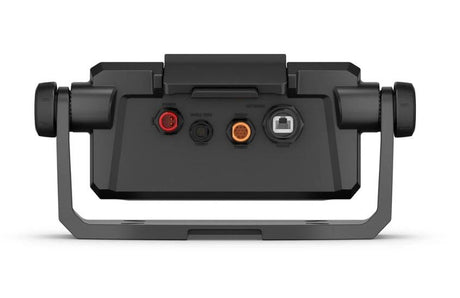

Quick Release Mount - ECHOmap UHD2 9x
