Garmin | SKU: GAR/010-01741-50 | Barcode: 753759285227

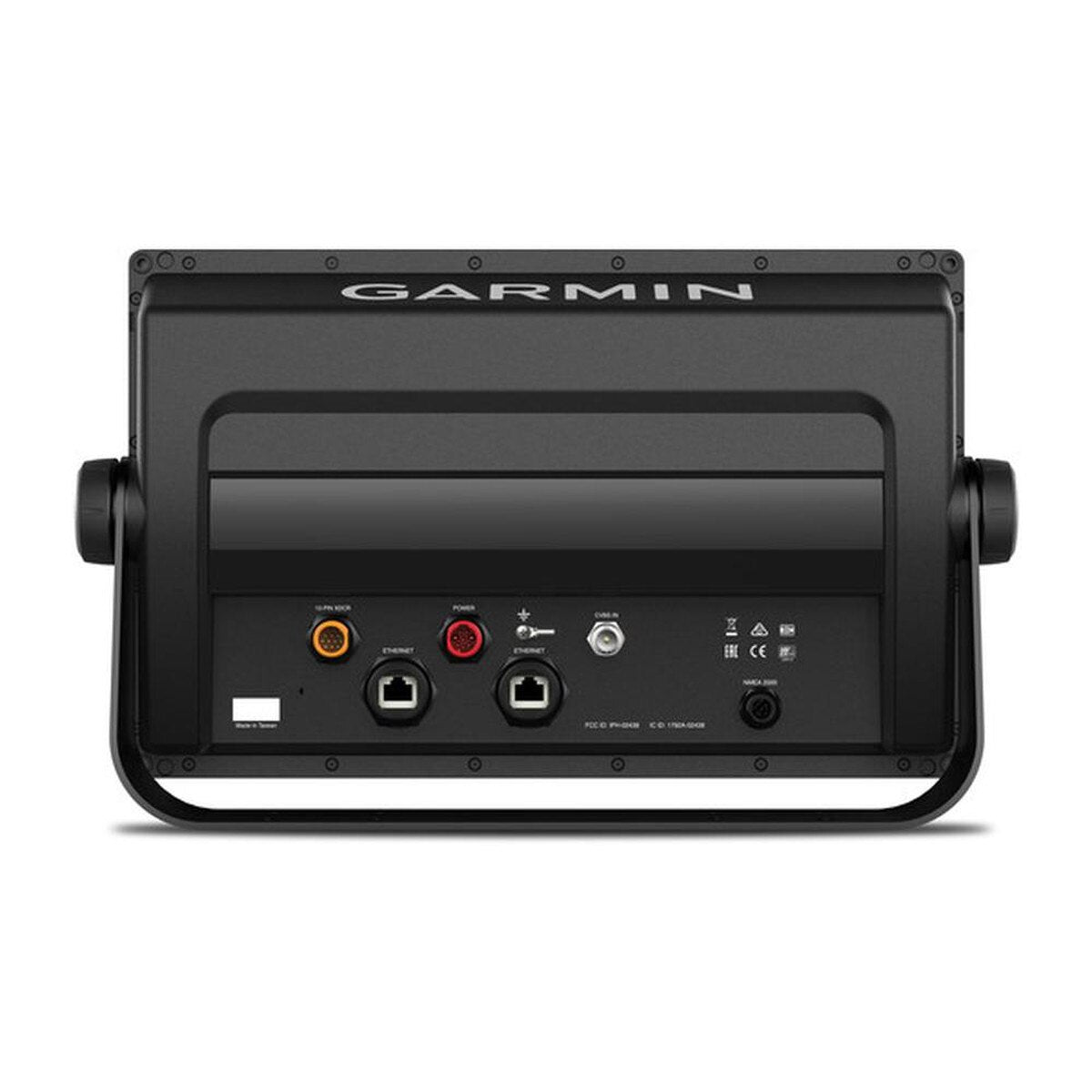

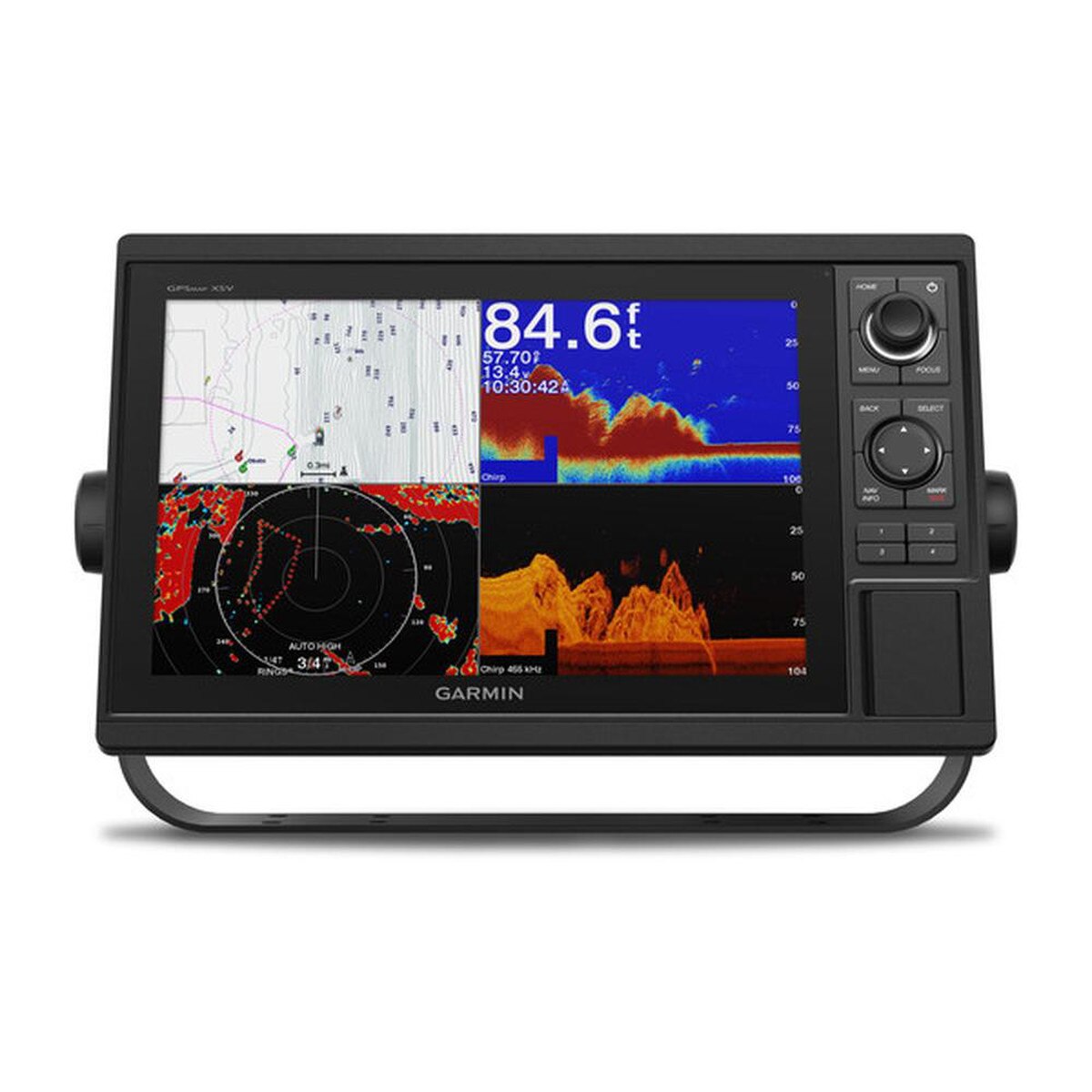

GPSmap 1242xsv Multi-Function Display

Name: GPSmap 1242xsv Multi-Function Display
Brand: Garmin
SKU: GAR/010-01741-50
Price: 2399.99 USD
Availability: InStock

12" MFD w/ Built-In Sonar & Navionics+ Charting

$2,399⁹⁹

Options

GPSmap 1222 Multi-Function Display

12" MFD

GPSmap 1222xsv Multi-Function Display

12" MFD w/ Built-In Sonar

GPSmap 1242xsv Multi-Function Display

12" MFD w/ Built-In Sonar & Navionics+ Charting

GPSmap 1242xsv Multi-Function Display + GT52HW-TM Transducer

12" MFD w/ Included GT52-TM Transducer & Navionics+ Charting

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Experience an advanced all-in-one solution with our 12 in GPSMAP(R) 1242xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars. The combo also supports PanoptixTM and LiveScopeTM sonar products, including the LiveScopeTM Plus System and a wide range of other transducers (sold separately). Use built-in Wi-Fi(R) technology to pair with the free ActiveCaptain(R) smatrphone app for access to the OneChartTM feature, smart notifications, Garmin QuickdrawTM Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there's NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls (sold separately). Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there's support for optional Garmin Navionics Vision+TM premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin ConnectTM online network. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway.

Large, bright 12 in screen with keypad interface and multifunction control knob
Supports all-seeing live sonar, which includes LiveScopeTM sonar (transducers sold separately)
Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there's support for optional Garmin Navionics Vision+TM premium map content.
Built-in wireless capabilities for Garmin mobile apps
See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway
Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors
Includes Quickdraw Contours map drawing software
Built-in Garmin SailAssistTM features include laylines, race features, set and drift, wind data and more
Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and remote controls (sold separately)

Specifications

Product Series

GPSmap x2
MPN

010-01741-50
Physical

Dimensions: 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
Weight: 5.2 lbs (2.34 kg)
Mounting

Type: Bracket, Flush
Cutout: 13 11/16" x 8 3/16" (347.5 mm x 208.1 mm)
Power

Input: 10-32v DC
Typical Draw: 2.2 A @ 12v
Max Draw: 2.9 A @ 12v
Screen

Touchscreen: No
Type: WSVGA, TN
Size: 12.1"
Resolution: 1280 x 800
Sonar

Built-In Sonar: Yes
Port: 12pin
Power: 1kW
Frequencies:
Traditional: Single Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800 kHz
SideVu: 260/455/800 kHz
Connectivity

Built-In GPS: Yes - 10Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT
Network: Marine Network (2)
NMEA 0183: Yes
NMEA 2000: Yes
J1939: No
Analog Video In: Yes
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 12pin
Built-In Chart

Garmin Navionics+
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
