Garmin  |  SKU: GAR/010-11927-20

B150M

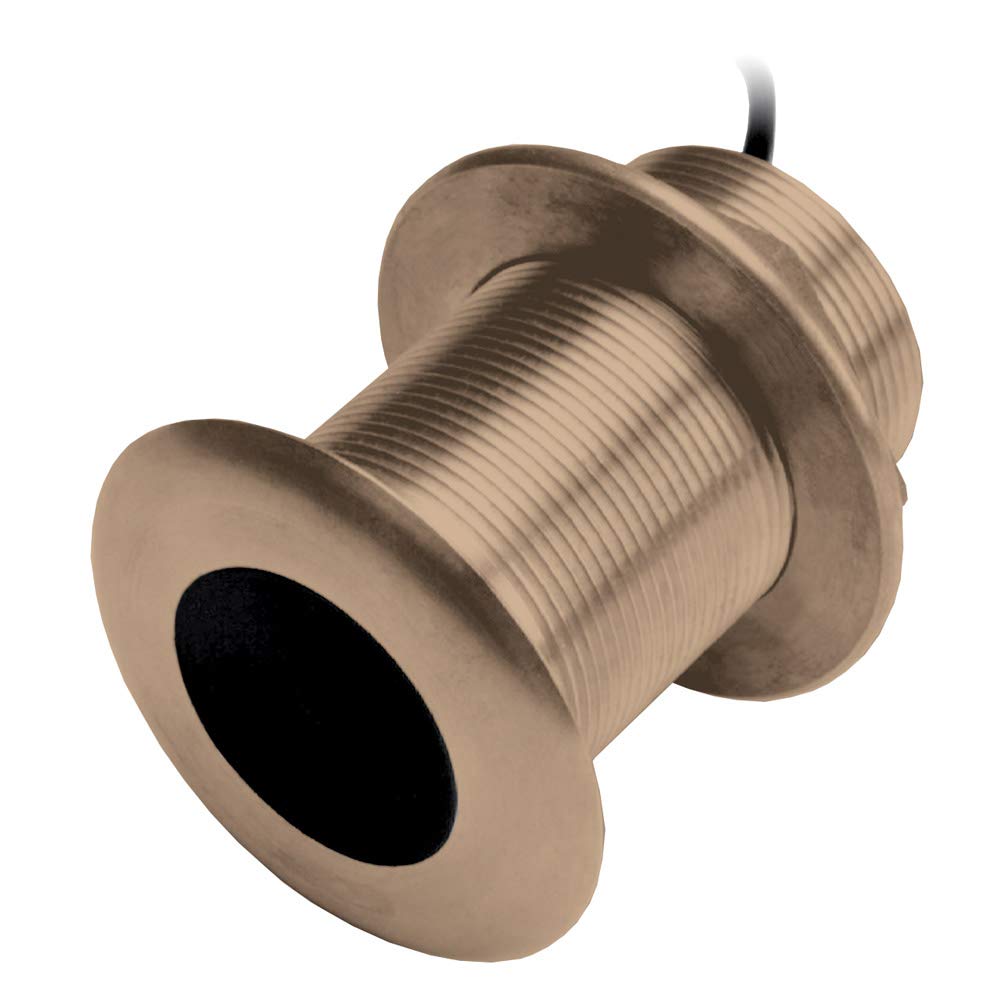

300w Medium CHIRP Bronze Tilted Element Thru-Hull (Garmin 8pin)

$54999
Tilt
Selecting Transducer Tilt

This entry level CHIRP solution provides good depth capability and target separation.

This 8-pin 300 W bronze thru-hull mount transducer has a depth of 600 ft; an operating frequency of 95-155 kHz; a beamwidth of 26/17 degrees.

Transducer (Tilted Element Thru-Hull)
Barcode: 753759997687
7.0 lb
  • Product Series
    150
  • Transducer Tilt
    -
  • Sonar
    Power: 300W
    Frequency: Medium CHIRP (95 - 155 kHz)
    Beamwidth: 26°-17°
    Max Depth (Fresh Water): 600'
    Temperature: Yes
  • Connections
    Garmin 8pin (Blue)
  • Mounting
    Type: Tilted Element Thru-Hull
    Hole Size: 2" (51 mm)
  • Physical
    Usable Shaft Length: 2.62" (66.5 mm)
    Weight: 3 lbs (1.4 kg)
  • Material
    Bronze
