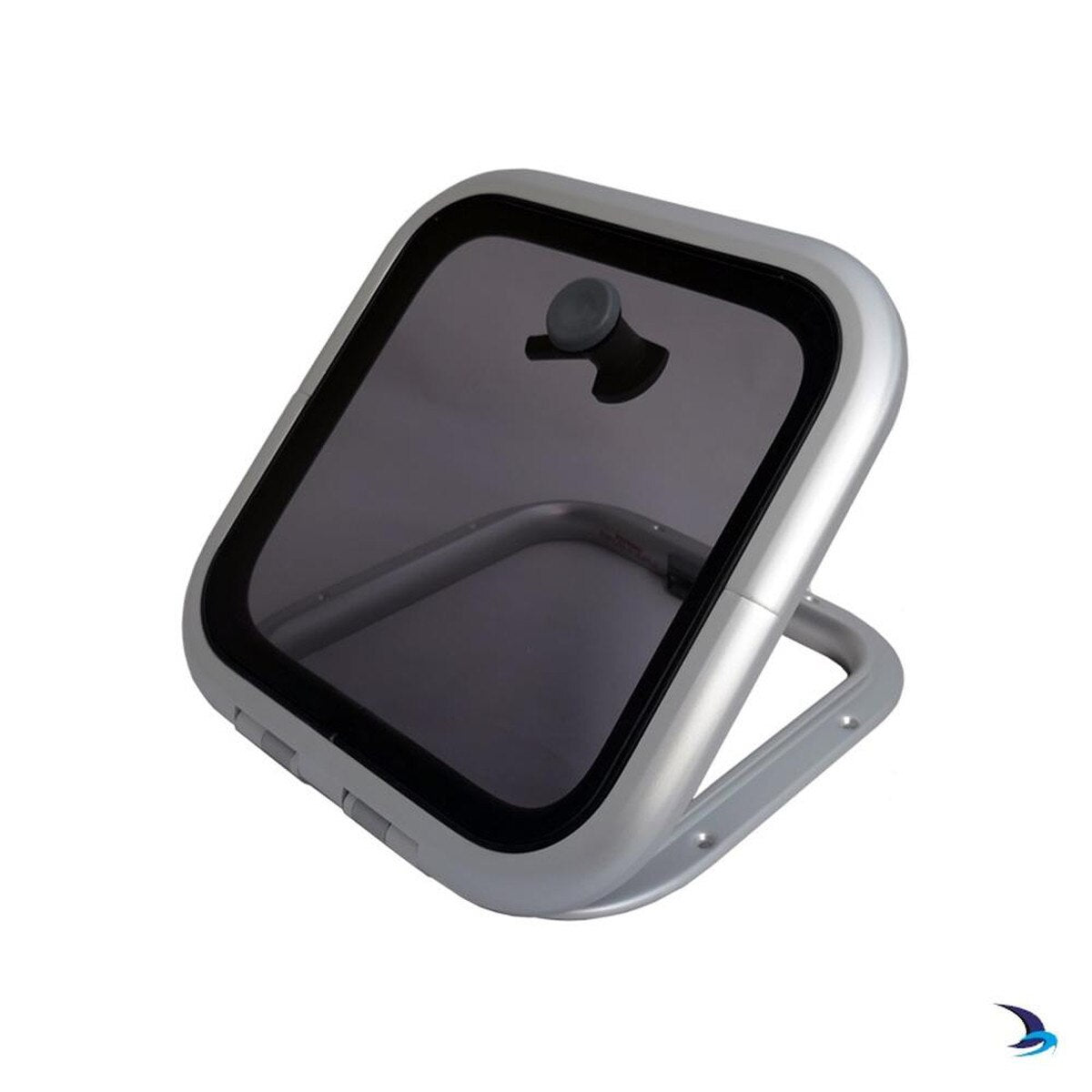

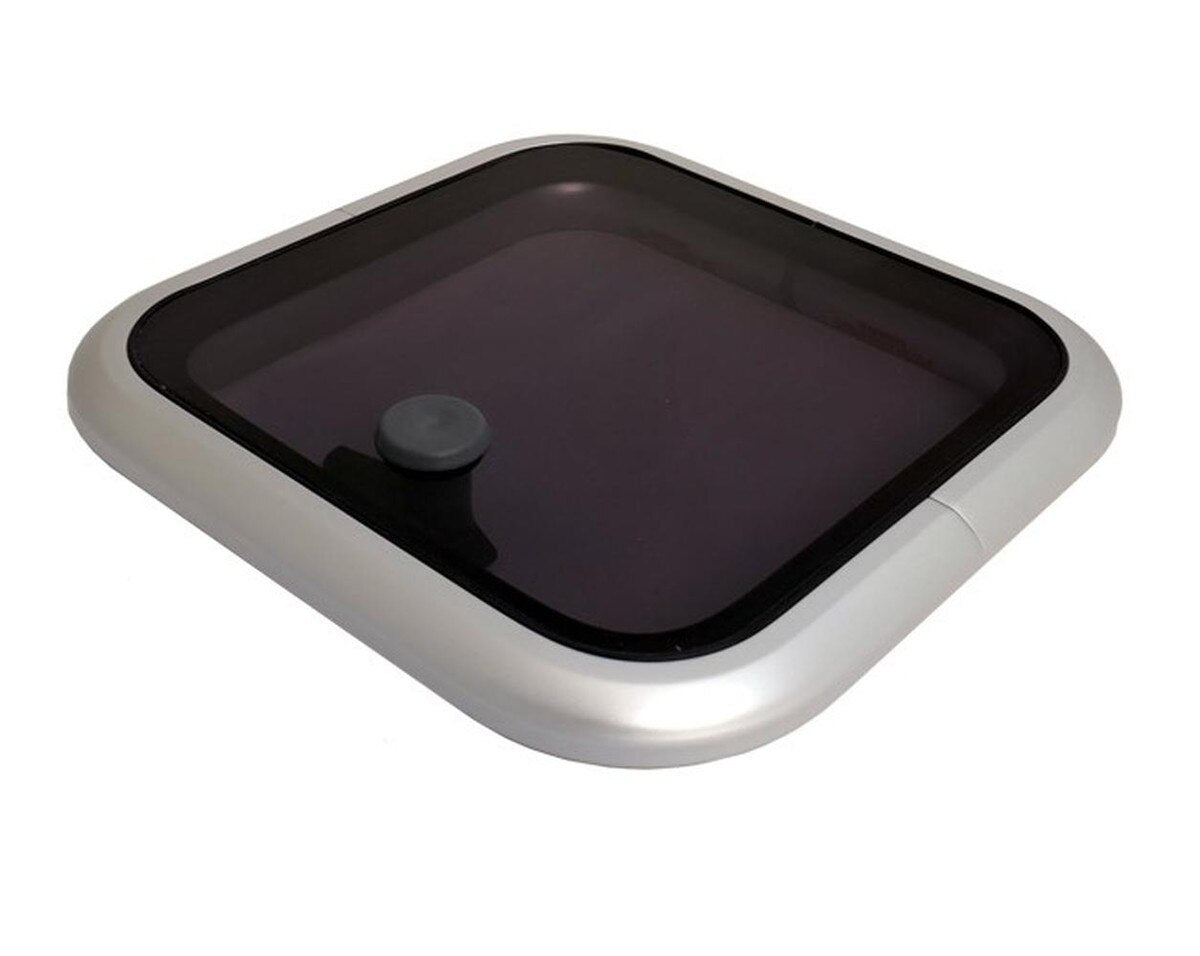

Ocean Series Hatch - Size 10 (Flat Base)

Lewmar Ocean Series Hatch — Size 10, Flat Base (39610050)

A classic, rugged deck hatch fitted to thousands of boats worldwide — built tough enough for deck, coach roof, cockpit, and transom installations.

Why It's Worth It
The Ocean Series has earned its reputation through decades on the water: an anodized aluminum frame and acrylic-bonded lens reduce water infiltration even with the hatch open, and friction levers hold the lid steady at any position up to 95° without needing a separate support arm. CE certification for deck, coach roof, cockpit, and transom use means it's rated for installation virtually anywhere on the boat that calls for a hatch this size.

Use

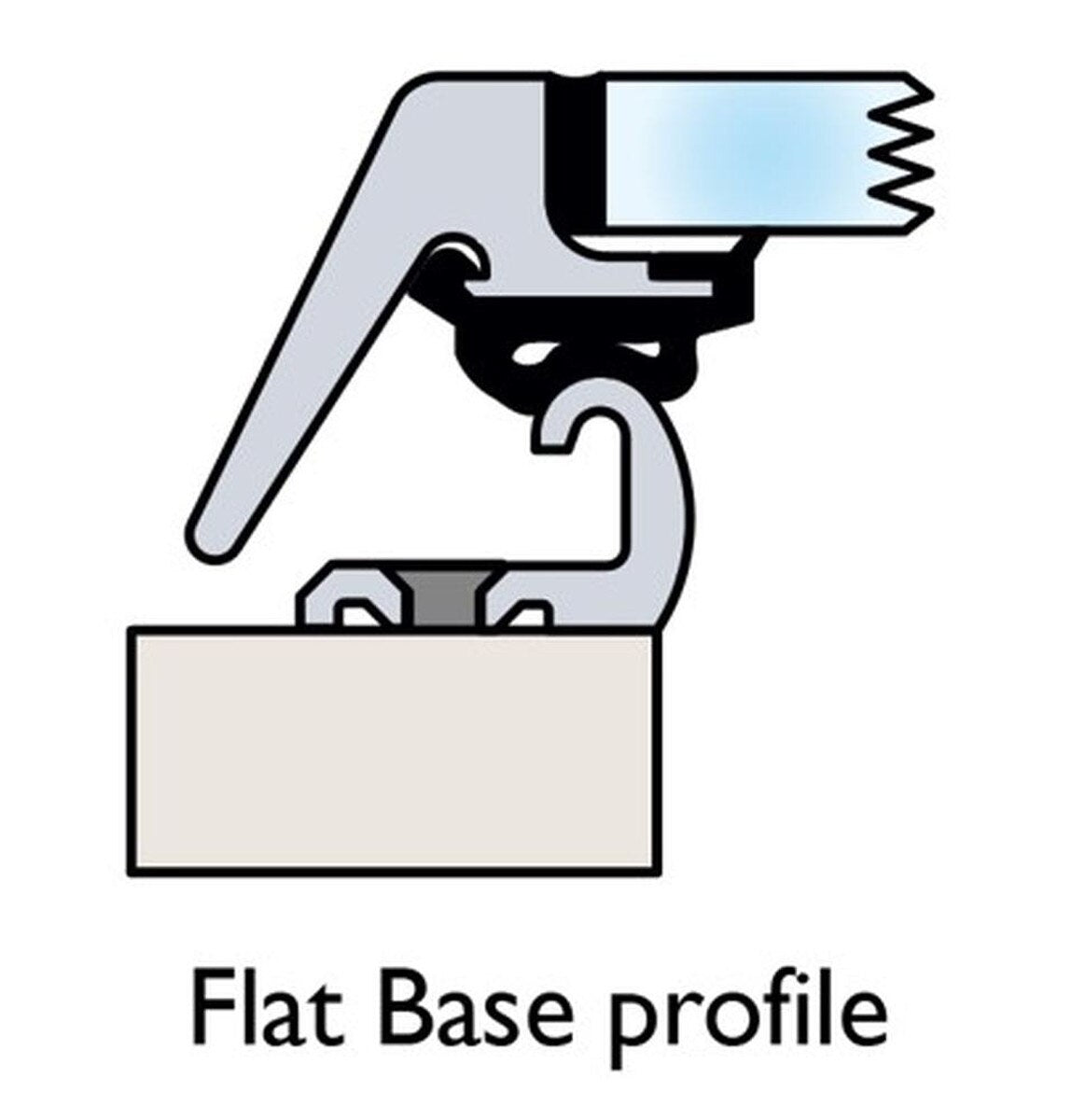

Installs on a flat surface with a maximum tolerance of ±1mm. Fastening at the hinge section uses M6 (1/4") hardware; the lower frame uses a 5mm CSK Screw No.10 UNC 2 BA. This is a flat-base hatch, which means it's not compatible with trim kits or roller shades — if you want those accessories, you'll need the flange-base version instead.

In The Box:

Hatch
Documentation

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty: 3yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
