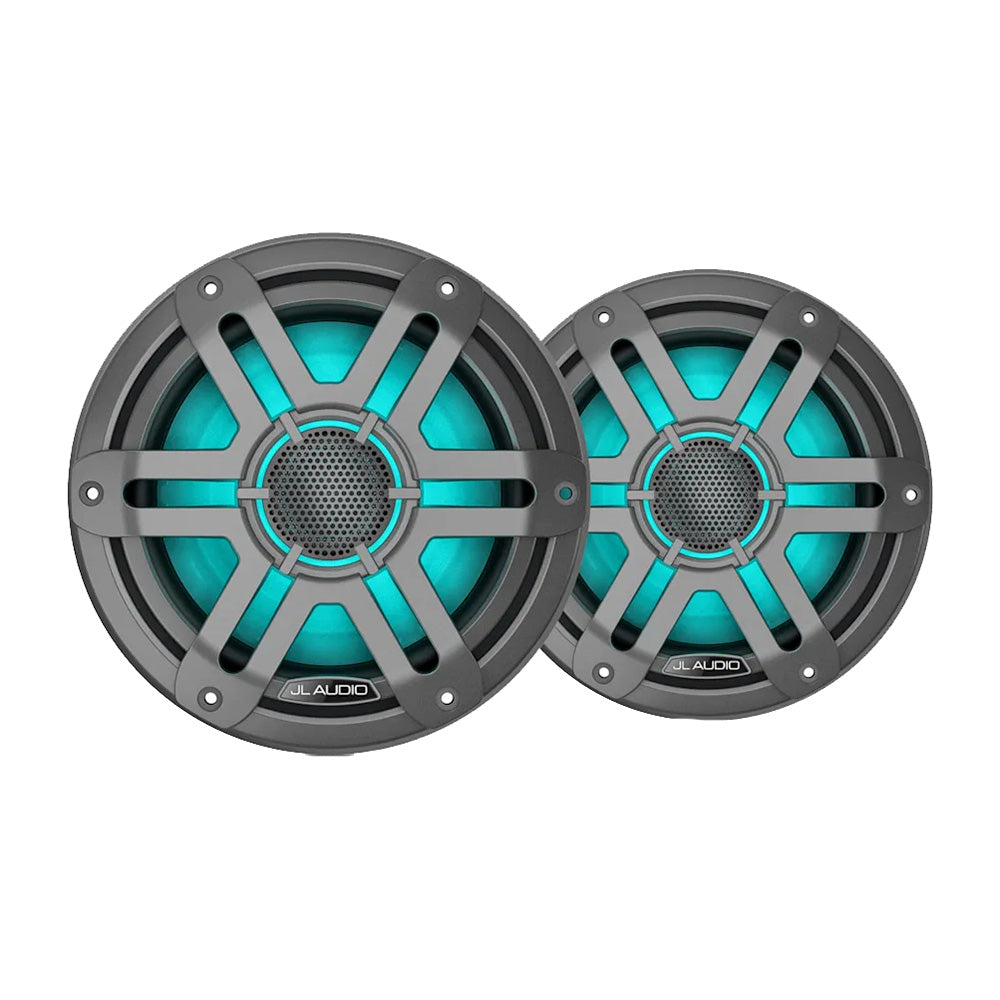

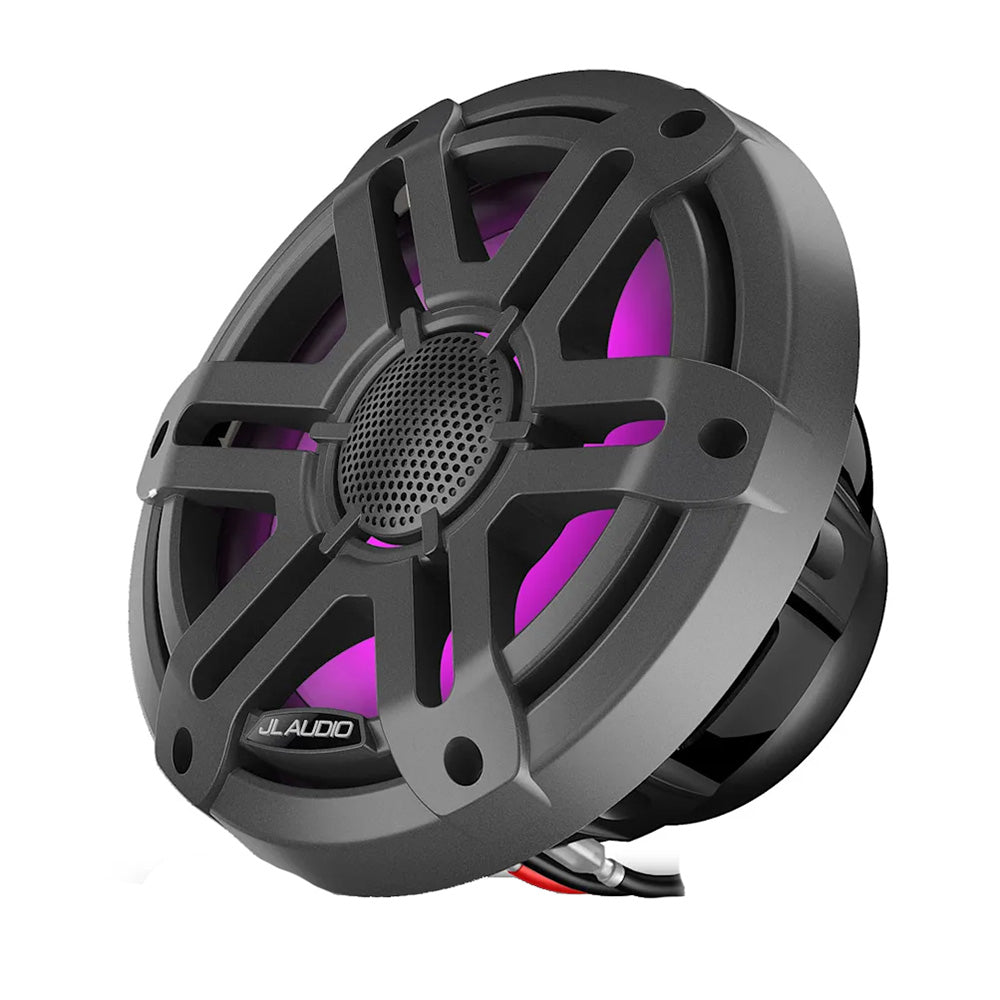

JL Audio M200 Marine Speakers 7.7" w/LED & Grey Sport Grille
Description
Description
M200 Marine Speakers 7.7" with LED & Grey Sport Grille
STUNNING MARINE DESIGN MEETS HIGH-PERFORMANCE SOUND
Enhance your experience on the water with JL Audio M200 speakers, which bring M-series audio for less.
Features:
- SILK DOME TWEETER DELIVERS SMOOTHER SOUND
- RGB LED LIGHTING
- INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)
- MARINE-GRADE CONSTRUCTION
VERSATILE COAXIAL MARINE SPEAKERS
With 50- to 60-watt RMS power handling, these speakers deliver loud, clean sound with less distortion.
SILK DOME TWEETER
A bridge-mounted 1-inch edge-driven silk dome tweeter with a neodymium magnet and ferrofluid cooling delivers a smoother and warmer sound for all your cruises.
SALT AND SUN PROTECTED
Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes, with corrosion-resistant connections and circuit boards to withstand salt and sun.
General:
- LED connection: Flying lead with waterproof connector, 4-conductor 20 AWG wire (selected Sport models only)
Specifications
Specifications
Identification
| MPN | 010-04757-01 |
|---|
Dimensions
| Size | 7.7" |
|---|---|
| Diameter | 7.70" (196 mm) |
| Depth | 4.60" (117 mm) |
| Tweeter Size | 1.00" (25 mm) |
Mounting Dimensions
| Mounting Depth Clearance | 3.07" (78 mm) |
|---|---|
| Frontal Grille Protrusion | 1.38" (35 mm) |
| Mounting Hole | 6.25" (159 mm) |
| Bolt Hole Circle | 6.92" (176 mm) |
Audio
| Speaker Type | Coaxial |
|---|---|
| Continuous Power Handling (RMS) | 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 88 dB |
| Frequency Response (+/- 3 dB) | 45 Hz-20 kHz |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power (RMS) | 40-100 W/Channel |
| Speaker Connections | Spade connectors |
| LED Lighting | Yes - RGB |
Materials
| Color | Gray Sport |
|---|---|
| Cone Material | Injection-molded, mica-filled polypropylene |
| Tweeter Type | Silk Dome |
Warranty/Certifications
| Warranty | 3 Years |
|---|
