Abyss  |  SKU: ABY/AB-12V220

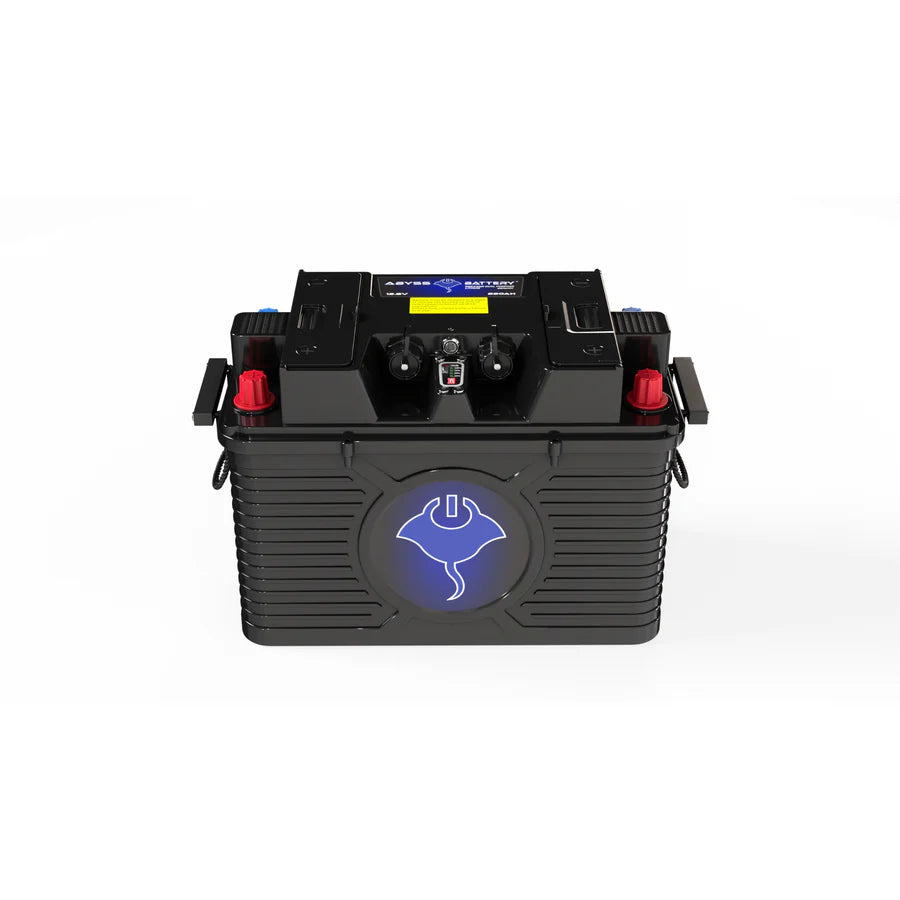

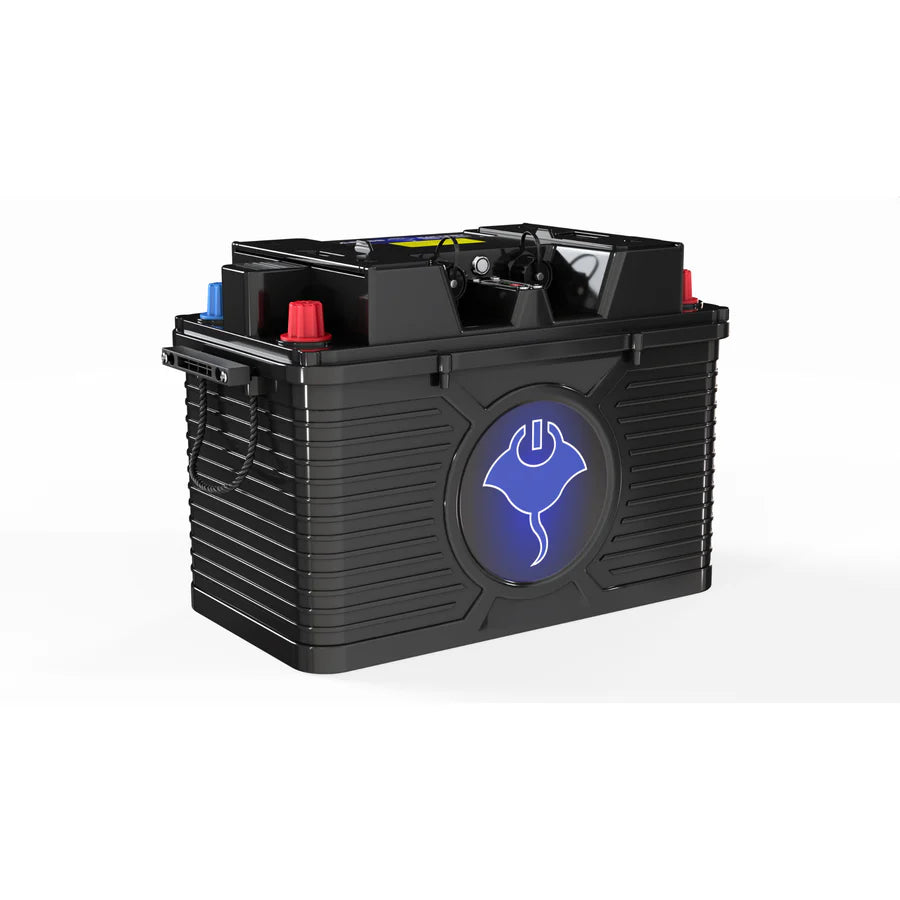

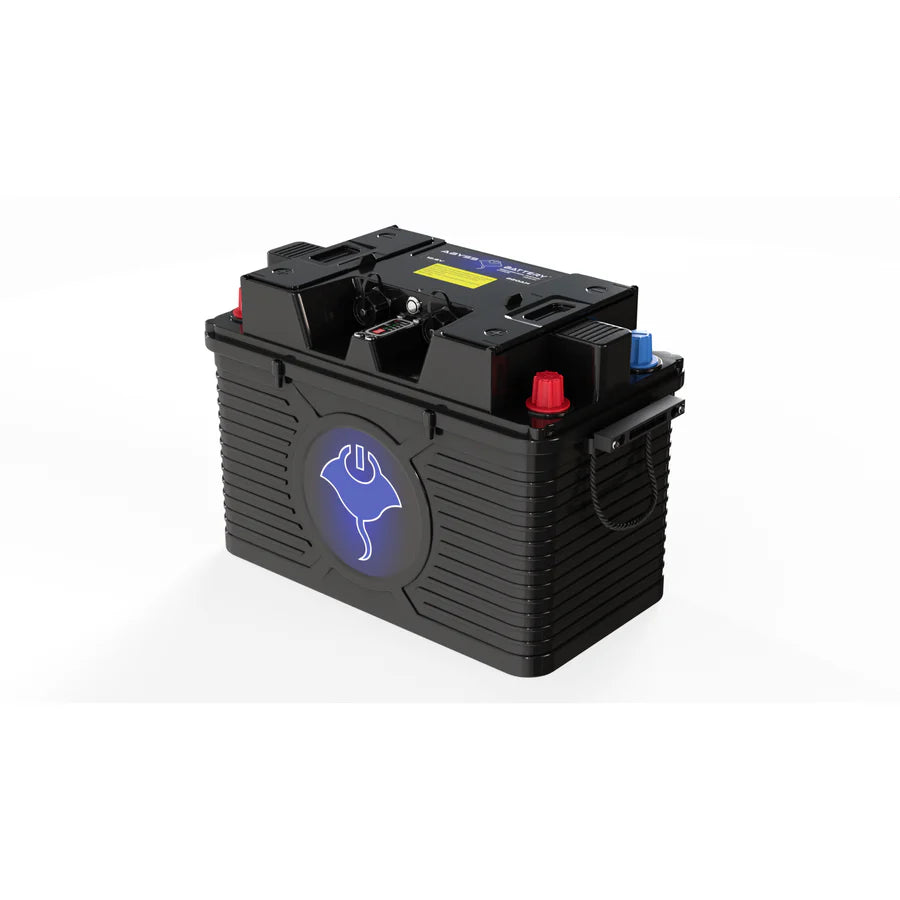

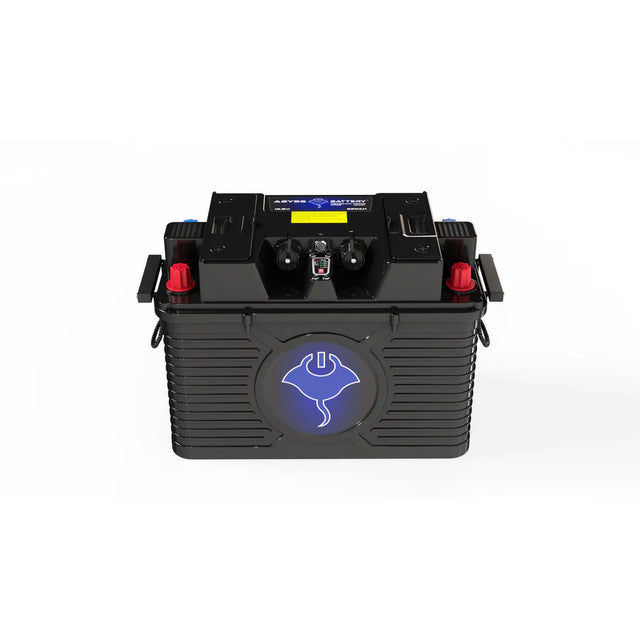

12v 220ah Dual Purpose Lithium Battery

12v 220ah Group 31 LiFePO4 Dual Purpose Lithium Battery w/ NMEA2000

$2,29998

Dropshipped From Manufacture

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Crank. Cruise. Connect. Start your engine, power your electronics, and see it all on your MFD.

Turn your helm into a command center. The ABYSS BATTERY® 12V 220Ah NMEA 2000‑compliant lithium battery combines true dual‑purpose performance (starting + deep‑cycle) with smart network visibility—so Garmin, SIMRAD, Raymarine, and other NMEA 2000 MFDs can display live battery status right on screen. Built in a marine‑grade IP67 sealed case and engineered with a unique 4‑terminal layout, it makes rigging cleaner, adds connection flexibility, and delivers massive, stable 12V power for modern boats.

Specifications
  • MPN
    AB-12V220
  • Physical
    Group Size: 31
    L: 14.9" (330 mm)
    W: 8.1" (173 mm)
    H: 10.1" (216 mm)
    Weight: 46.9 lbs (21.3 Kg)
  • Power
    Max Continuous Discharge: 200 A
    Peak Discharge Current: 1800 A Surge / 400 A @ 60s
    Discharge Cut-off Voltage: 10V

    Charge Voltage: 14.0±0.4V
    Standard Charge Current: 40 A
    Fast Charge Current: 150 A

    Discharge Efficiency: 98-100% @1C
    Self Discharge Rate: Less Than 3%/month
  • Battery
    Type: Cylindrical LiFePO4
    Cycle Life:
    - 3000 cycles @ 100% Depth of Discharge (DOD)
    - 6000 cycles @ 80% DOD
    Self Discharge Rate: Less than 3% per month
    Charge Efficiency: 100% @0.2C
  • Connectivity
    NMEA 2000 - SOC %, volts, amps, temperature, charge/discharge status
  • IP Rating
    IP67
  • Temp Range
    Charge: 0°C to 55°C (32°F to 131°F) | Discharge: -20°C to 60°C (-4°F to 140°F)

Reviews (0)

In The Box

In The Box:

Lithium Battery
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 5yr Free Replacement / 35% Off Up To 10yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
