Abyss  |  SKU: ABY/AB-24V110

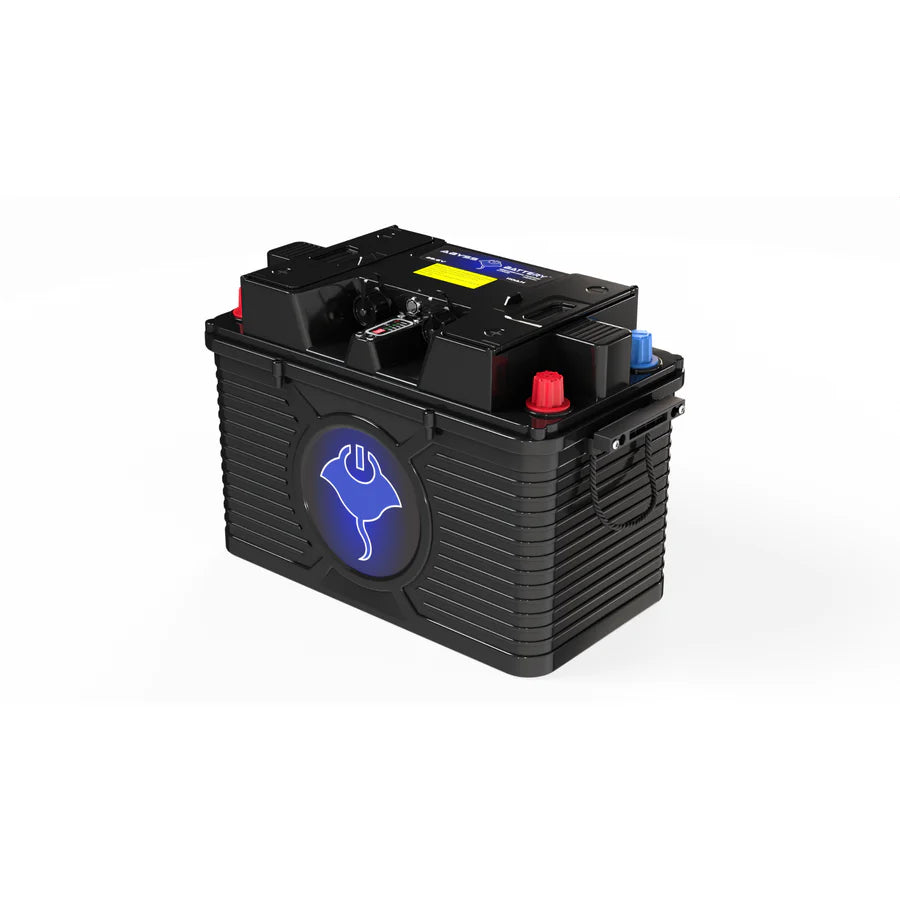

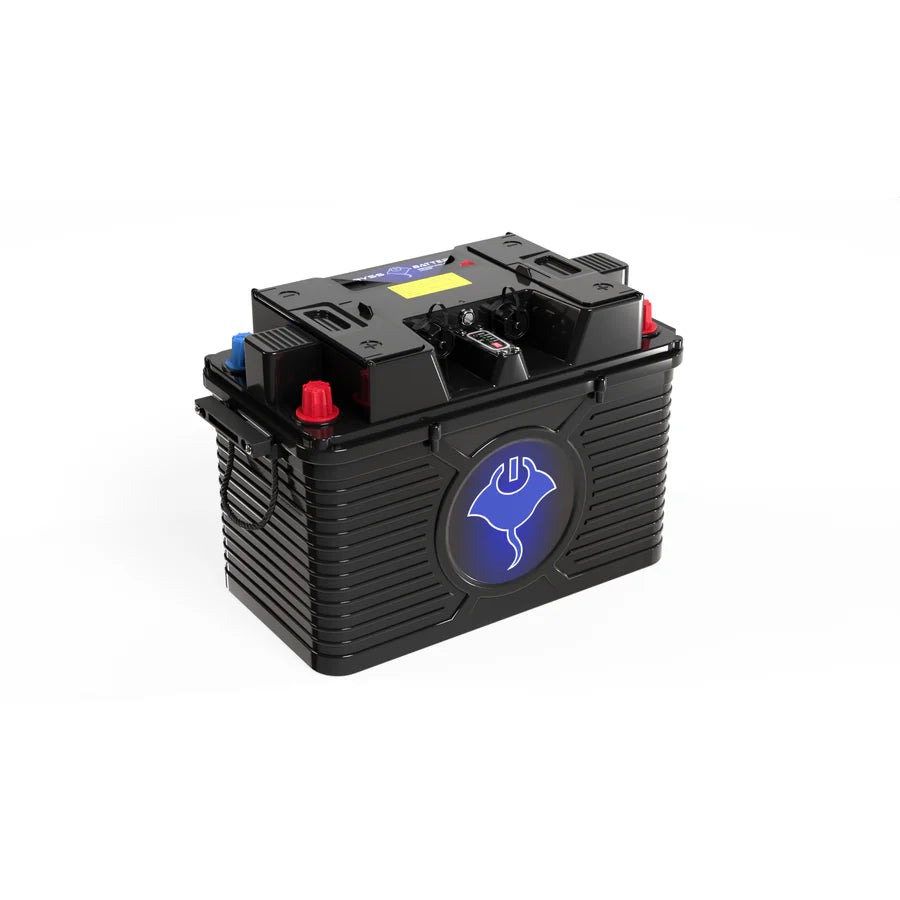

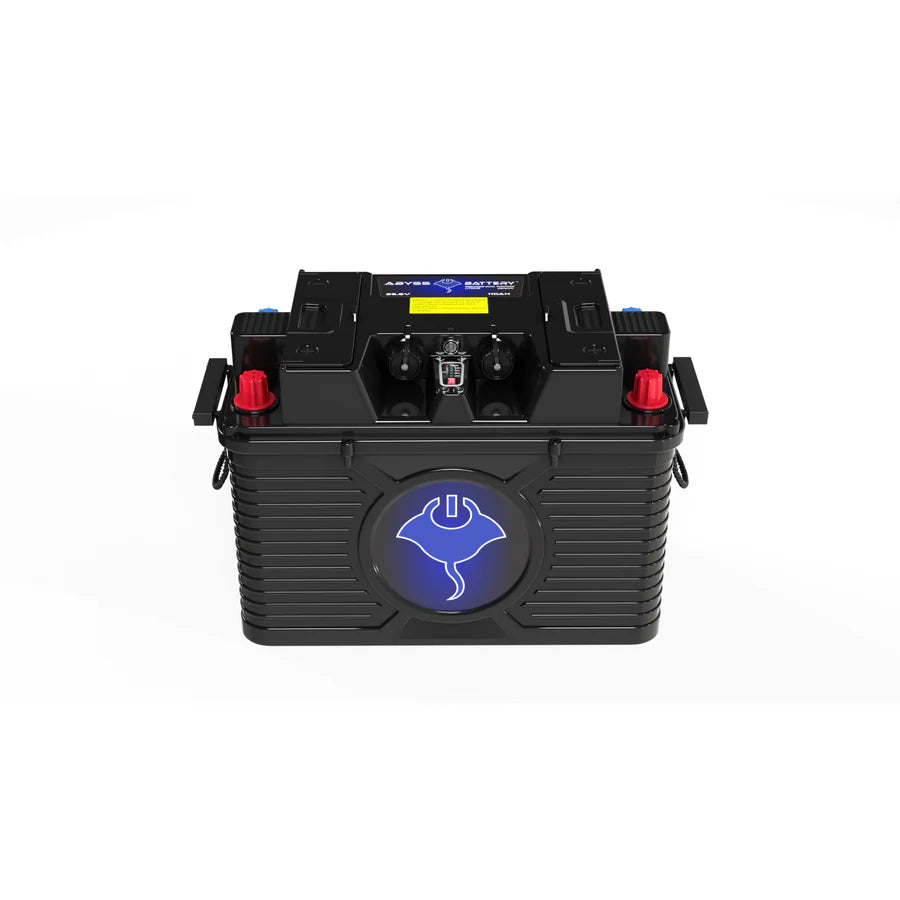

24v 110ah Dual Purpose Lithium Battery

24v 110ah Group 31 LiFePO4 Dual Purpose Lithium Battery w/ NMEA2000

$2,29998

Dropshipped From Manufacture

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Start big 24V diesels. Power your house loads. See it all on your MFD.

Built for serious boats and serious engines, the ABYSS BATTERY® 24V 100Ah is a true dual‑purpose lithium battery that combines 24‑volt starting authority for large diesel engines with deep‑cycle stamina for today’s power‑hungry electronics. With NMEA 2000® compliance, IP67 marine sealing, and a unique 4‑terminal case that simplifies rigging, it turns your electrical system into a clean, connected, confidence‑building upgrade.

Specifications
  • MPN
    AB-24V110
  • Physical
    Group Size: 31
    L: 14.9" (330 mm)
    W: 8.1" (173 mm)
    H: 10.1" (216 mm)
    Weight: 46.9 lbs (21.3 Kg)
  • Power
    Max Continuous Discharge: 100 A
    Peak Discharge Current: 1000 A Surge / 400 A @ 60s
    Discharge Cut-off Voltage: 20V

    Charge Voltage: 28.8±0.4V
    Standard Charge Current: 22 A
    Fast Charge Current: 110 A

    Discharge Efficiency: 98-100% @1C
    Self Discharge Rate: Less Than 3%/month
  • Battery
    Type: Cylindrical LiFePO4
    Cycle Life:
    - 3000 cycles @ 100% Depth of Discharge (DOD)
    - 6000 cycles @ 80% DOD
    Self Discharge Rate: Less than 3% per month
    Charge Efficiency: 100% @0.2C
  • Connectivity
    NMEA 2000 - SOC %, volts, amps, temperature, charge/discharge status
  • IP Rating
    IP67
  • Temp Range
    Charge: 0°C to 55°C (32°F to 131°F) | Discharge: -20°C to 60°C (-4°F to 140°F)

Reviews (0)

In The Box

In The Box:

Lithium Battery
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 5yr Free Replacement / 35% Off Up To 10yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
