Raymarine  |  SKU: E70656-00-102

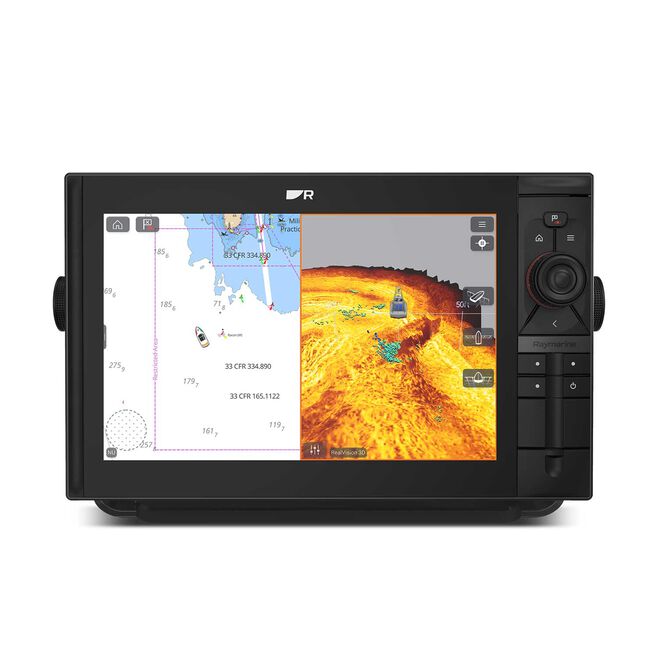

Axiom Pro 2 12 RVM

$3,99999

With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro RVM chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology. RealVision MAX increases your fish-finding game with DownVision, SideVision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.

12" Chartplotter
Barcode: 723193843697
15.0 lb
  • Physical
    Dimensions:
    W: 14.1" (358.03 mm)
    H: 8.77" (222.8 mm)
    D: 9.18" (240.4 mm) (Including Cables)
  • Screen
    Touchscreen: Yes
    Size: 12.1"
    Resolution: 1280 x 800
    IPS Display: Yes
  • Sonar
    Built In Sonar: Yes
    Power:
    - Traditional Dual Channel CHIRP: 1kW
    - RealVision MAX High CHIRP: 600 W
    Frequencies:
    - RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)
    - 1kW CHIRP Port: 42 - 250kHz (Transducer Dependent)
  • Power
    Power Input: 8-32v DC
    Power Draw: 29.88 W @ 12v
    Fuse: 15 A
  • Connections
    Wireless: Bluetooth 4.0, WiFi
    MicroSD Card (2) (Front Of Unit)
    Physical Connections:
    - Power
    - RayNet Network (2)
    - Sonar 1 (25 pin RealVision Max 3D)
    - Sonar 2 (11pin 1kW CHIRP)
    - DeviceNet (NMEA2000)
    - USB (Micro)
    - HDMI Out (Micro)
    - BNC Video In (On Power Cable)
    - External GPS (TNC)
  • Other
    GPS: Internal (10 Hz)
  • Built-In Chart
    LightHouse NA
  • Water Rating
    IPx7
  • Temperature Range
    -25°C to +55°C (-13°F to 131°F)
