Garmin | SKU: GAR/010-02613-00 | Barcode: 753759324278

BlueNet 30 Gateway

Name: BlueNet 30 Gateway
Brand: Garmin
SKU: GAR/010-02613-00
Price: 349.99 USD
Availability: InStock

BlueNet to Garmin Legacy Network Gateway

$349⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The Garmin BlueNet 30 gateway is required for Garmin BlueNet^™ network compatible devices to network with legacy Garmin marine devices. Through this gateway you can connect a Garmin BlueNet network to a legacy Garmin Marine Network for a premium control experience. You will only need one gateway to connect the two networks.

(The Garmin BlueNet 30 gateway is required only if connecting to legacy Garmin Marine Network products)

Specifications

MPN

010-02613-00
Physical

W: 9 7/16" (293 mm)
H: 2 13/16" (72 mm)
D: 4 7/16" (112.6 mm)
Weight: 1.2lbs (.5 kg)
Power

Input: 10-32v DC
Typical Power Draw: 150 mA
Max Power Draw: 200 mA
Fuse: 2 A
Connectivity

The Garmin BlueNet 30 gateway is required only if connecting to legacy Garmin Marine Network products.

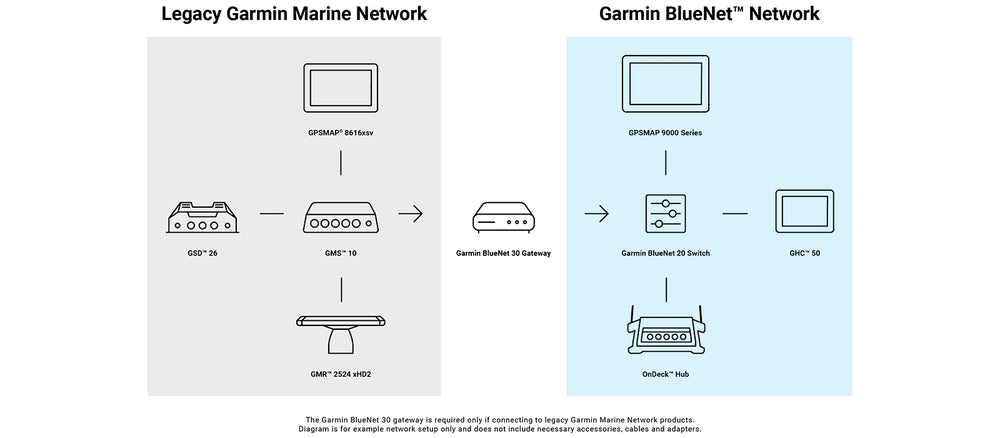

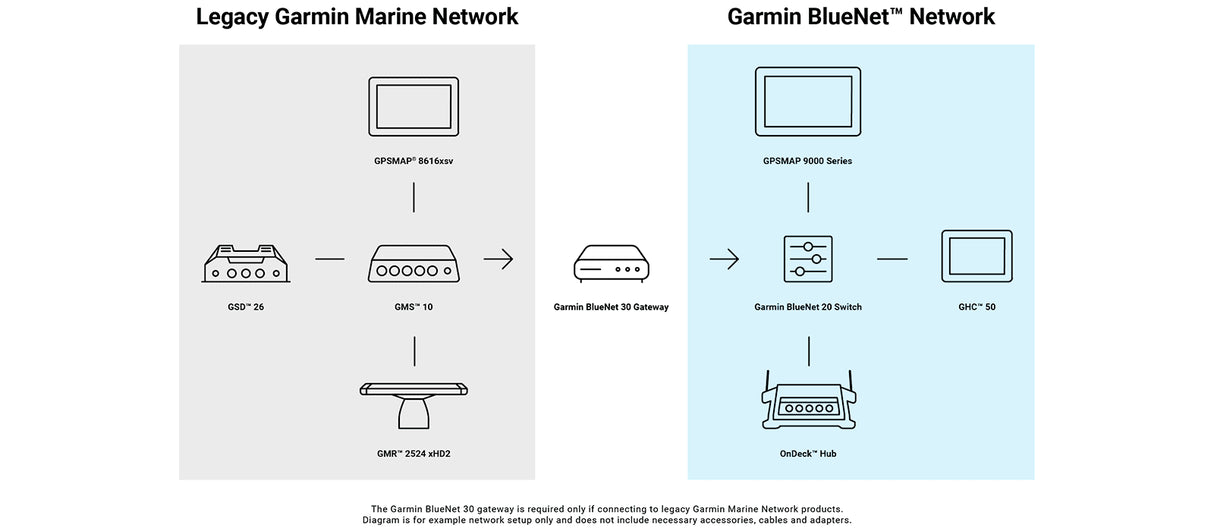

Diagram is for example network setup only and does not include necessary accessories, cables and adapters.

Physical Connections:
- Power
- Garmin Marine Network (x2)
- Garmin BlueNet Network
IP Rating

IPx7
