Garmin  |  SKU: GAR/010-03386-01

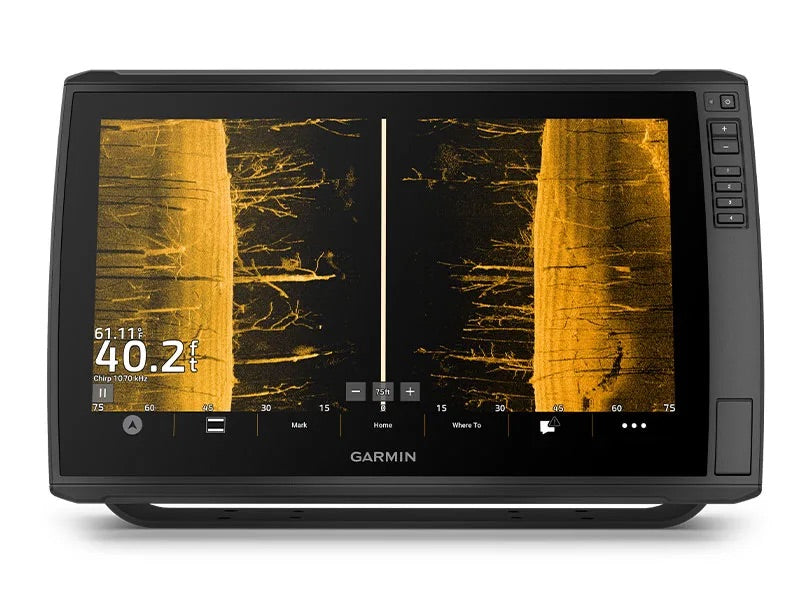

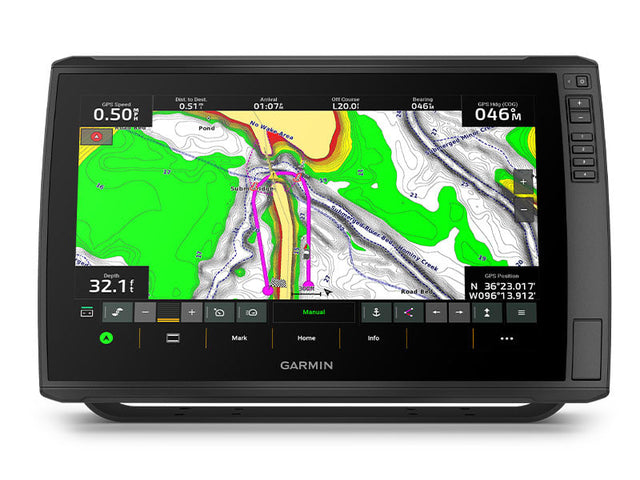

ECHOmap Ultra 2 166sv w/ GT56uhd

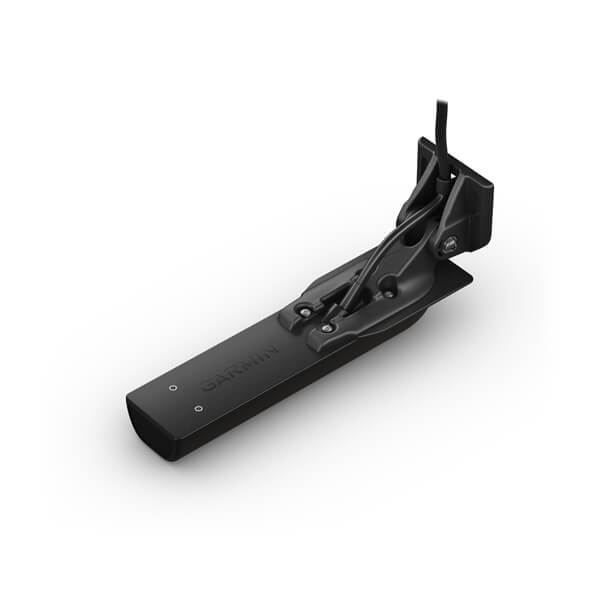

16" MFD w/ Built-In Charts & Sonar - Includes Transom Mount Transducer

Regular price $4,79999
Shipping calculated at checkout.

Pre-order now to make sure you don't miss out!

As soon as it's in stock, we will ship it to you.

How Pre-Ordering Works

SEE BIGGER CATCHES ON A BIGGER SCREEN

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+ mapping. Plus, there’s support for the full line of LiveScopesonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.


Barcode: 753759353360
6.0 lb
  • Physical
    Dimensions:
    W: 16.9" (43 cm)
    H: 10.5" (26.6 cm)
    D: 3.14" (8 cm)
    Weight: 9.5 lbs (4.31 kg)
  • Screen
    Touchscreen: Yes (Keyed Assist)
    Size: 15.6" Diagonal (13.6" x 7.7")
    Resolution: 1920 x 1080
    IPS Display: Yes
  • Power
    Power Input: 9 to 18 Vdc
    Power Draw:
    - Typical: 3.95 A
    - Max: 6.6 A
  • More
    GPS: Built In (10 Hz)
  • Physical Connections
    Wireless: WiFi, Bluetooth, ANT+

    Physical Connections:
    - Power
    - Network (x2) (Large Garmin Marine Network)
    - Sonar (12pin)
    - NMEA2000
    - HDMI Out
