Garmin  |  SKU: GAR/010-03855-01

GPSmap 1543xsv

Ultrawide 15" MFD w/ Built-In Charts & Sonar

$4,49999

WIDEN YOUR HORIZONS

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

  SLEEK MODERN DESIGN

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

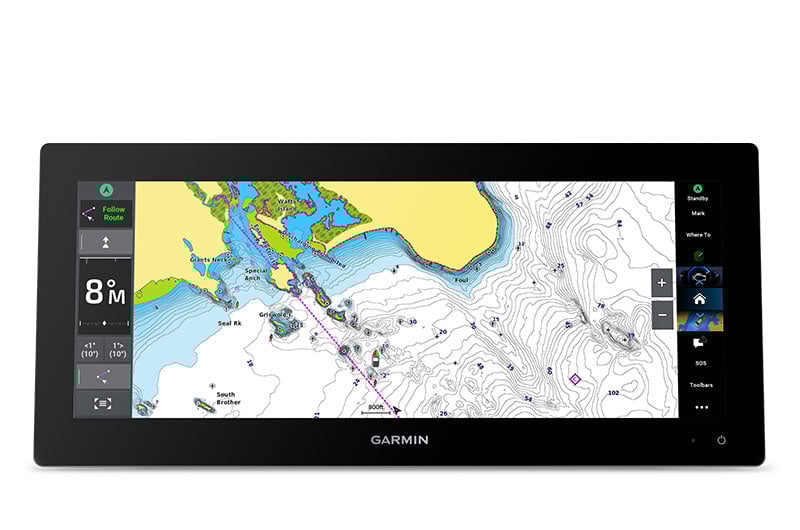

  PRELOADED MAPPING

Navigate waters confidently with preloaded Garmin Navionics+™ charts.

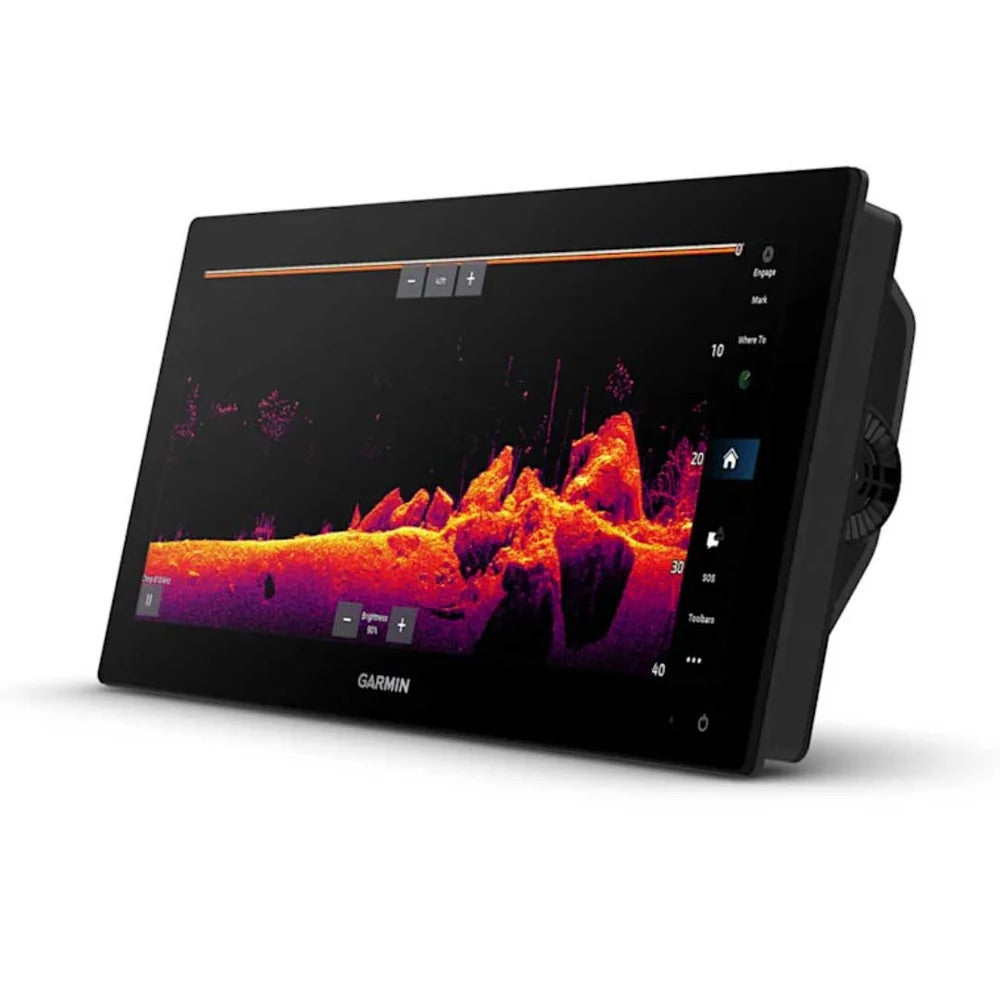

ULTRA HIGH-DEFINITION SCANNING SONAR

See below your boat with built-in sonar capabilities

15" Chartplotter
Barcode: 753759345747
10.0 lb
  • Product Series
    Garmin GPSmap x3
  • Physical
    Dimensions:
    W: 15.3” (388.9 mm)
    H: 7.02” (178.5 mm)
    D: 3.3” (82.9 mm)
    Weight: 7.2 lbs (3.26 kg)
  • Screen
    Touchscreen: Yes
    Size: 14.5" (13.6" x 5.1") (Ultra-Wide)
    Resolution: 1920 x 720
    IPS Display: Yes
  • Sonar
    Built In Sonar: Yes (12pin)
    Power: 1kW
    Frequencies:
    - Traditional: built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
    - ClearVu: built-in 260/455/800/1000/1200 kHz

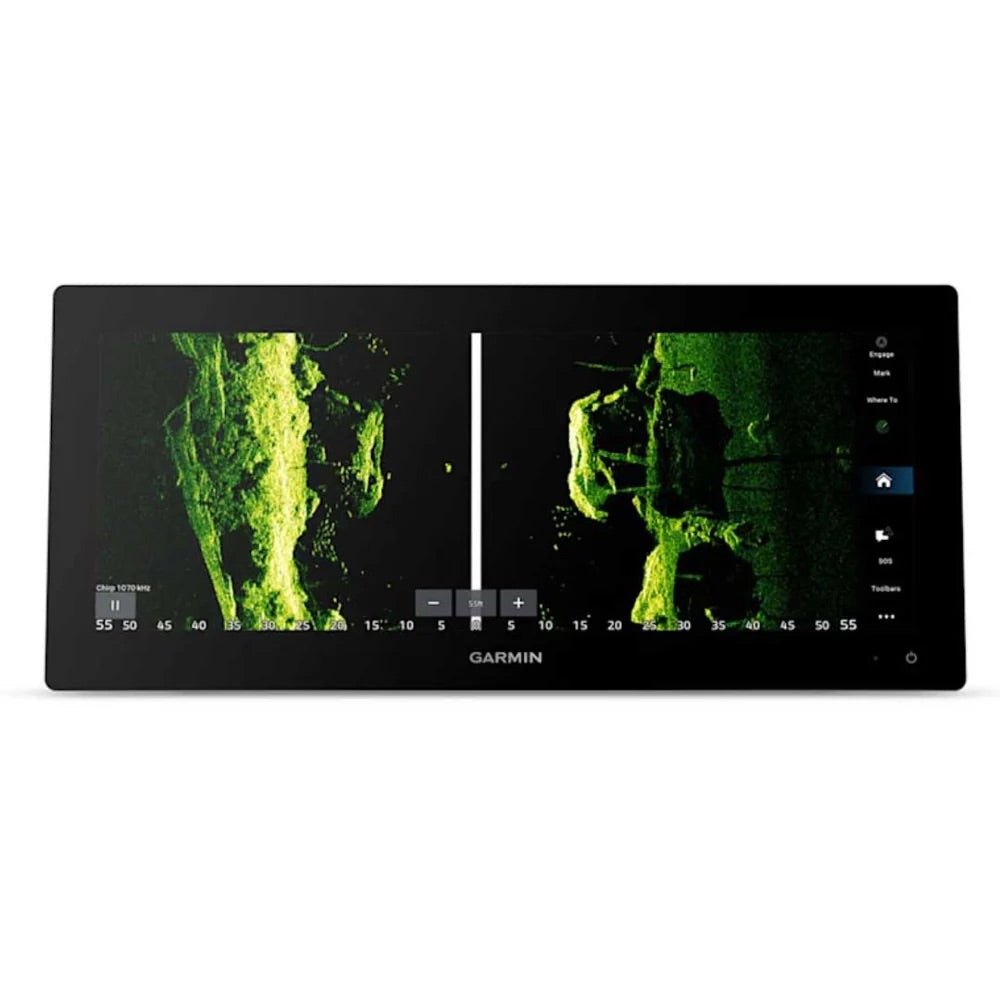

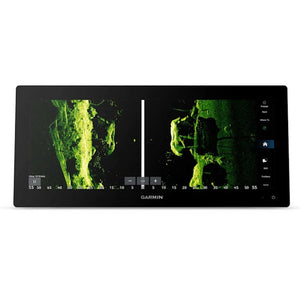

    - SideVu: built-in 260/455/800/1000/1200 kHz
  • Power
    Power Input: 10 - 32v DC
    Power Draw:
    - Typical: 2.44 A
    - Max: 4.21 A
  • Connections
    2 microSD cards (Back Of Unit)
    Wireless: BlueTooth | WiFi | ANT+

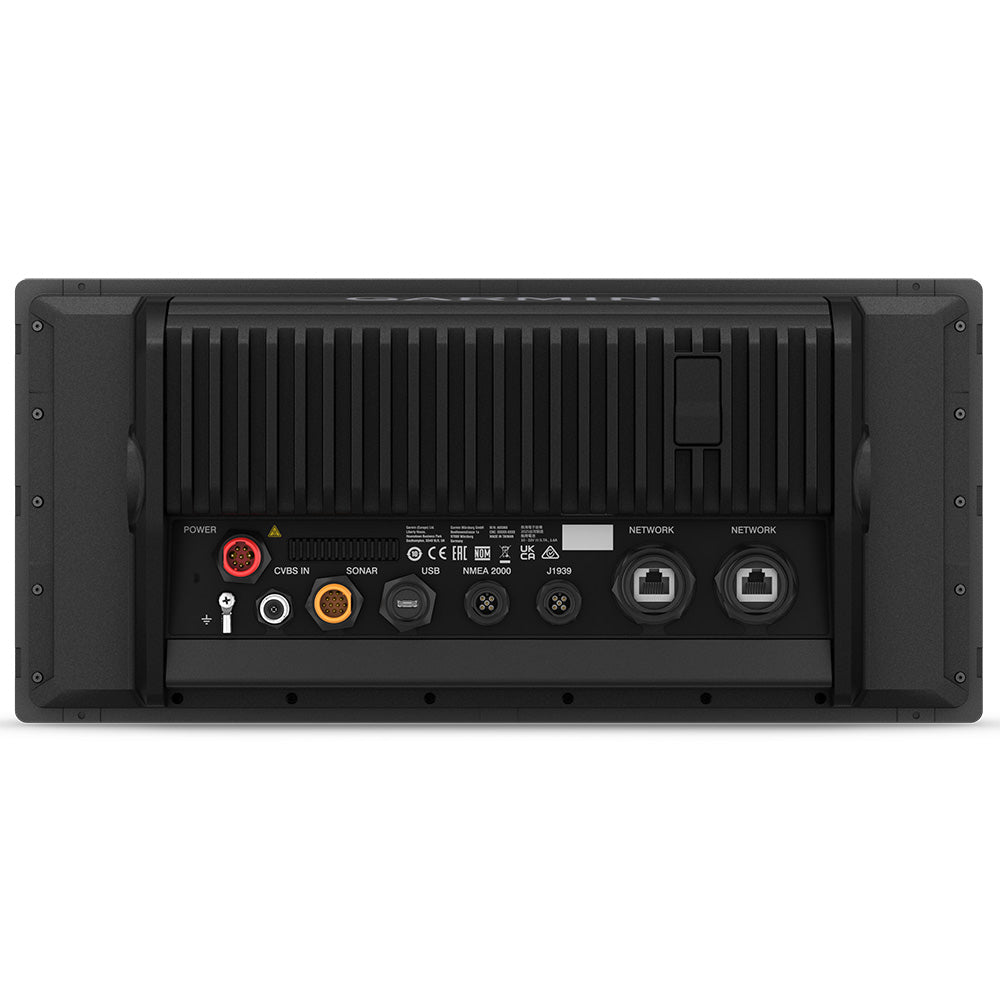

    Physical Connections:
    - 12pin Sonar
    - Network (2)
    - MEA2000
    - J1939
    - USB
    - 8pin Power
    - Video In
  • Other
    GPS: Internal (10Hz)
  • Built-In Chart
    Garmin Navionics+
  • Water Rating
    IPx7
