Garmin  |  SKU: 010-02584-00

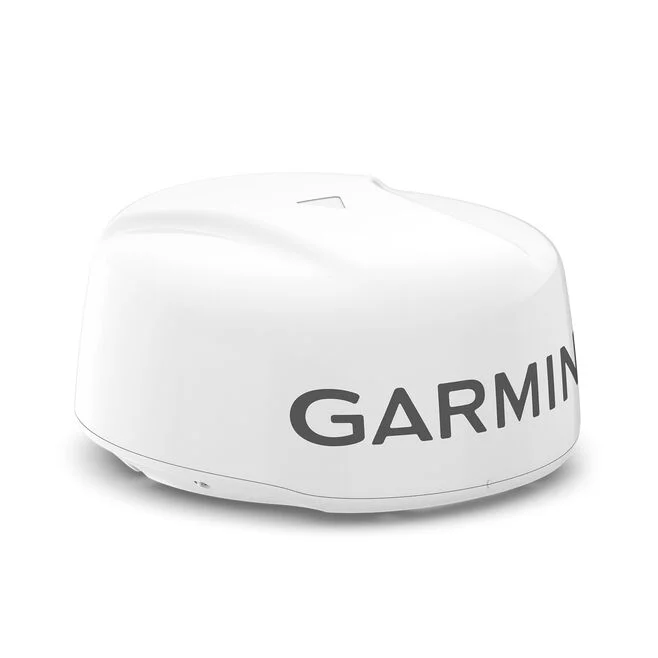

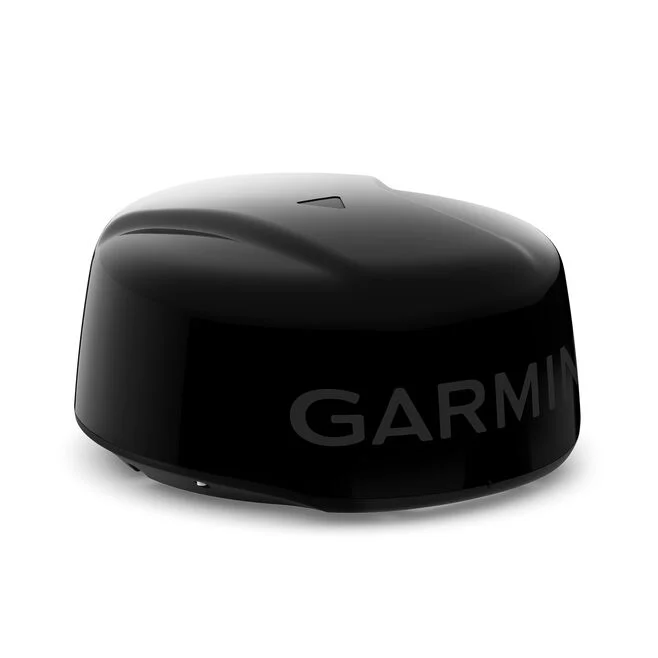

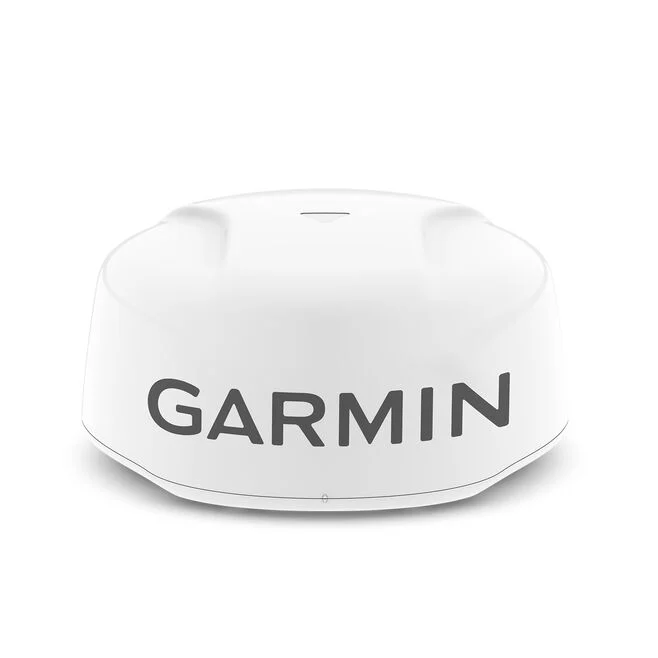

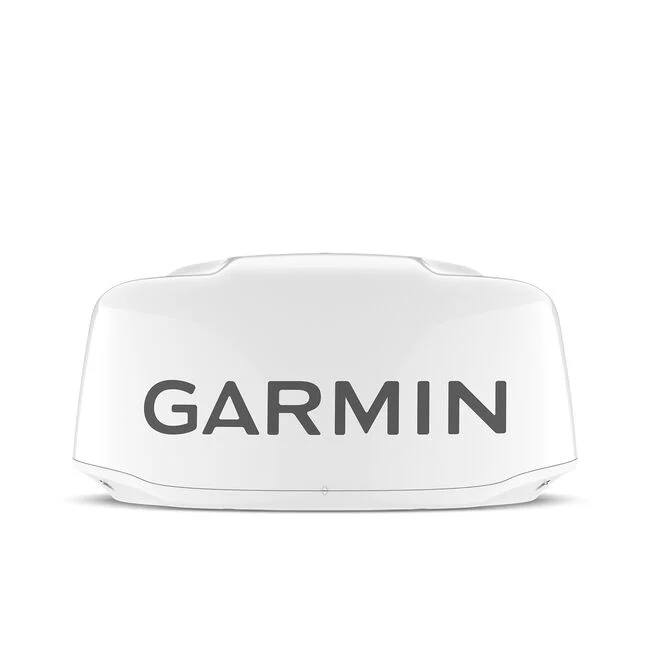

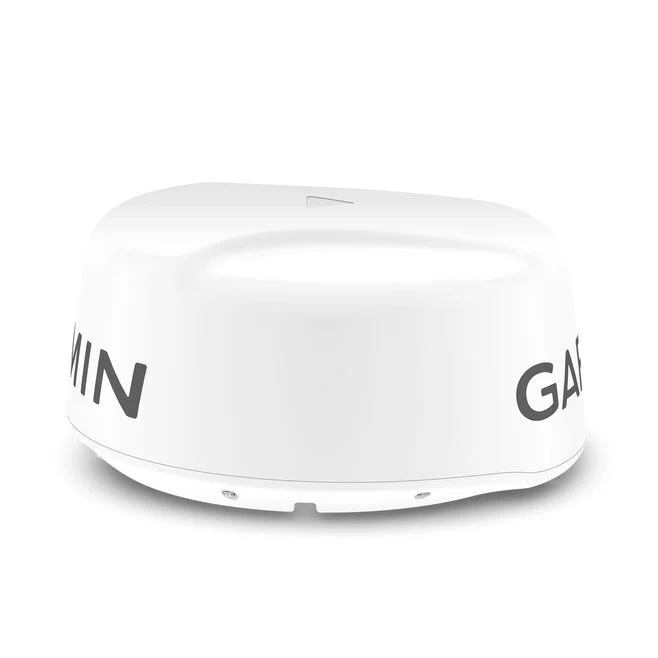

Fantom 18x Dome Radar

$2,19999
Color: White

HIGH-POWERED RADAR

Tailor your 50-watt solid-state dome radar to your boat with a white or black option — both with a range from 20’ to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.

MOTIONSCOPE TECHNOLOGY

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

POWER SAVE MODE

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don’t.

Looking for Manuals & Documents?


Barcode: 753759282219
16.0 lb
  • Size
    18"
  • Power Output
    50 W
  • Technology
    • Solid-state
  • Radar
    Beamwidth: 5.2° horizontal, 25° vertical
    Max Range: 48 nm
    Min Range: 6 meters
    RPM: Up to 60 rpm, depending on settings
  • Physical
    Dimensions:
    W: 20" (50.8 cm)
    H: 9.8" (24.8 cm)
    Weight: 14.0 lbs (6.4 kg)
  • Power
    Power Input: 10-32v DC
    Power Draw:
    - Standby: 4 W
    - Transmit (Power Save): 24 W
    - Transmit (Normal): 33 W
  • Connections
    Garmin Marine Network
  • Water Rating
    IPx7
