Simrad  |  SKU: 000-15764-001

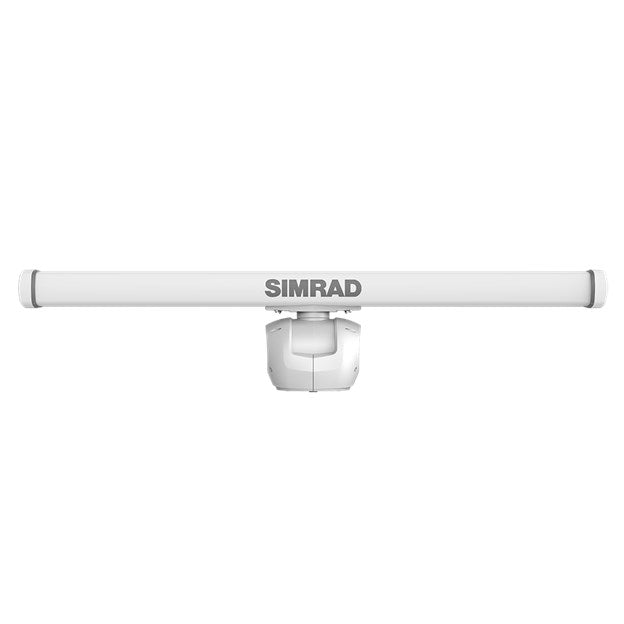

HALO 3006 Open Array Radar

$8,99999

Not Eligible For Free Shipping. Flat Rate Shipping Fees Applied At Check Out.

Click Here For Flat Rate Shipping Rates

Get more from your radar – tracking birds, hazards, and storms from greater distances with HALO® 3000. Benefit from safer navigation and unrivalled ease of use with a range of preset modes, including the all-new Bird+ Mode – giving sportfishing enthusiasts the power to the detect flocks of birds at an impressive 8nm. While advanced Pulse Compression technology ensures superior clarity and precision over both short and long distances.

6' Open Array Radar
Barcode: 9420064118175
75.0 lb
  • Size
    6'
  • Power Output
    130 W
  • Technology
    • Solid-state
  • Physical
    Dimensions:
    Pedestal: 12.76" (324mm) x 11.57" (294mm)
    6' Array: 6.72' (80.59" / 2047mm)
    Weight:
    Pedestal: 44.8lbs (20.3 Kg)
    6' Array: 14.3lbs (6.5 Kg)
  • Power
    Power Input: 10.8 - 31.2 V
    RI50 Power Output: 50V
    Power Draw:
    - Standby: 11W
    - No Wind: 45-75W
    - Max Wind: 250W
  • Other
    Beam Width:
    - Horizontal: 1.8°+/-10% (-3 dB width) – 1.3° with Beam sharpening mode on
    - Vertical: 25° +/-10 % (-3 dB width)
    Max Wind Load: 80 kn
  • Water Rating
    IPx6
