Raymarine  |  SKU: T70492

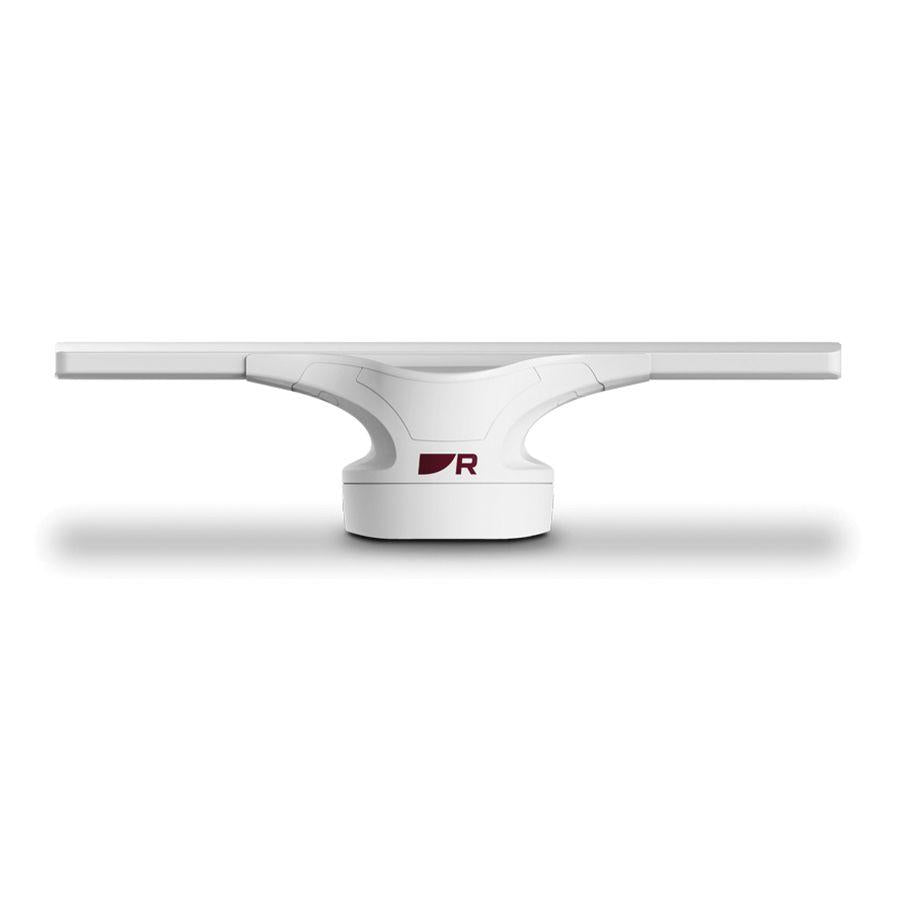

Cyclone 4' Radar Kit

$7,49999

Not Eligible For Free Shipping. Flat Rate Shipping Fees Applied At Check Out.

Click Here For Flat Rate Shipping Rates

 SOLID STATE OPEN ARRAY MARINE RADAR

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.


Barcode: 723193836620
56.0 lb
  • Size
    4'
  • Technology
    • Solid-state
  • Radar
    Beamwidth: 2.83° x 25º
    Max Range: 72 nm
    Min Range:
    RPM: 12/24/36/48/60
  • Physical
    Pedestal: 388 mm x 360 mm x 335 mm
    Array: 52.59" (1336 mm)
    Weight:
    Pedestal: 35.27lb (16Kg)
    Array: 19.84lb (9Kg)
  • Power
    Power Input: 10.2 - 31.2 V dc
    Power Draw:
    - Stby: 30 W
    - Typical: 70 W
    - Max: 170 W
  • Connections
    RayNet
  • Other
    ARPA: Tracking of 100 Simultaneous ARPA targets (Requires Heading Sensor)
    Max Wind Load: 100kt
  • Water Rating
    IPx6
