Simrad  |  SKU: 000-14536-001

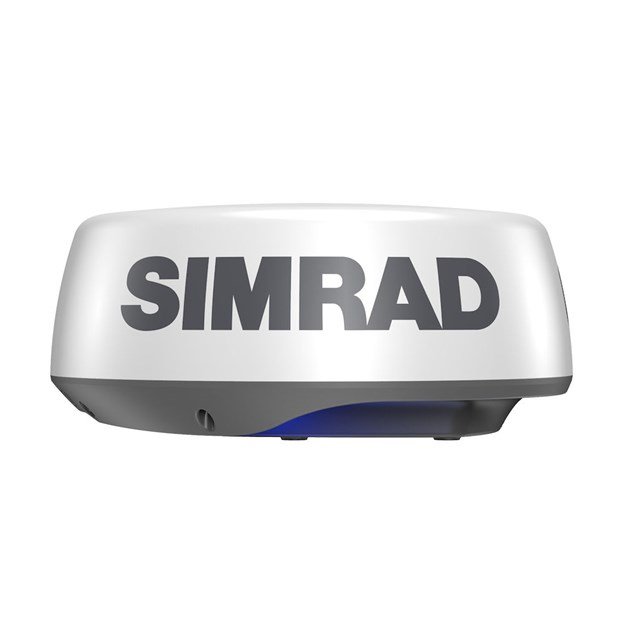

HALO 20+ Dome Radar

$2,29999
HALO20+ delivers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 36 nautical miles—from a compact 20-inch dome antenna.
20" Dome Radar
Barcode: 9420024173787
22.05 lb
  • Size
    20"
  • Technology
    • Solid-state
  • Radar
    Type: Pulse Compression
    Beamwidth: 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V
    RPM: Up to 60 RPM (Range Dependent)
    Modes: Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
  • Physical
    Dimensions:
    W: 20" (510 mm)
    H: 8.8" H (223mm)
    Weight: 13lbs (5.9kg)
  • Power
    Power Input: 10.5 - 31.2 VDC
    Power Draw:
    - Typical: 20W
    - Max: 29W
  • Other
    Max Wind Speed: 100 knots (51 m/s)
  • Water Rating
    IPx6
