Description

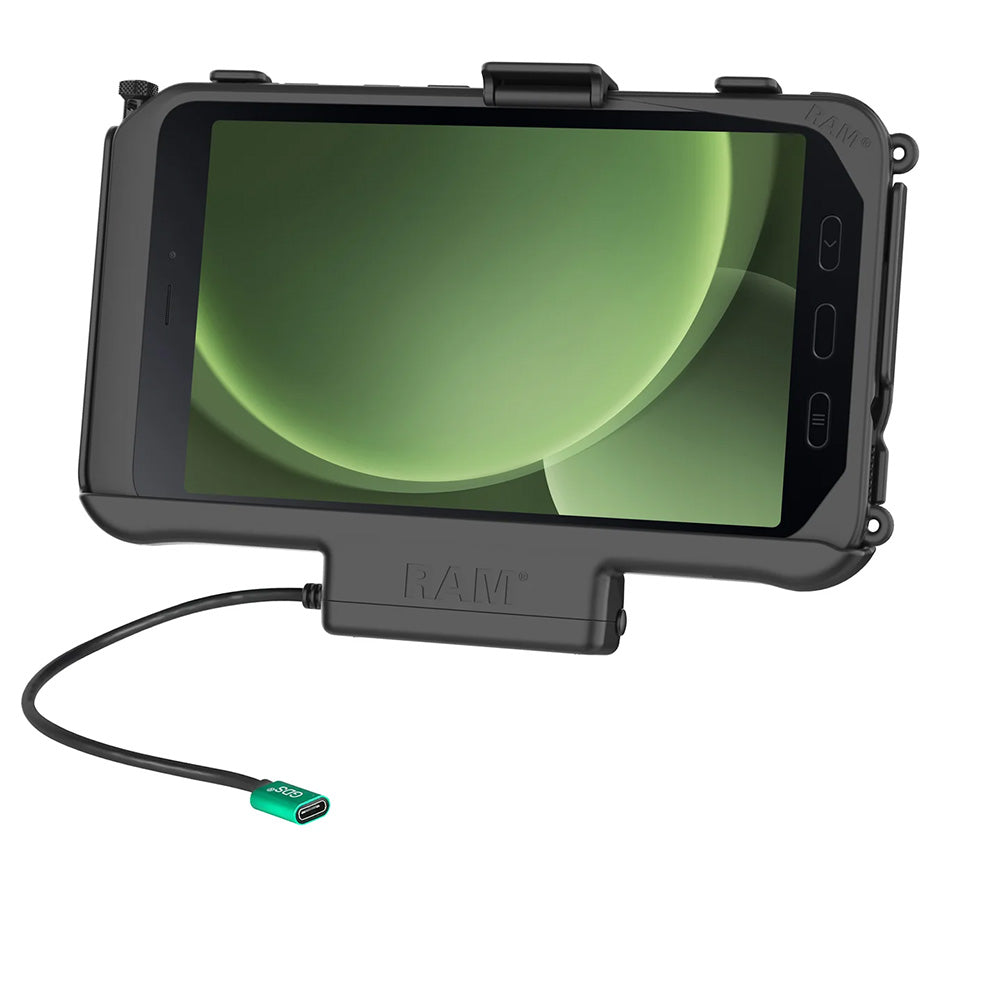

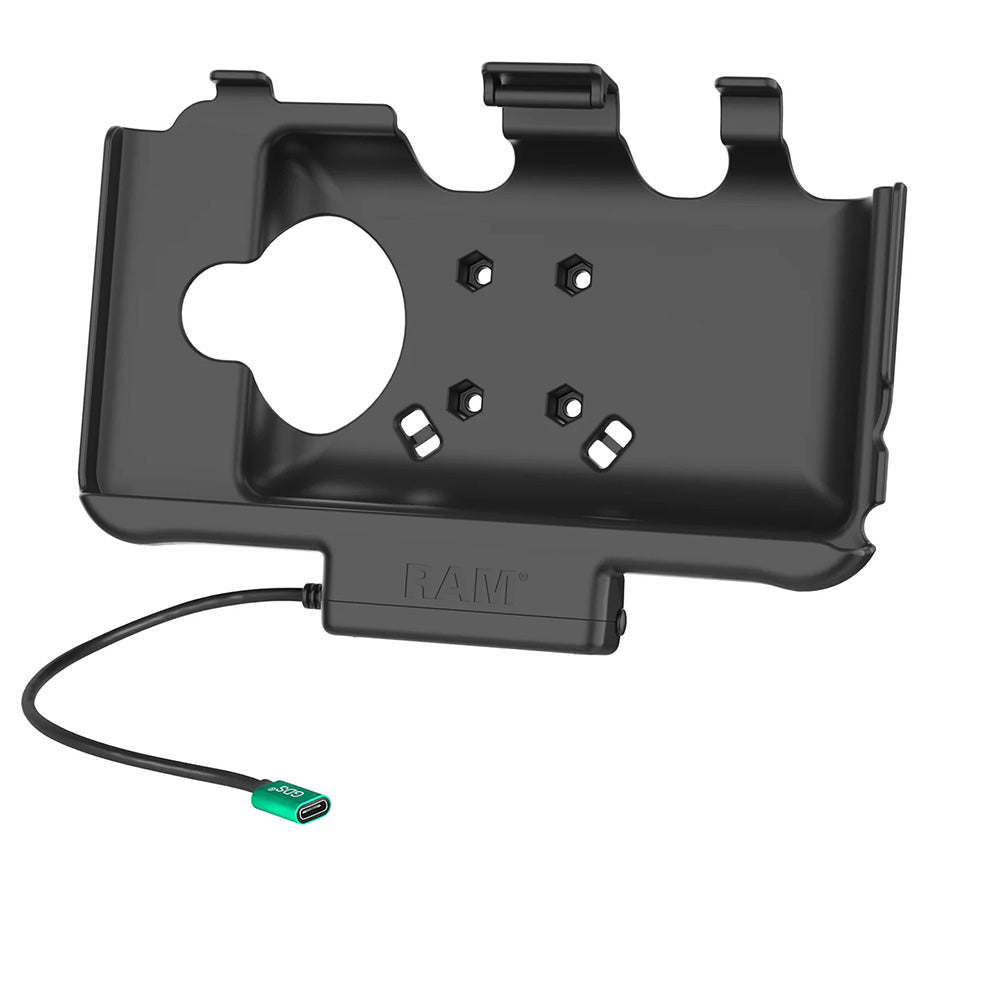

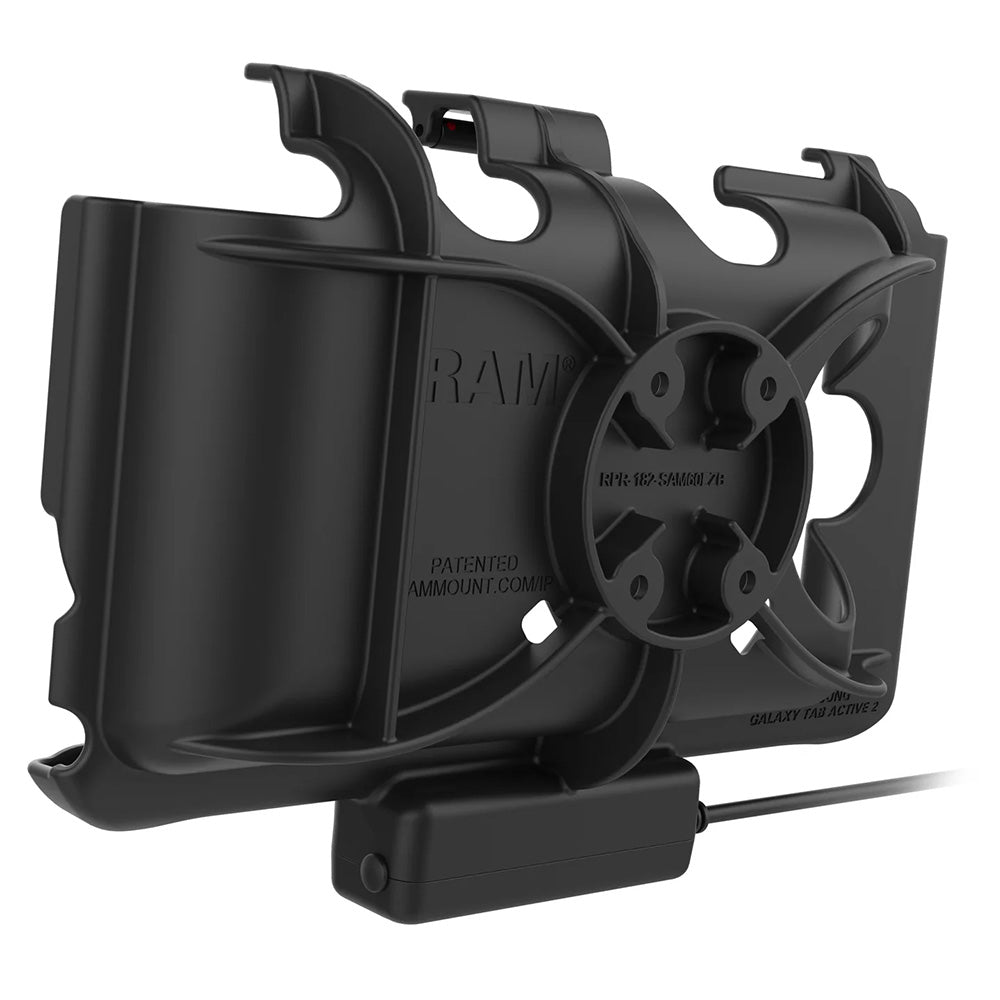

RAM® USB-C Powered Dock for Samsung Tab Active5 & 3

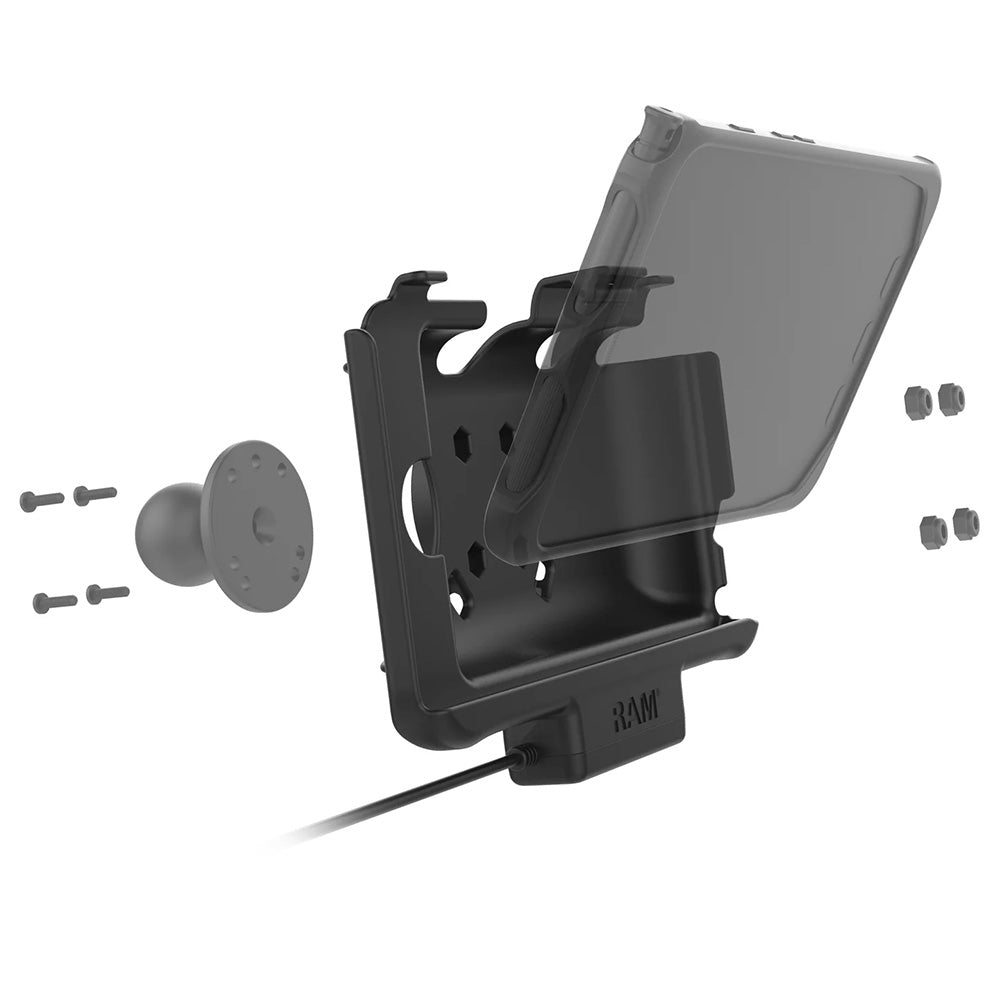

The RAM® USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS® pogo pins. This modular dock is compatible with the RAM® Skin™, factory device skin, and GDS® Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

Features:

  • RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; the built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Access to speakers, mics, and headphone jack remains while the device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

Specifications

Identification

MPN RAM-HOL-SAM60CPU
Barcode 793442018428

General

Hardware Included (4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) Cable Clamp, (2) Large Cable Ties, (5) Small Cable Ties
Packaging Style Poly Bag
Input Connector USB Type-C Female

Physical

Product Dimensions Width: 9.24", Height: 6.34", Depth: 2.57"
Hole Pattern 4-Hole AMPS: 1.181" x 1.496"
Material High-strength composite
Input Cable Length 215mm

Electrical

Input Voltage 5.3-5.4VDC
Output Voltage 5VDC
Power Output 500mA

Certifications & Protection

Warranty 3-Year Warranty

Reviews (0)

In The Box

In The Box:

Package Dimensions:

10" x 7" x 3"
