Raymarine  |  SKU: RAY/A102113

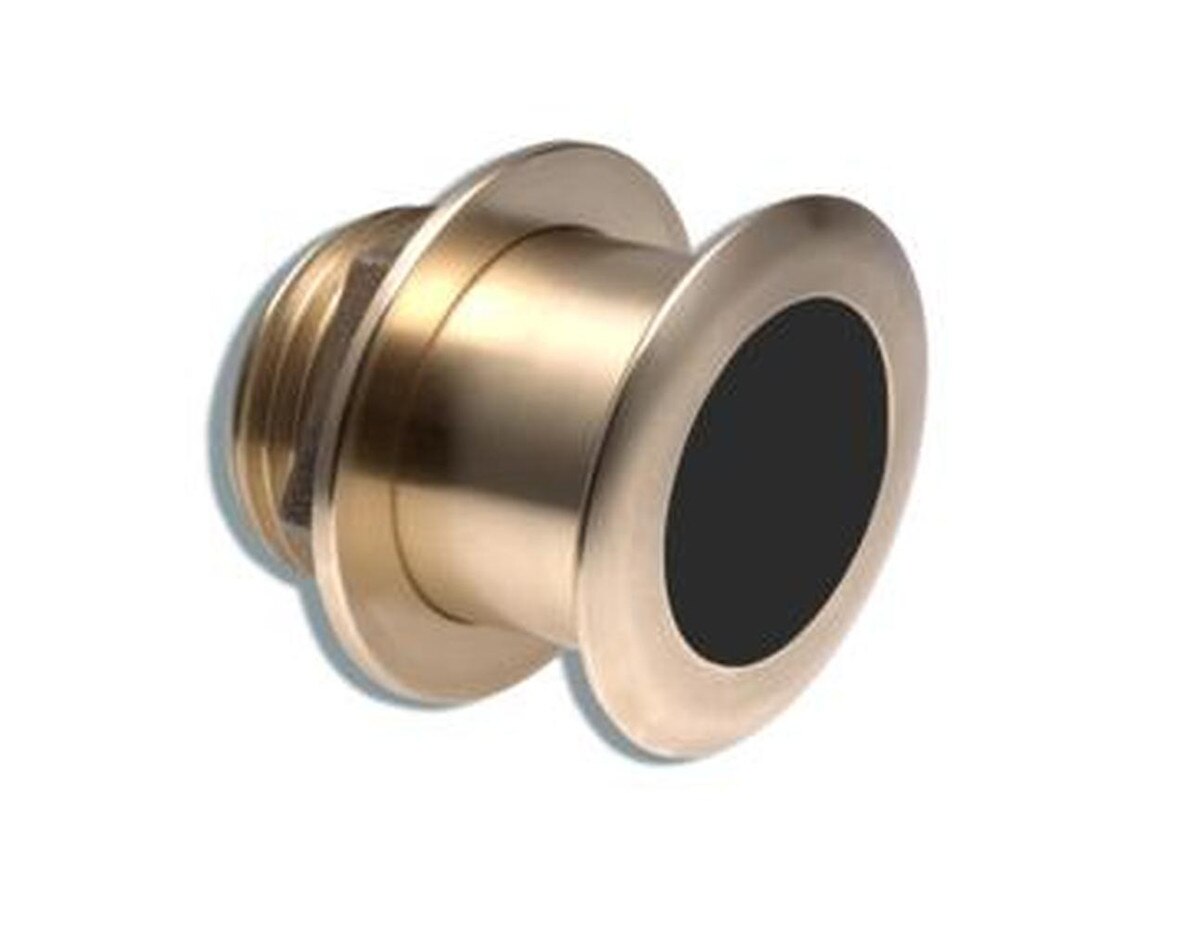

B164 (20º)

$1,27500
Selecting Transducer Tilt

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

  • Compatible with DSM300
  • 1000 Watts
  • Depth & Temperature
  • Dual Frequency (50/200 kHz)
  • 20 Degree Tilt - Fits vessels with hull deadrise of 16 to 24 degrees.
12.0 lb

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Product Series
    B164 / SS164
  • Model
    A102113
  • Sonar
    Power: 1000 W (1kW)
    Frequency: 50/200 kHz
    Beamwidth: 22°x20°/6°x6°
    Max Depth: 1800'
    Temperature: Yes
  • Mounting
    Type: Tilted Element Thru-Hull
    Hole Size: 95mm or 3-3/4"
  • Physical
    Usable Shaft Length: 2.18" (55 mm)
    Weight: 6 lbs (2.7 kg)
  • Cable Length (Ft)
    39
