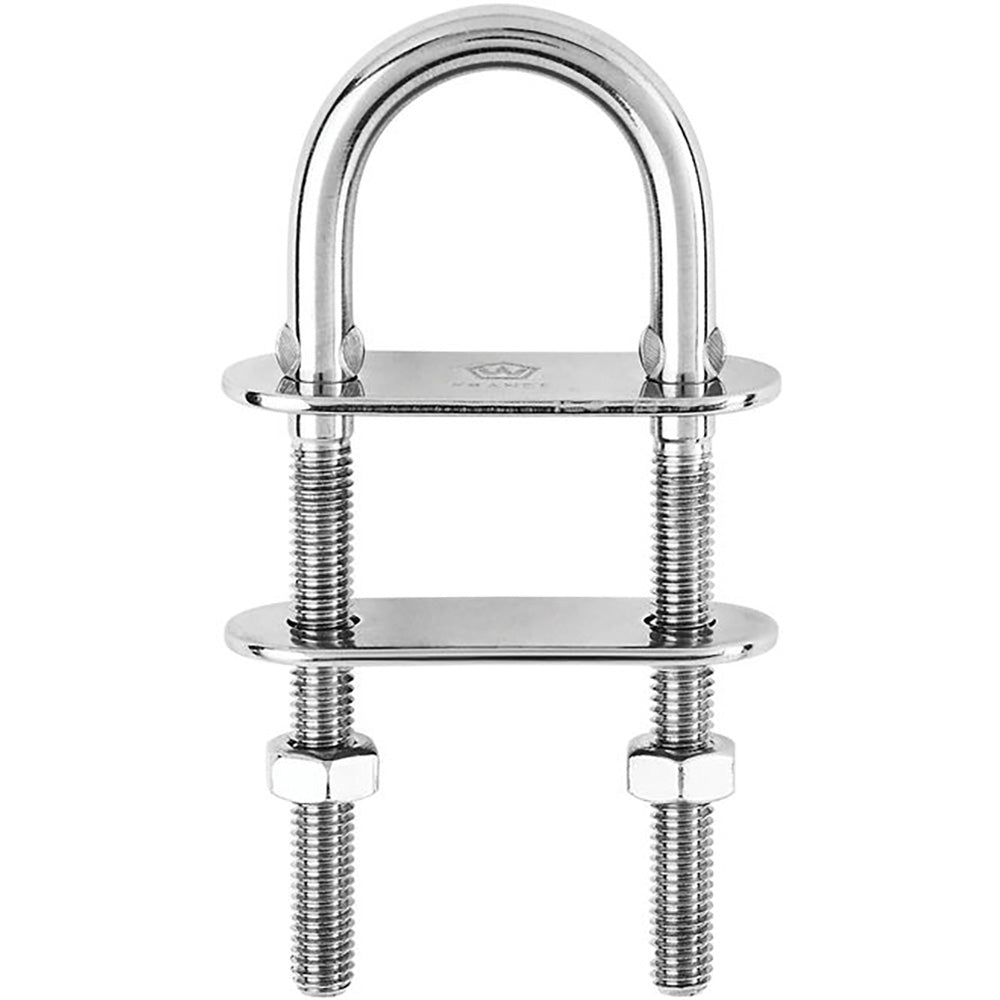

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 18 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications
Specifications
Identification
| MPN | 6524W |
|---|---|
| Barcode | 3587790065244 |

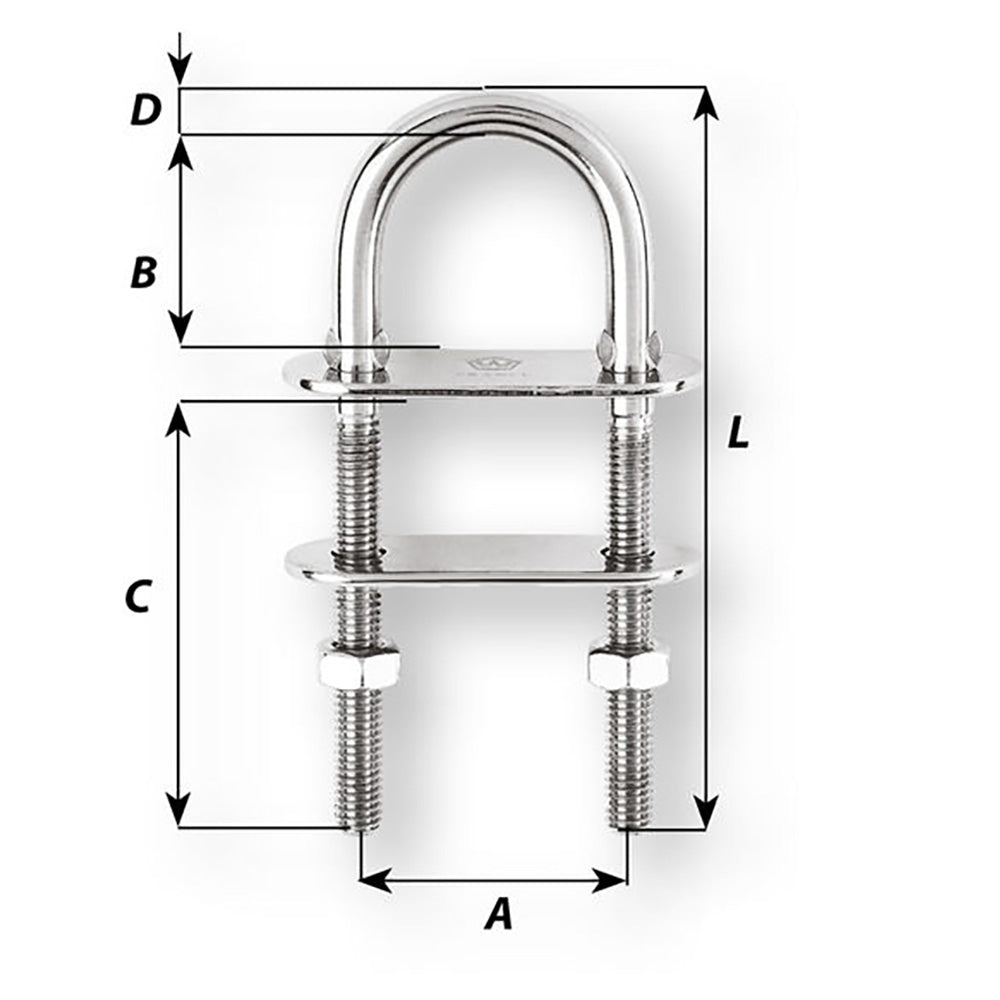

Dimensions:
| A | (inch) 1 27/64" / (mm) 36 |
|---|---|
| B | (inch) 1 3/16" / (mm) 30 |
| C | (inch) 2 23/64" / (mm) 60 |
| D diameter | (inch) 5/16" / (mm) 8 |
| Length | (inch) 3 15/16" / (mm) 100 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
